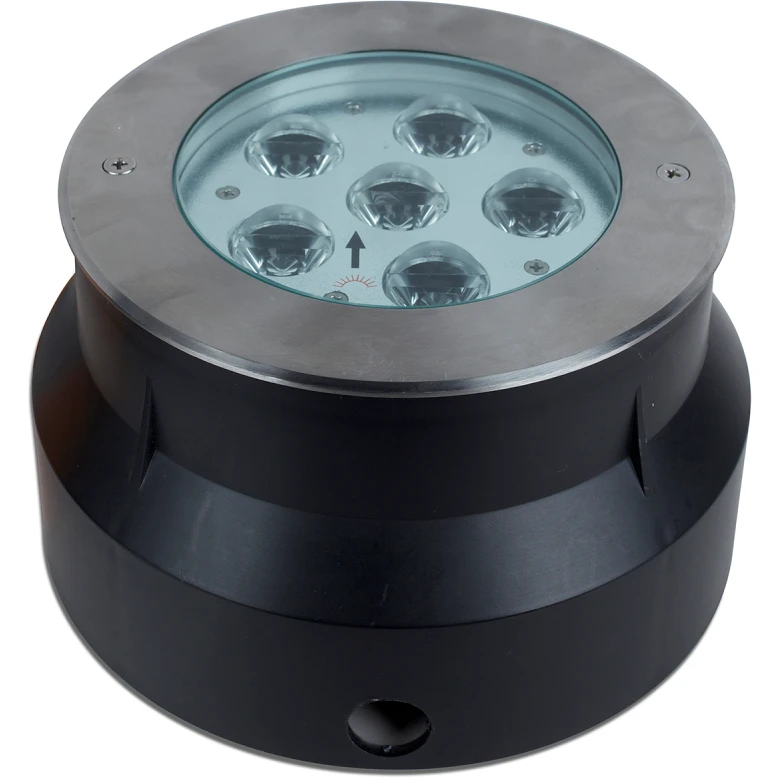

Groundlight Asymmetric T Connector 6 x 3W Warm White

Description

Technical Specifications  Technical Specifications In-ground luminaire Conductor cross section – mm² Degree of protection (IP rating) IP67 Recess diameter 196 mm Number of poles – Height/depth 121 mm Length – mm Recess length 196 mm Recess width – mm Outer diameter 164 mm Width – mm Rated luminous flux acc. IEC 62722-2-1 – lm Power factor 0.9 Rated life time L70/B50 at 25 °C 30000 h Recess height/depth – mm Maximum system power 12.3 W Number of lamps – Maximum load – kg Nominal voltage 220 – 240 V Dimming DSI No Dimming manufacturer’s proprietary system No Dimming touch and dim No Dimming sine wave reduction No Dimming with push-button No Colour temperature 3000 – 3000 K Lamp power – – – W Light source included No Dimming DMX No Dimming DALI No Dimming leading edge No Dimming 0-10 V No Control gear included No Dimming Zigbee No Dimming RF No No dimming function Yes Dimming LineSwitch No Dimming trailing edge No Dimming mains voltage modulation No Dimming 1-10 V No Dimming programmable No Adjustable No Electrical connection with connector system No Drive-over No Dimming potentiometer (integrated) No · Technical Data Sheet – Click to Download
