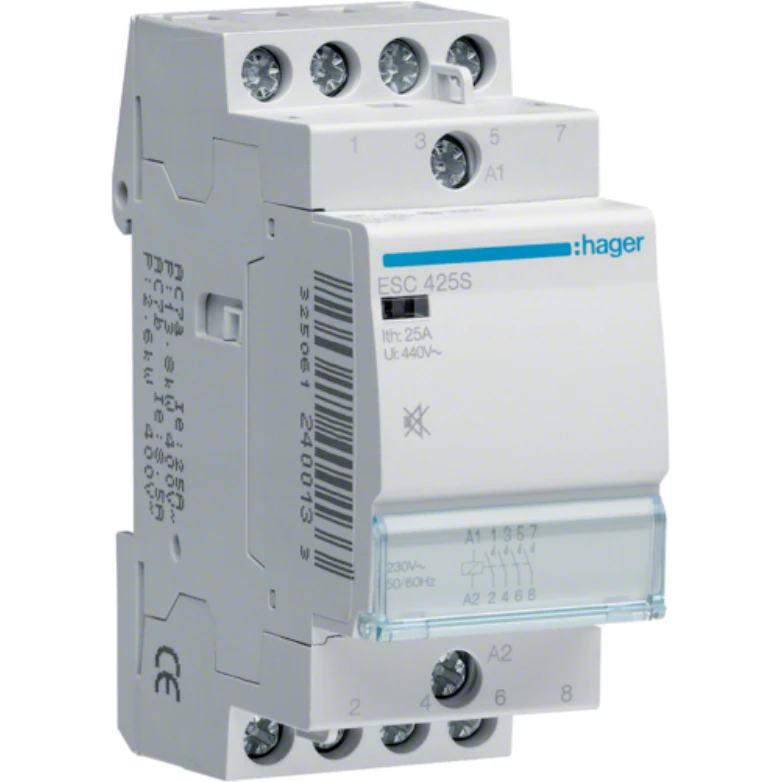

Hager Contactor Humfree 4 Normally Open 25A 230V

Brand: HagerProduct code: ESC425SGo Magpie Ref: 5060062456428

Hager Low Noise Contactor with screw connection. The contactor ratings are for AC1 loads only – if the load differs from AC1 the contactor may need de-rating. The choice of contactor depends upon a number of parameters that is nature of the supply, power it is switching, characteristics of the load, control voltage required and the number of operations. · · · 25 Amp · · 4 Normally Open Contacts · · 230V 50/60Hz · · 2 Module · · The use of LZ060 (heat dissipation inserts) between all contactors installed or between contactors and adjacent devices is required. · · Contactors will accept auxiliary, ESC080 contact · · Connection Capacity: Rigid conductor 10mm, Flexible conductor 6mm

£150.64inc VAT£125.53 ex VAT
In stock — 12 available
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating AC Type of electrical connection of main circuit Screw connection Rated operation power at AC-3, 400 V 2.6 kW Number of main contacts as normally open contact 4 Rated operation current Ie at AC-1, 400 V 25 A Number of auxiliary contacts as normally open contact 0 Number of normally closed contacts as main contact 0 Rated operation current Ie at AC-3, 400 V 8.5 A Rated control supply voltage at DC 0 – 0 V Number of auxiliary contacts as normally closed contact 0 Rated control supply voltage at AC 50 Hz 230 – 230 V Rated control supply voltage at AC 60 Hz 230 – 230 V Modular version Yes
