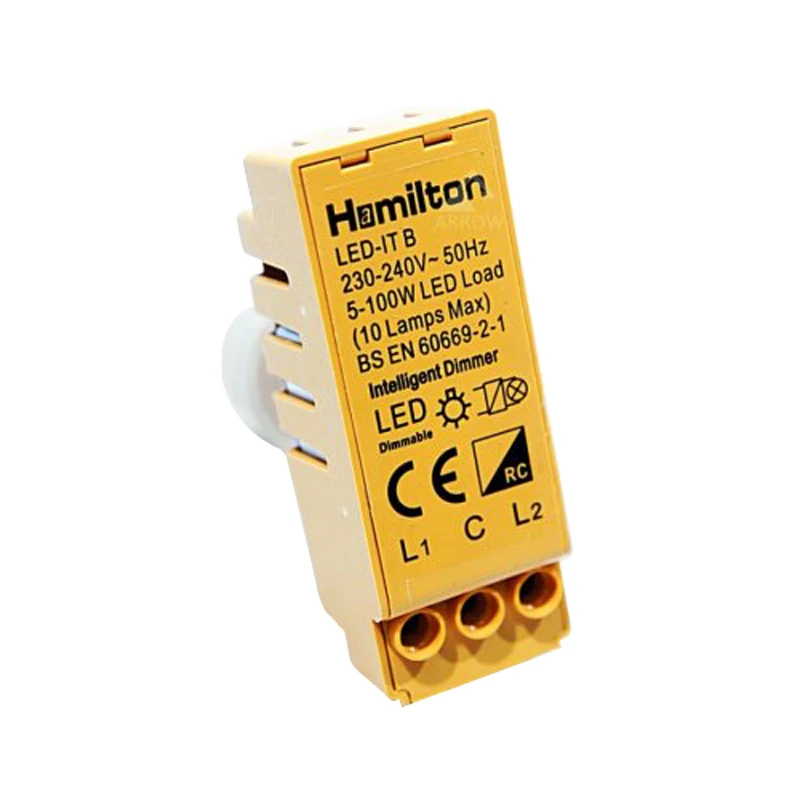

Hamilton Dimmer Switch LED 2Way Push On/Off 5-100W Rotary

Hamilton 2-Way LED Dimmer designed to be compatible with a wider range of mains dimmable lamp and luminaire brands. It is the perfect retrofit replacement when used with a standard 2-way Rocker Switch – ideal for applications such as larger rooms with two entrances/exits or on stairway lighting. Its available with pre-set to ‘Trailing-Edge’ as standard but the dimming mode can be manually set for ‘Leading-Edge’ control when necessary and allows the minimum setting to be adjusted. If the circuit contains a mixture of both Trailing and Leading-Edge LEDs, the dimming mode can be fine-tuned to deliver a smooth operation and maximum performance. Face plate muct be earthed. Internal Use Only. Trailing Edge & Leading Edge Dimmer. · · · Generic Size: Module · · Switched Poles: Single · · Wattage: 5-100W · · Current Rating: 0.4 Amp · · Voltage: 230V-240V · · Maximum Load 5-100W · · Mains Frequency: 50Hz · · IP Rating: IP2XD · · Standard/Approval: BS EN 60669-2-1 · · Insert Finish: White – No Plate Colour
