Hamilton Socket Power UnSwitched Modular German 16A 50X50mm White White Insert

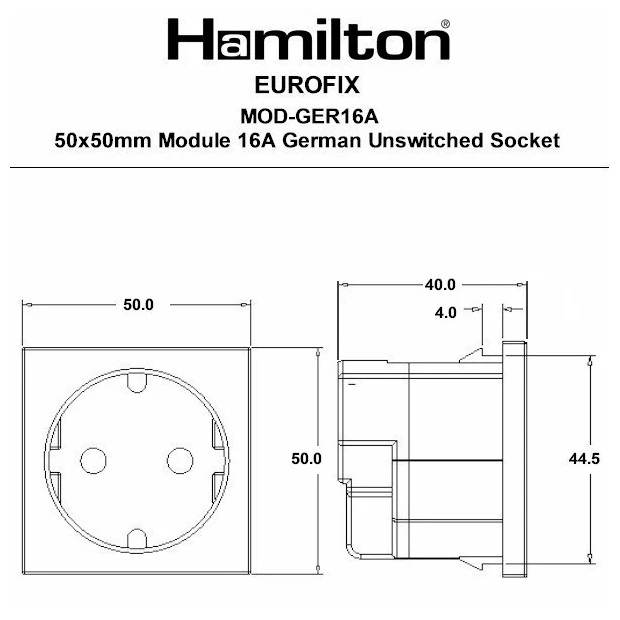

Face plate must be earthed. Internal Use Only. Note Mains operated and extra low voltage products must not be installed in the same face plate aperture. When installing within the same back box a suitable phase barriers MUST be used to separate the two voltages. See BS 7671 Wiring regulations for further details. Shuttered:Yes. · · · Module Dimensions H: 50mm W: 50mm D: 40mm · · Generic Size: Module · · Switched Poles: None · · Current Rating: 10/16 Amp · · Voltage: 220/250V AC · · Maximum Load 16 Amp · · Mains Frequency: 50Hz · · IP Rating: IP2XD · · Standard/Approval: BS EN ISO 5733 + IEC 60884-1 · · Insert Colour: White
