Honeywell Digital Box Connect For 12 x Lumin+5 Detec Socket+5 Input Socket
£387.06 Incl. VAT

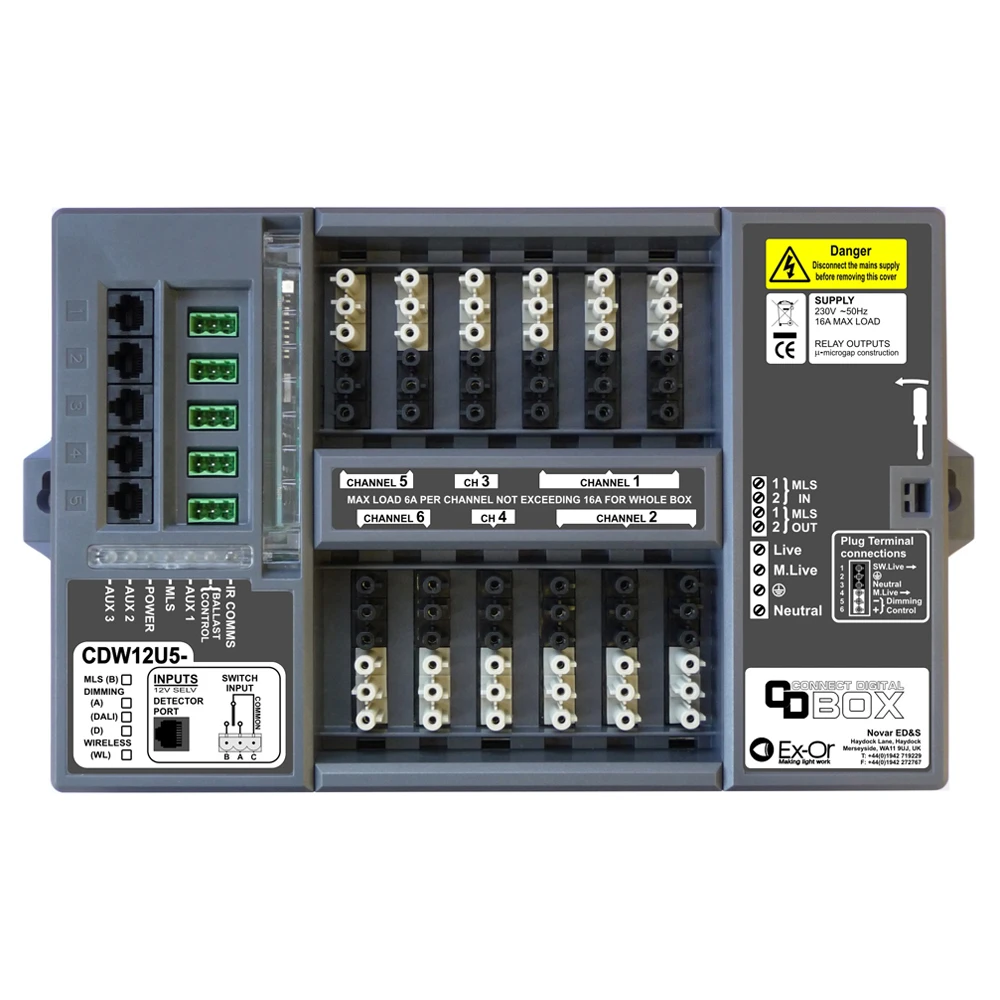

Ex-Or Connect Digital LCM providing connections for up to twelve luminaires, up to five detectors and up to five switch inputs. The unit is designed to simplify installation whilst providing an intelligent managed lighting system, including provision for emergency lighting. The box should be attached to a suitable smooth, flat surface, using the two end-located fixing points. The box must not be distorted when fixing. If the box is to be mounted on an uneven surface it may be necessary to use packing pieces or self-adhesive stand-off feet. When the box is to be rod-fixed, the fixing should be substantial enough to withstand the action of plugging and unplugging the connectors. · · · Designed to simplify installation providing an intelligent managed lighting system · · Suitable smooth, flat surface, using the two end-located fixing points · · Provides connections for up to twelve luminaires
Description
Technical Specifications Technical Specifications Controller for luminaires Housing Plastic housing Model Dynamic Width 205 mm Height 50 mm Length 315 mm Maximum output current 16 A Input voltage 230 – 230 V
