JCC a Leviton Company Batten LED Single Emergency 37W 4000K 4500lm IP20 5Ft

£105.34 Incl. VAT

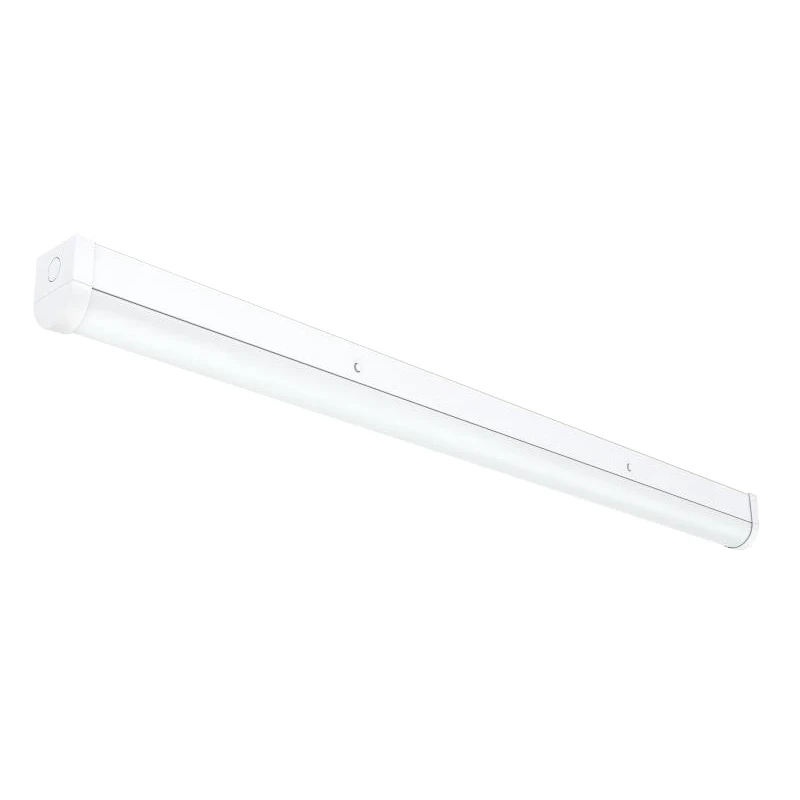

JCC Skypack LED Batten with rear and end conduit entry points. It features intelligent press release buttons for simple installation. Manufactured according to the BS EN 60598:2015 standards. · · · Press fit terminals, loop in loop out · · Rear and end conduit entry points · · Ultra efficient, up to 120 lumens per circuit Watt · · Intelligent press release buttons for simple installation · · Emergency version · · Microwave dimmable and on/off options

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: JC71743EM Categories: , , Brand: Product Code: 2501091677

Description

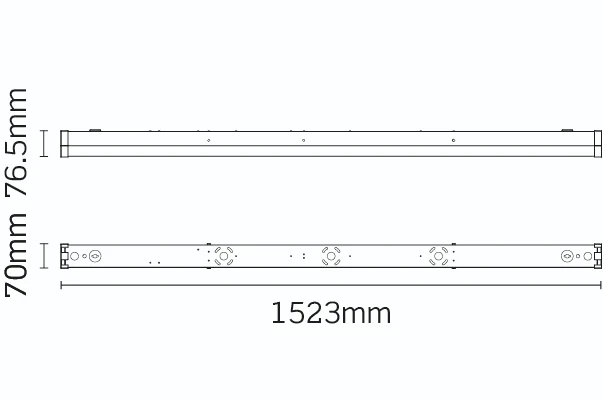

Technical Specifications  Technical Specifications Batten luminaire Length 1523 mm Width 70 mm Number of poles 4 Height/depth 76.5 mm Maximum system power 39 W Number of lamps 1 Nominal voltage 220 – 240 V Power factor 0.9 Rated luminous flux according to IEC 62722-2- 1 4440 – 4440 lm Colour temperature 4000 – 4000 K Dimming 0-10 V No Light source included Yes Suitable for emergency lighting Yes With movement sensor No Electrical connection with connector system No Luminaire may be covered with thermally insulating material No Dimming leading edge No Dimming DMX No Dimming manufacturer’s proprietary system No Dimming sine wave reduction No Dimming LineSwitch No Dimming touch and dim No Dimming RF No Dimming DSI No Dimming trailing edge No Dimming DALI No Dimming Zigbee No Dimming with push-button No Control gear included Yes Dimming mains voltage modulation No Dimming programmable No Dimming 1-10 V No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709608 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709609 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/1709610
