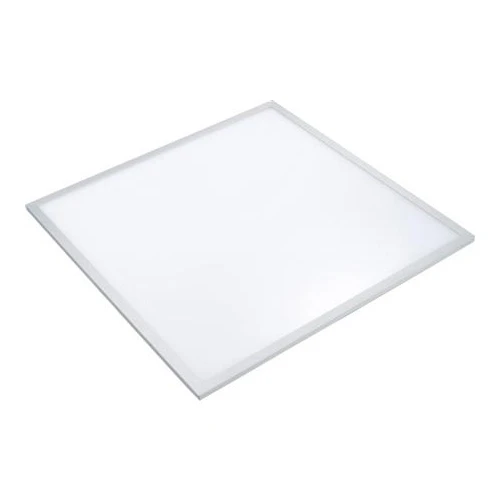

Robus LED Panel 3000K White IP20 40W 600 x 600mm

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Width 595 mm Conductor cross section – mm² Outer diameter – mm Length 595 mm Power factor 0.97 Rated life time L70/B50 at 25 °C 50000 h Number of lamps – Unified Glare Rating (UGR) 20.9 Recess length – mm Number of poles – Recess height/depth – mm Recess width – mm Recess diameter – mm Maximum system power 38.1 W Height/depth 10 mm Lamp power – – – W Colour temperature 3000 – 3000 K Nominal voltage 220 – 240 V Nominal current 170 – 170 mA Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Light source included Yes Suitable for suspended mounting Yes With light sensor No Suitable for ceiling mounting No With movement sensor No Fit for workplace acc. EN 12464-1 No Luminaire may be covered with thermally insulating material No With air slots No Suitable for recessed mounting No Control gear included Yes Dimming mains voltage modulation No Suitable for surface mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for light line configuration No Dimming potentiometer (integrated) No Suitable for emergency lighting No Dimming programmable No Dimming DALI No Dimming 1-10 V No Bluetooth operated No Dimming touch and dim No Dimming Zigbee No Dimming DSI No Dimming 0-10 V No Dimming trailing edge No Dimming RF No Dimming manufacturer’s proprietary system No Dimming DMX No Dimming with push-button No Dimming leading edge No · Technical Data Sheet – Click to Download
