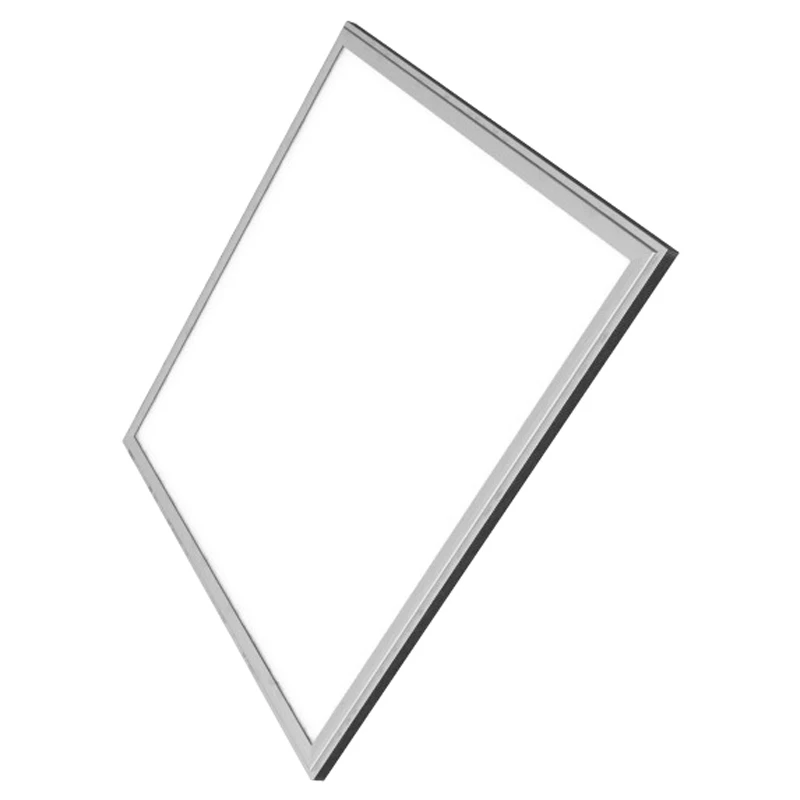

Robus LED Panel Atmos IP20 40W 600 x 600mm White 5000K Driver+1m Flex

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Width 595 mm Conductor cross section – mm² Height/depth 10 mm Outer diameter – mm Length 595 mm Maximum system power 37.7 W Recess height/depth – mm Rated life time L70/B50 at 25 °C 50000 h Power factor 0.97 Recess length – mm Unified Glare Rating (UGR) 21.2 Number of poles – Recess diameter – mm Number of lamps – Recess width – mm Lamp power – – – W Colour temperature 5000 – 5000 K Nominal voltage 220 – 240 V Nominal current 170 – 170 mA Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Suitable for suspended mounting Yes Light source included Yes With movement sensor No With light sensor No Suitable for surface mounting No Dimming with push-button No Dimming manufacturer’s proprietary system No Dimming leading edge No Dimming DSI No Dimming DMX No Dimming 0-10 V No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for emergency lighting No Control gear included Yes With air slots No Suitable for recessed mounting No Suitable for light line configuration No Suitable for ceiling mounting No Fit for workplace acc. EN 12464-1 No Dimming 1-10 V No Dimming mains voltage modulation No Bluetooth operated No Luminaire may be covered with thermally insulating material No Dimming potentiometer (integrated) No Dimming touch and dim No Dimming programmable No Dimming DALI No Dimming RF No Dimming trailing edge No Dimming Zigbee No · Technical Data Sheet – Click to Download
