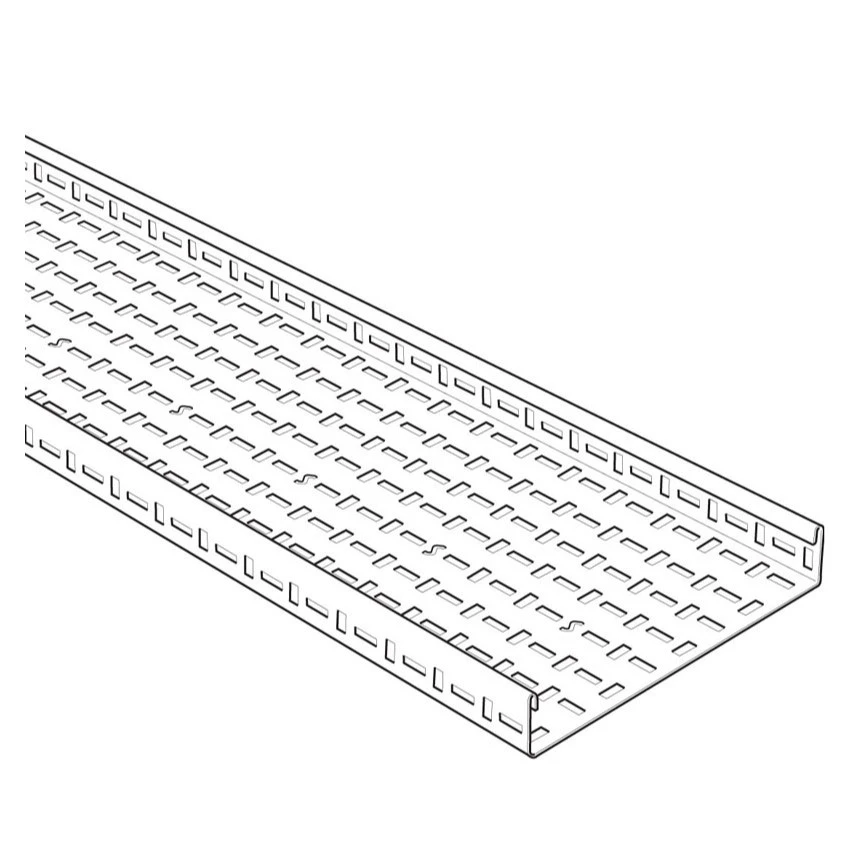

Legrand Cable Tray Heavy Duty 75mm x 3m Hot Dipped Galvanised

Technical Specifications  Technical Specifications Cable tray Colour Grey Material Steel Surface protection Hot dip galvanized Model Coupler not included Width 75 mm RAL number – Useful cross section 3750 mm² Height 50 mm Material thickness 0.9 mm Weight – kg/m Safe working load according to IEC 61537 with support spacing 4.0 m – N/m Length 3000 mm Safe working load according to IEC 61537 with support spacing 5.0 m – N/m Safe working load according to IEC 61537 with support spacing 2.5 m – N/m Safe working load according to IEC 61537 with support spacing 3.0 m – N/m Working length – mm Safe working load according to IEC 61537 with support spacing 1.5 m – N/m Safe working load according to IEC 61537 with support spacing 2.0 m – N/m Safe working load according to IEC 61537 with support spacing 0.5 m – N/m Safe working load according to IEC 61537 with support spacing 1.0 m – N/m Safe working load according to IEC 61537 with support spacing 6.0 m – N/m Safe working load according to IEC 61537 with support spacing 9.0 m – N/m Safe working load according to IEC 61537 with support spacing 7.0 m – N/m Safe working load according to IEC 61537 with support spacing 8.0 m – N/m Safe working load according to IEC 61537 with support spacing 11.0 m – N/m Safe working load according to IEC 61537 with support spacing 12.0 m – N/m Safe working load according to IEC 61537 with support spacing 10.0 m – N/m Support spacing range – – – m Working temperature -20 – 120 °C Mounting perforation in base Yes NATO-mounting holes No With cover No Side wall perforation Yes Suitable for circuit integrity No · Technical Data Sheet – Click to Download
