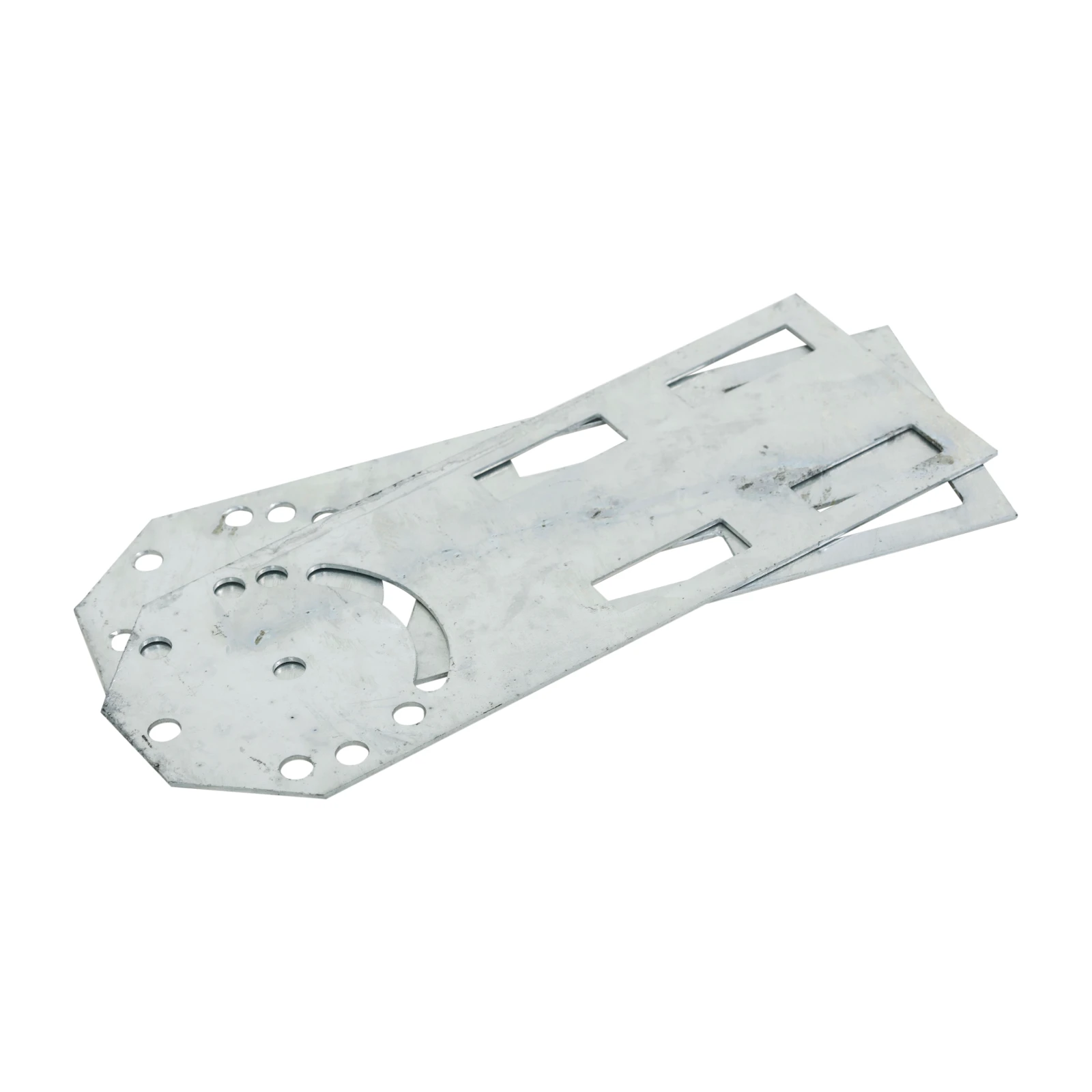

Legrand Ladder Vertical Hinge Set Medium Duty + 8Xm10 6Xm6 Nut&Bolt (2X Pair)
Legrand Ladder Vertical Hinge Set Medium Duty + 8Xm10 6Xm6 Nut&Bolt (2X Pair)

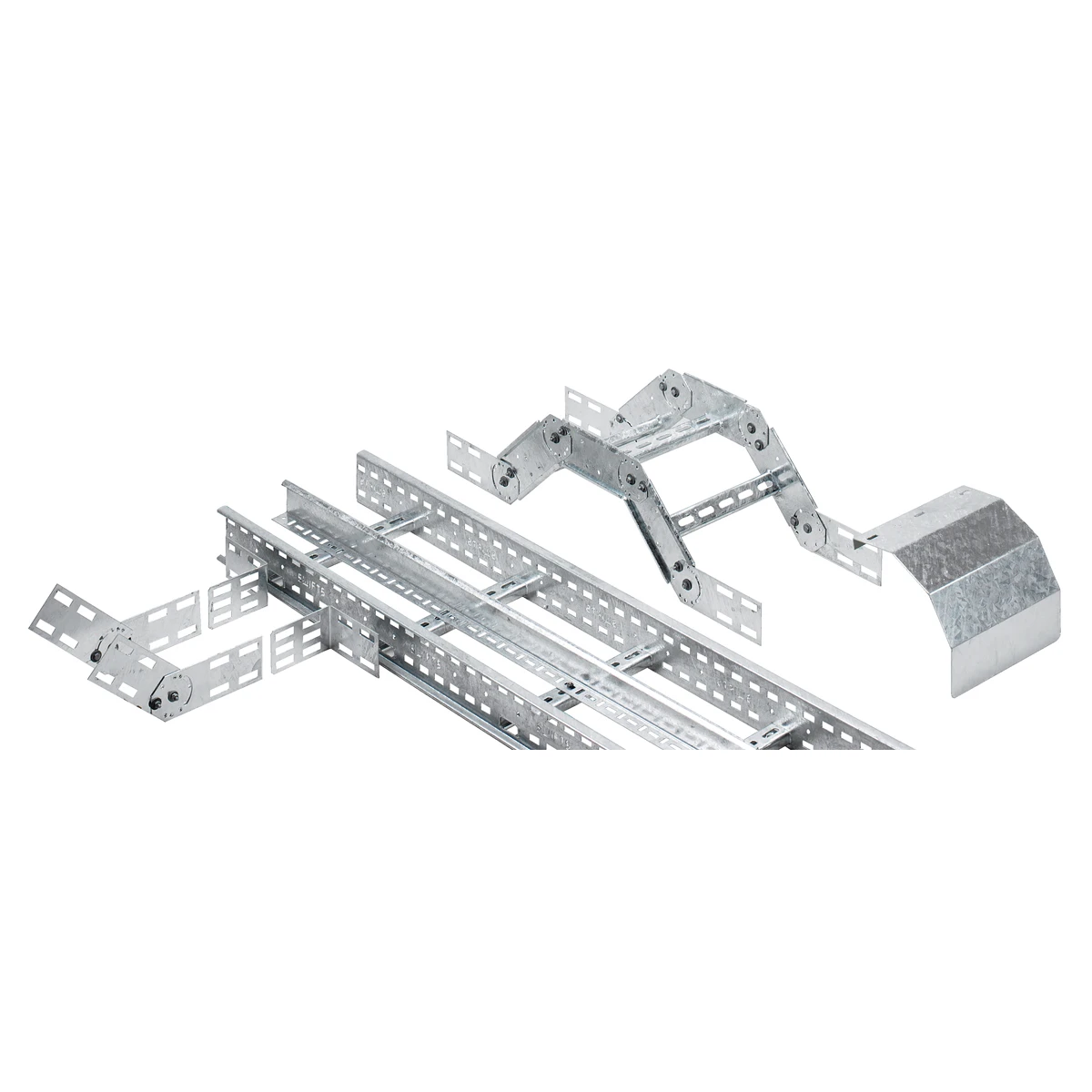

Legrand Ladder Vertical Hinge Set Medium Duty + 8Xm10 6Xm6 Nut&Bolt (2X Pair) - Image 2
Legrand Ladder Vertical Hinge Set Medium Duty + 8Xm10 6Xm6 Nut&Bolt (2X Pair) - Image 3

Legrand Ladder Vertical Hinge Set Medium Duty + 8Xm10 6Xm6 Nut&Bolt (2X Pair)

£83.71 Incl. VAT

General purpose topaz vertical hinged connector complete with a hot dip galvanised finish. Suitable for use with cable ladders. · · · Easy to install or remove when necessary · · Four plate connector · · Use with straight lengths to form risers or solve minor misalignment problems on site · · When used with tee bracket, vertical hinged connectors can offset tee branch · · Type of connection: Screw connector · · Suitable for cable ladder: Yes · · Suitable for cable support system width: 150-900 mm · · Suitable for cable support system height: 100-100 mm · · Surface protection: Hot-dip galvanized · · Operating / setting temperature: -20-120 °C

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZVG Categories: , , , Brand: Product Code: 2500045216

Description

Technical Specifications  Technical Specifications Connector for cable tray system Type of connection Screw connector Material Steel Model Straight joint Surface protection Hot dip galvanized RAL number – Length 344 mm Working temperature -20 – 120 °C Suitable for wire cable tray/basket wire 0 – 0 mm Suitable for cable management system height 100 – 100 mm Suitable for cable management system width 150 – 900 mm Hinged joint vertical Yes Suitable for wire cable tray/basket No Hinged joint horizontal No Stainless steel, pickled No Suitable for cable ladder Yes Suitable for cable tray No Suitable for circuit integrity No · Technical Data Sheet – Click to Download
