Legrand Hanger Overhead 100mm Hot Dipped Galvanised for Cable Tray

SKU: OH100GGo Magpie ID: 5060062387220

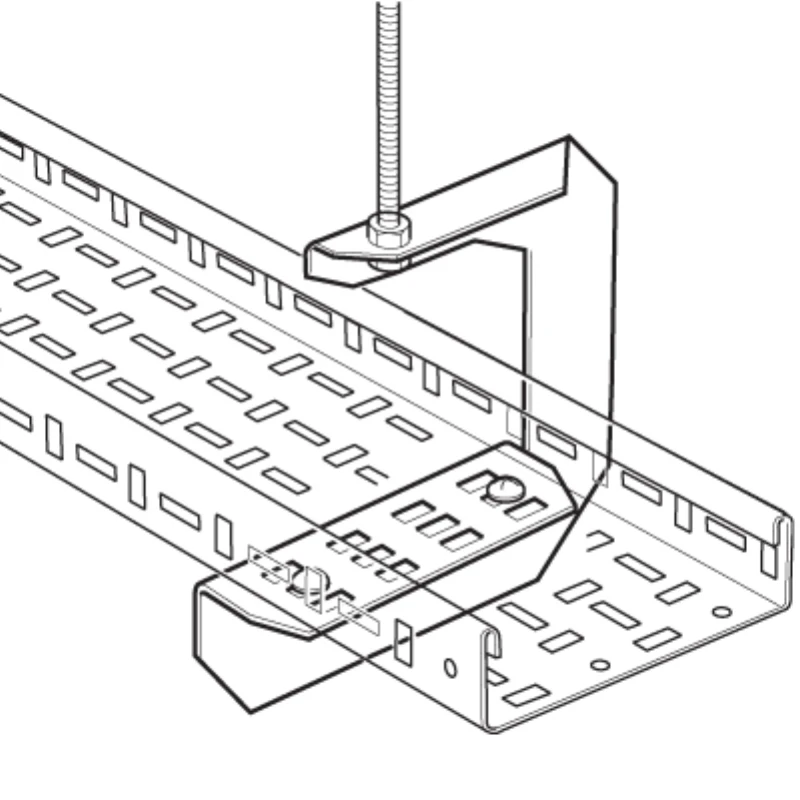

OH100G is an Overhead Hanger suitable for supporting all cable tray of 100mm wide. It enables tray to be supported from a single M10 threaded rod giving easy access for laying cables from one side of the tray. · · · Supplied singly without fasteners · · Maximum load: 50kg · · In accordance with BS EN ISO 1461 : 2009

£9.55inc VAT£7.96 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Mounting bracket for cable tray systems Colour Grey Tray mounting Screw fix Material Steel Model Mounting bracket (C-shape) Surface protection Hot dip galvanized Load bearing capacity 490.5 N RAL number – Working temperature – – – °C Suitable for cable management system width 100 – 100 mm Suitable for cable tray Yes Suitable for cable management system height – – – mm Suitable for cable ladder No Suitable for circuit integrity No Suitable for wire cable tray/basket No · Technical Data Sheet – Click to Download
