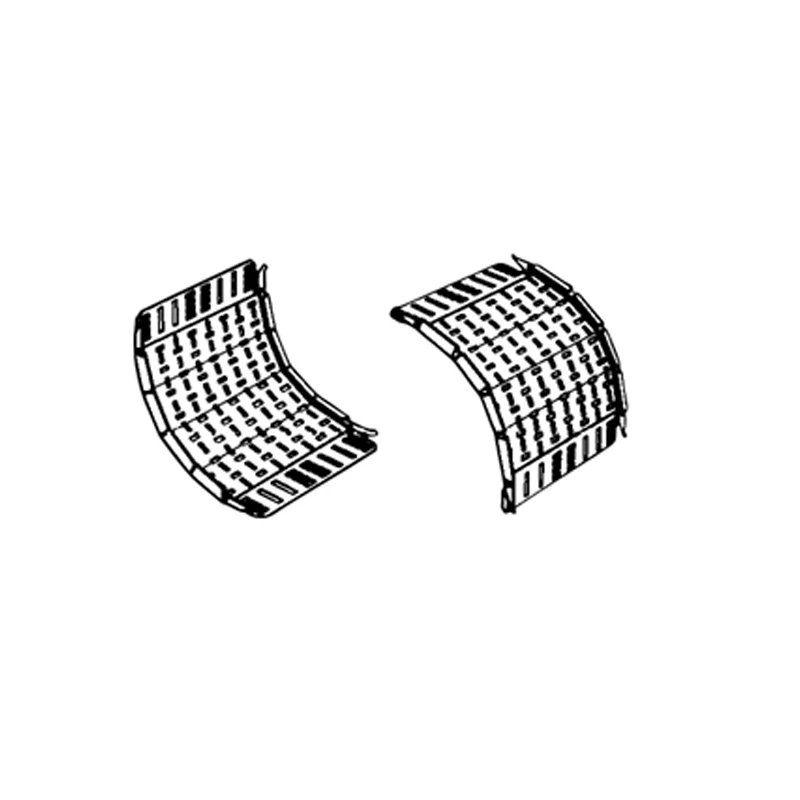

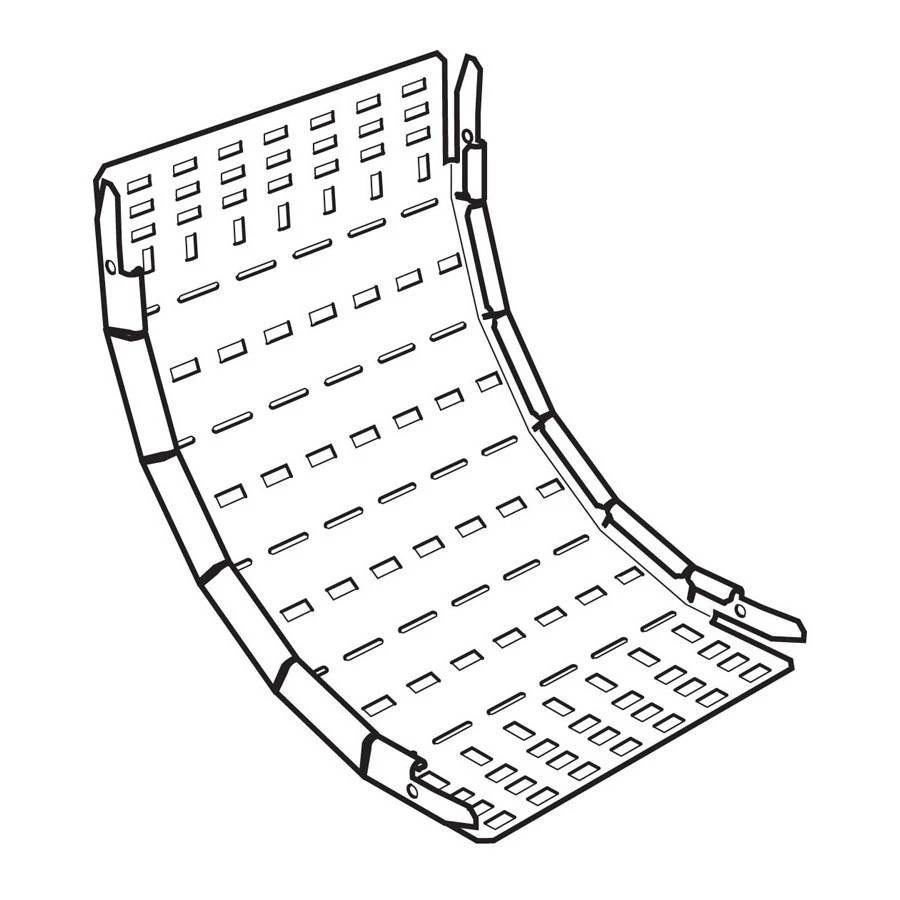

Legrand Riser 90° Internal 75mm Hot Dipped Galvanised for Cable Tray
Legrand Riser 90° Internal 75mm Hot Dipped Galvanised for Cable Tray
Legrand Riser 90° Internal 75mm Hot Dipped Galvanised for Cable Tray - Image 2
Legrand Riser 90° Internal 75mm Hot Dipped Galvanised for Cable Tray - Image 3

Legrand Riser 90° Internal 75mm Hot Dipped Galvanised for Cable Tray

£17.92 Incl. VAT

The distinctive slot pattern on Swifts cable tray systems provides installers with total flexibility for the positioning of nuts and bolts, cable ties and all ancillary items. Available in three types, from light through to heavy duty, each system is supported by a fully integrated range of time saving fixings and fittings. Quick-fit couplers available for straight lengths on MRF and SRF tray systems. Unique adjustable bends. All tray fittings have an integral coupler system to save time and money. · · · Material: Steel · · Width: 75mm · · Angle: 90° · · Finish: Hot Dip Galvanised

15 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MRFIR75G Categories: , , Brand: Part Number: 2500025048

Description

Technical Specifications  Technical Specifications Bend/riser for cable tray Material Steel Change of direction Rising vertically Colour Grey Construction type Rigid bend Model Integrated coupler Inner radius 260 mm Suitable for cable tray width 75 mm RAL number – Material thickness 1.2 mm Surface protection Hot dip galvanized Angle 90° Suitable for cable tray height 25 mm Working temperature -20 – 120 °C Side wall perforation No Mounting perforation in base Yes Stainless steel, pickled No NATO-mounting holes No With cover No Suitable for circuit integrity No · Technical Data Sheet – Click to Download
