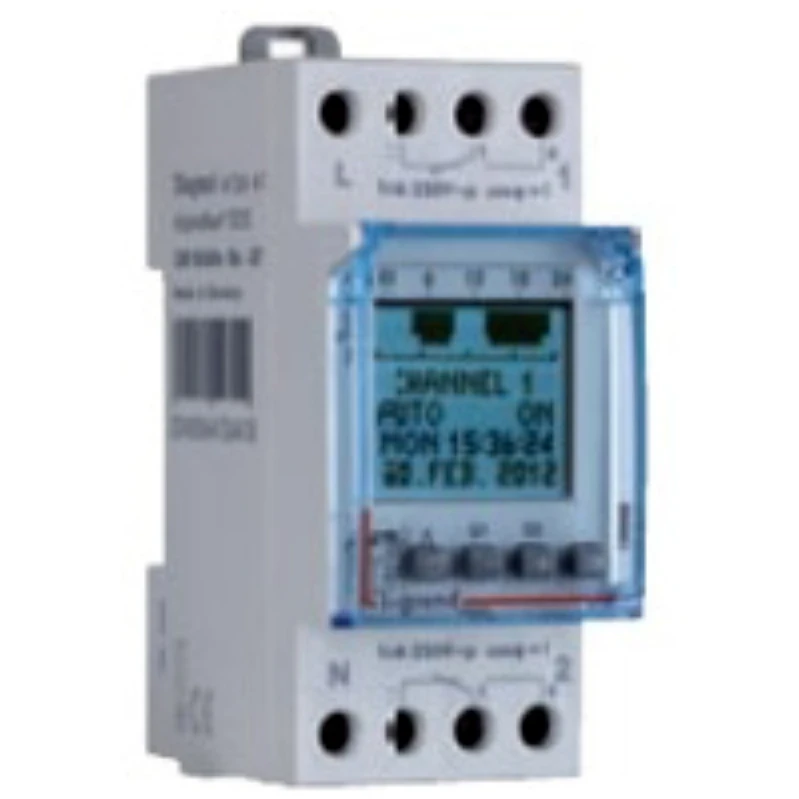

Legrand Time Switch D22 Prog 7 Day 1 Channel 16A 230V Dig Disp

Description

Technical Specifications  Technical Specifications Digital time switch for distribution board Mounting method DIN rail Degree of protection (IP rating) IP20 Voltage type of supply voltage AC Nominal switching current at 250 V AC 16 A Number of contacts – Accuracy per day 0.1 s Height 83 mm Autonomy in years 5 Max. switching power LED – W Contact type Change-over contact (NO/NC) Depth 60 mm Autonomy in hours – Number of memory locations 56 Number of channels 2 Width in number of modular spacings 2 Frequency supply voltage 50 – 60 Hz Width 35.6 mm Quartz controlled Yes Supply voltage 230 – 230 V Automatic switching summer-/winter time Yes Radio-controlled (DCF77) No Weekly program Yes Radio-controlled No Manual operation Yes Annual program Yes Switching preselection Yes GPS (global positioning system) No Potential free switch contact Yes Holiday program Yes Astro/solar program Yes External pushbutton input No Text guidance in display Yes Memory card included No Mains synchronous Yes External programming Yes Hour meter Yes Impulse program No Cycle program Yes 60 min. program No Random program Yes 24 h program Yes
