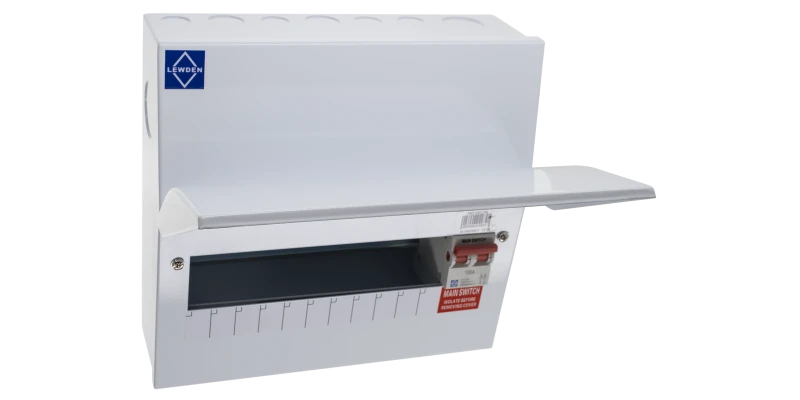

Lewden 266x443x106mm 100A 19+1 Modules PRO Main Switch Consumer Unit With Round Knockouts
£102.70 Incl. VAT
The 266x443x106mm 100A 19+1 Modules PRO Main Switch Consumer Unit With Round Knockouts is a robust and versatile enclosure that is fully rated to AC-23A category. This allows for safe operation even with highly inductive loads, such as motors. The enclosure is also padlockable and interlocked, providing an added level of safety. The powder coated mild steel construction ensures durability and a long service life. The large space inside the enclosure provides plenty of room for comfortable wiring. · · · Supplied complete with main switch. · · One extra module for installation of SPD. · · Extra wiring space. · · Selection of Round knockouts.
4 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board equipped Degree of protection (IP rating) IP2XC Width 443 mm Main switch rated current 100 A Number of phases 1 Housing material Steel With transparent cover No Over voltage-/surge protection No With metering No Extension possible No With socket outlet No Height 266 mm Lockable No Depth 106 mm With bell transformer No Cooker group suitable as power current group No Suitable for data No Protection main switch Yes Protection incoming RCD No Protection high integrity No Protection split load No Protection dual RCD No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
