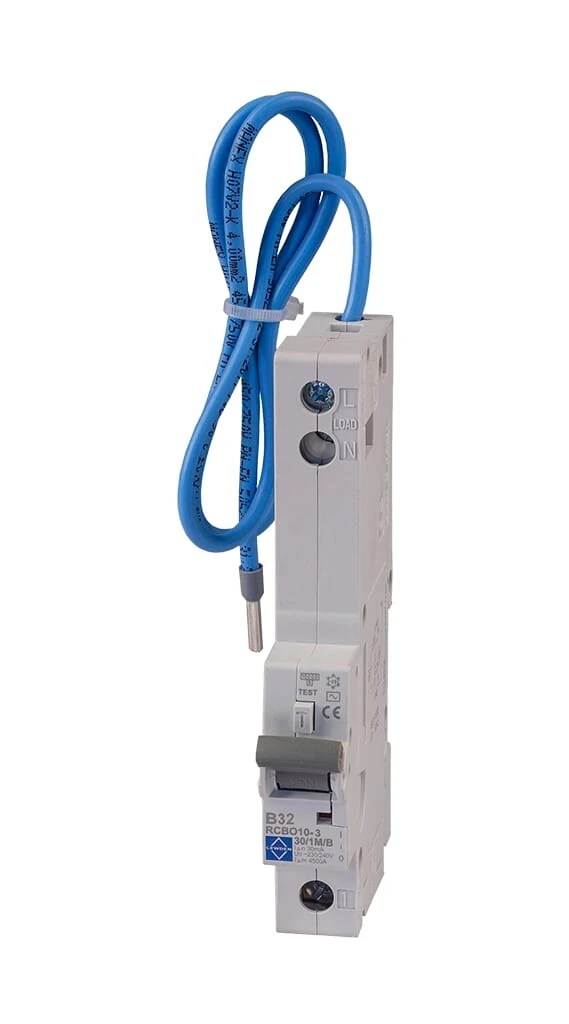

Lewden 32A Trip Curve B RCD Class A Residual Current 30mA 10kA RCBO

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 32 A Recess depth 761 mm Rated voltage 230 V Rated short-circuit breaking capacity according to EN 61009 10 kA Rated impulse-withstand voltage (Uimp) – kV Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn according to EN 61009-1 – kA Rated short-circuit breaking capacity IEC 60947-2 – kA Number of protected poles – Pollution degree – Current limiting class – Over voltage category – Number of poles (total) 2 Rated insulation voltage Ui – V Surge current capacity – kA Rated fault current 3 A Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Concurrently switching N-neutral No Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download
