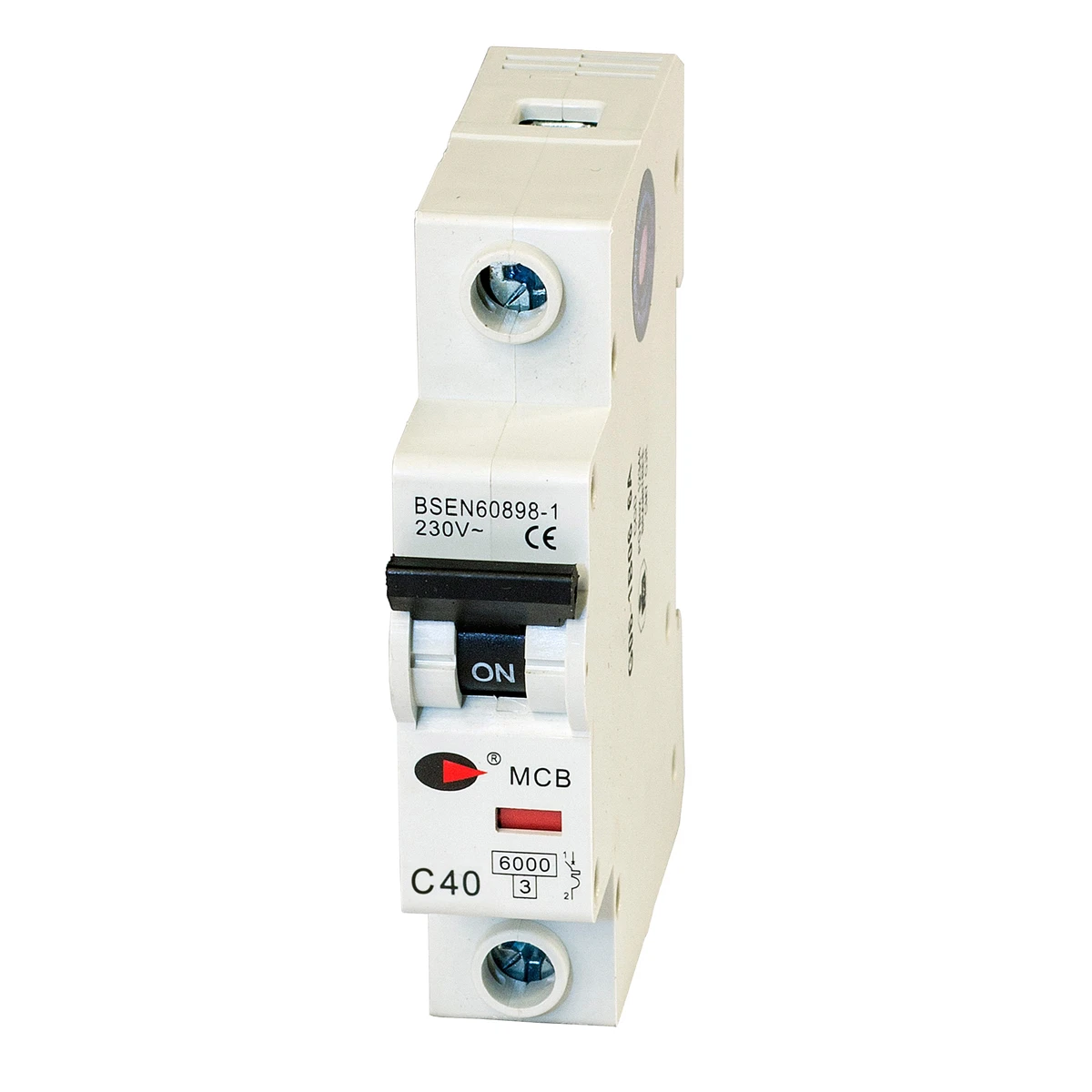

Lewden 40A Single Pole 6kA C Type MCB

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) Angular Rated current 40 A Recess depth 75.5 mm Rated voltage 230 V Number of protected poles – Rated insulation voltage Ui – V Current limiting class – Over voltage category – Pollution degree – Width in number of modular spacings – Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V – kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V – kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V – kA Rated impulse-withstand voltage (Uimp) – kV Frequency 50 – 60 Hz Connectable conductor cross section solid-core – mm² Ambient temperature during operating – °C Connectable conductor cross section multi-wired – mm² Concurrently switching N-neutral No Explosion-proof No Flush-mounted installation No Additional equipment possible No
