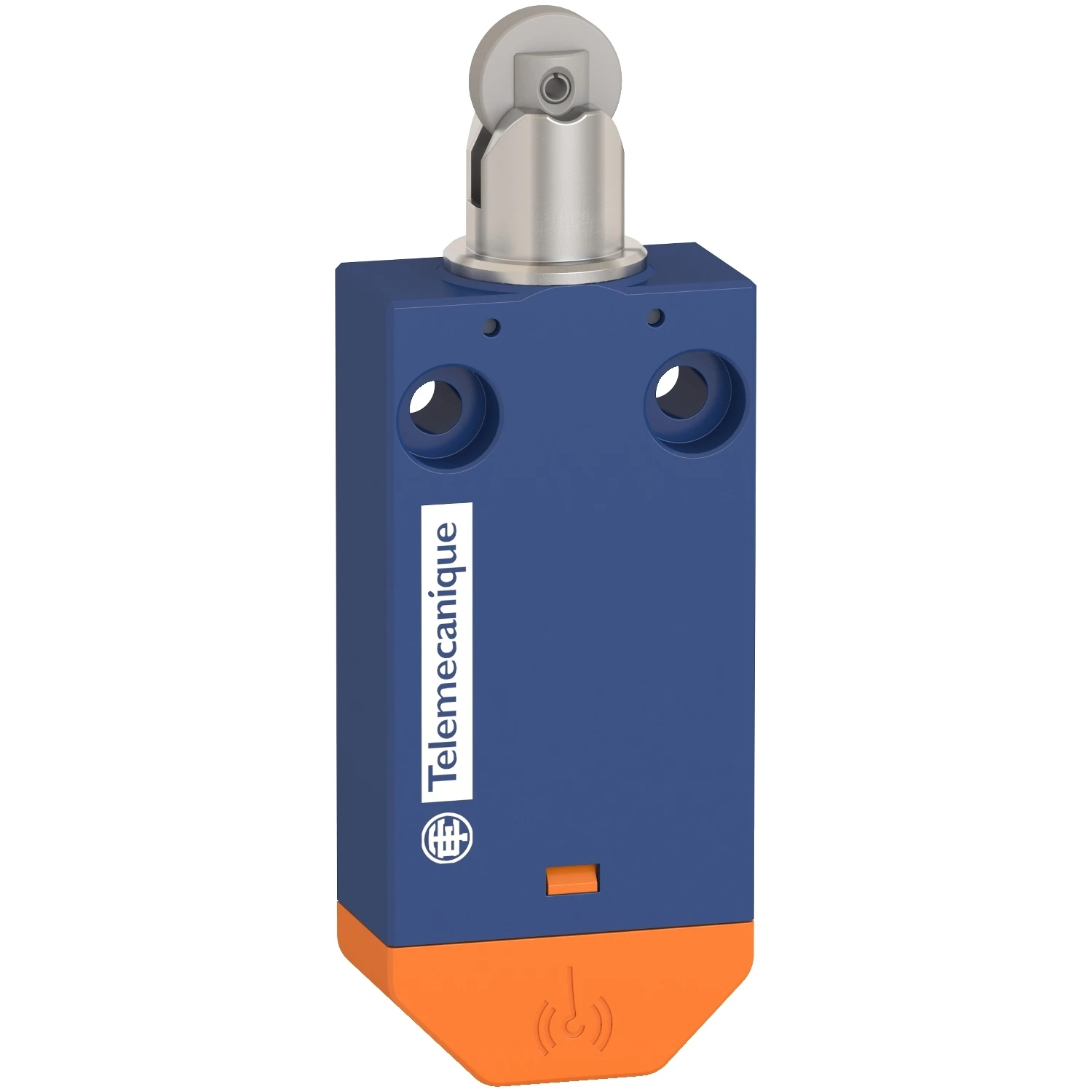

Limit Switch Radio Emitter Steel Roller Plunger
Limit Switch Radio Emitter Steel Roller Plunger
Limit Switch Radio Emitter Steel Roller Plunger - Image 2
Limit Switch Radio Emitter Steel Roller Plunger - Image 3
Limit Switch Radio Emitter Steel Roller Plunger - Image 4

Limit Switch Radio Emitter Steel Roller Plunger

£123.98 Incl. VAT

LIMIT SWITCH TRANSMIT MET ROLLER · · · This wireless and battery-less limit switch is part of the XCMW range, an offer with a miniature design. This range includes transmitters (micro limit switches) and receivers that communicate via 2.4 GHz radio transmission. · · Limit switches are used in all automated installations. They transmit data to the logic processing system regarding presence, absence, passing, positioning and end of travel. · · This miniature limit switch features a steel roller plunger actuator (actuation by 30° cam, lateral approach, 2 directions). · · No wiring is required between the limit switch and the receiver, for a faster installation. · · Its sensing distance reaches 100m in free field, 300m with an external antenna and 25m in industrial environment. · · wall mounting · · IP66 · · IK10 · · Corrosion Free

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCMW102 Categories: , , Brand: Part Number: 2501297426

Description

Technical Specifications  Technical Specifications End switch Interface type None Explosion safety category for dust None Explosion safety category for gas None Housing material Plastic Construction type housing Cuboid Type of control element Plunger Number of contacts as normally open contact 0 Degree of protection (IP rating) IP65 Diameter sensor – mm Number of contacts as normally closed contact 0 Height of sensor 84 mm Length of sensor 16 mm Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at AC-15, 24 V – A Number of safety auxiliary contacts 0 Rated operation current Ie at AC-15, 230 V – A Rated operation current Ie at DC-13, 230 V – A Width sensor 30 mm Rated operation current Ie at DC-13, 24 V – A Number of contacts as change-over contact 0 Ambient temperature during operating -25 – 55 °C Output electronic No Suitable for safety functions No Switching function latching No Forced opening Yes With status indication No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2222724
