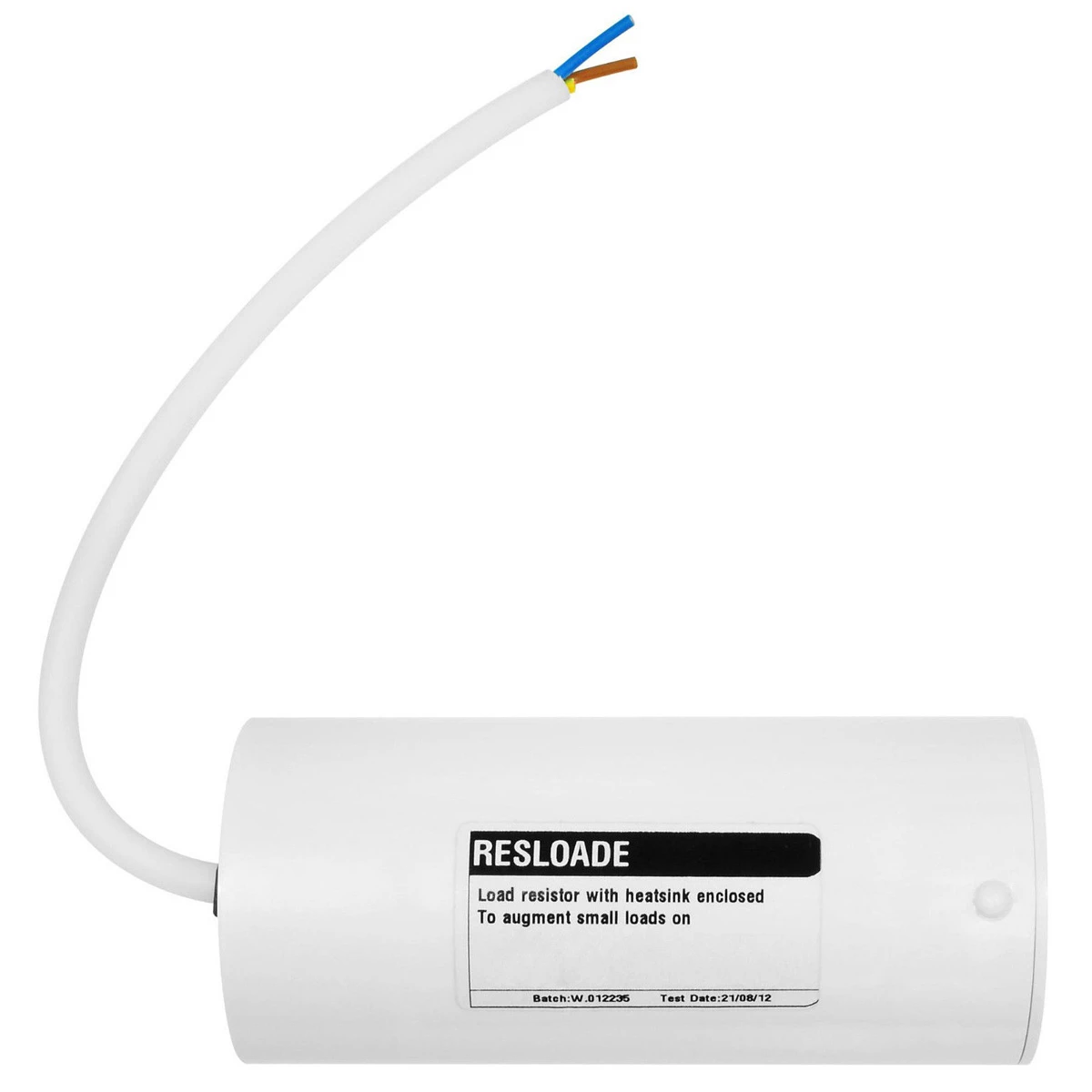

Danlers Resistive Load Device 10w

This load resistor can be used to try to eliminate lamp instability and flicker when dimming non-resistive loads such as mains directly dimmable LED lamps or dimmable transformers. · · · Lighting load resistor used to resolve low load issues · · The RESLOAD is designed for Danlers Grid trailing edge dimmers (DQDGD) when dimming LED lamps and any other use of this product will invalidate our warrantee. · · The RESLOAD must be connected to Earth. · · For direct mains dimmable lamps the RESLOAD is connected at a suitable light fitting, in parallel across the load, between the dimmed variable live and neutral. · · For mains dimmable transformers the RESLOAD is connected across the primary (variable mains input) side of the transformer. · · The RESLOAD is designed to be placed into the ceiling void and can be passed through a 63mm diameter cutout, the typical size for down lighters. · · The RESLOAD has an effective load of 10W and an operating temperature of approximately 40°C above ambient. It should be installed where air flow is not restricted. · · It should not be covered by insulating materials or positioned near any heat sources or heat sensitive objects.
