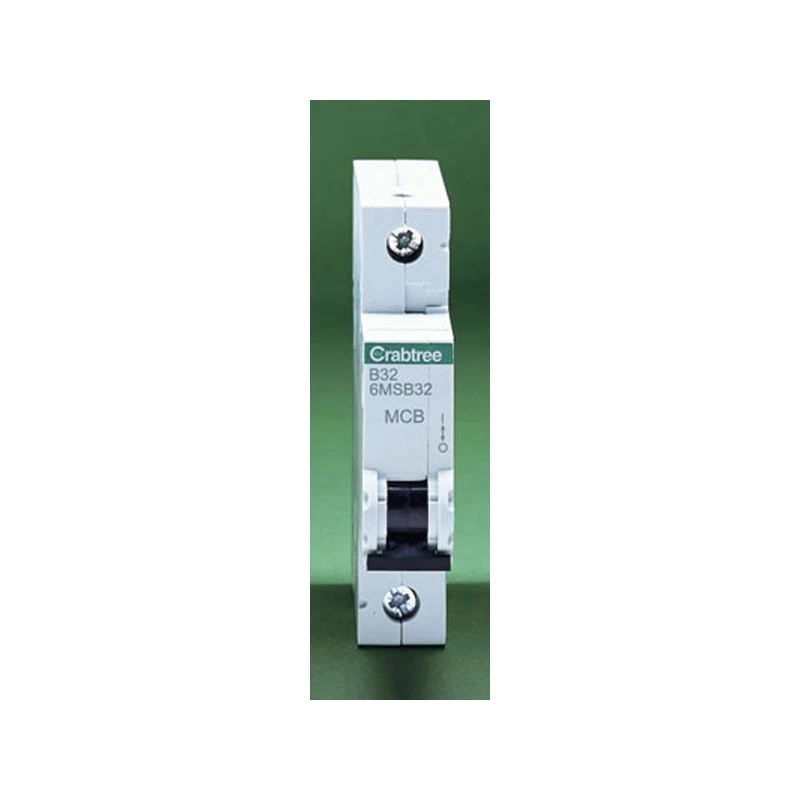

Loadstar MCB SP Type B 1 Module 32A 6kA
Loadstar MCB SP Type B 1 Module 32A 6kA
Loadstar MCB SP Type B 1 Module 32A 6kA - Image 2
Loadstar MCB SP Type B 1 Module 32A 6kA - Image 3

Loadstar MCB SP Type B 1 Module 32A 6kA

£4.54 Incl. VAT

· · Ambient temperature 55°C · · Rated load of average service life 20000 actuations · · Quick release DIN clip · · No miss busbar connection

23 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6MSB32 Categories: , , Brand: Part Number: 2500329542

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 32 A Recess depth 73 mm Tripping characteristic (type/curve) B Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Number of poles (total) 1 Number of protected poles 1 Width in number of modular spacings 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated voltage 230 V Rated insulation voltage Ui 400 V Current limiting class 3 Over voltage category 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Additional equipment possible No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
