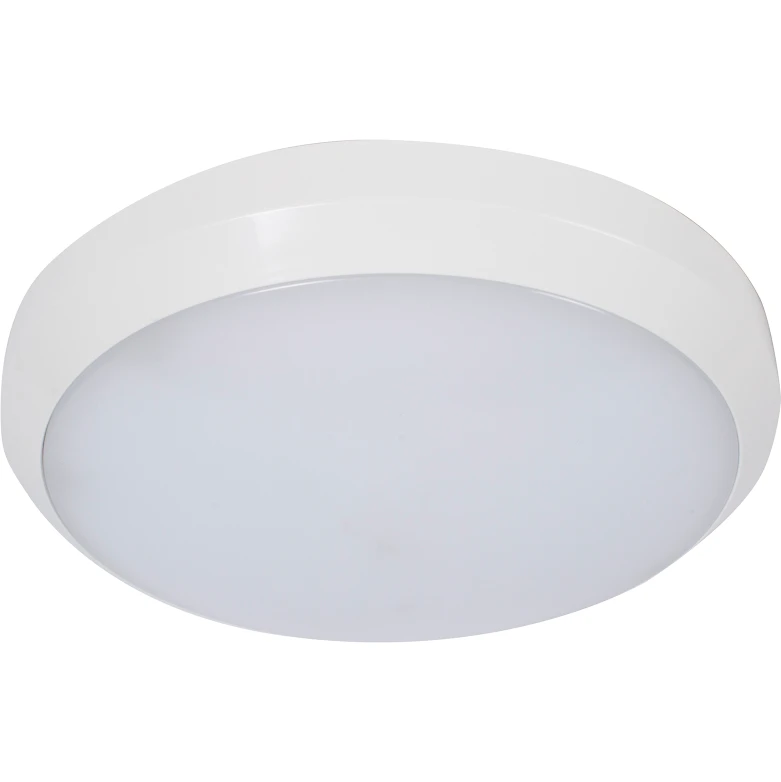

Luminaire Eagle LED Emergency Surf Fitting Large 24W 4000K Pro

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Conductor cross section – mm² Power factor 0.9 Outer diameter 420 mm Luminaire efficacy 95 lm/W Rated life time L70/B50 at 25 °C 50000 h Rated luminous flux acc. IEC 62722-2-1 – lm Total harmonic distortion 20 Maximum system power 24.3 W Recess diameter – mm Number of poles – Number of lamps – Recess length – mm Recess height/depth – mm Recess width – mm Unified Glare Rating (UGR) 24 Height/depth 91 mm Dimming 1-10 V No Dimming potentiometer (integrated) No Rated ambient temperature acc. IEC62722-2-1 -10 – 35 °C Colour temperature 4000 – 4000 K Nominal current 97 – 97 mA Nominal voltage 220 – 240 V Lamp power – – – W Dimming mains voltage modulation No Dimming depending on control gear No Dimming DSI No Dimming Zigbee No Dimming 0-10 V No Dimming DMX No Dimming sine wave reduction No Dimming manufacturer’s proprietary system No Dimming with push-button No Dimming leading edge No Light source included Yes Control gear included Yes Suitable for light line configuration No Suitable for emergency lighting No Luminaire may be covered with thermally insulating material No Suitable for ceiling mounting No Dimming trailing edge No Dimming touch and dim No Dimming RF No Dimming LineSwitch No Dimming DALI No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for surface mounting No Dimming programmable No No dimming function Yes Bluetooth operated No Fit for workplace acc. EN 12464-1 No With light sensor No With movement sensor No Suitable for recessed mounting No Suitable for wall mounting Yes With air slots No Suitable for suspended mounting No · Technical Data Sheet – Click to Download
