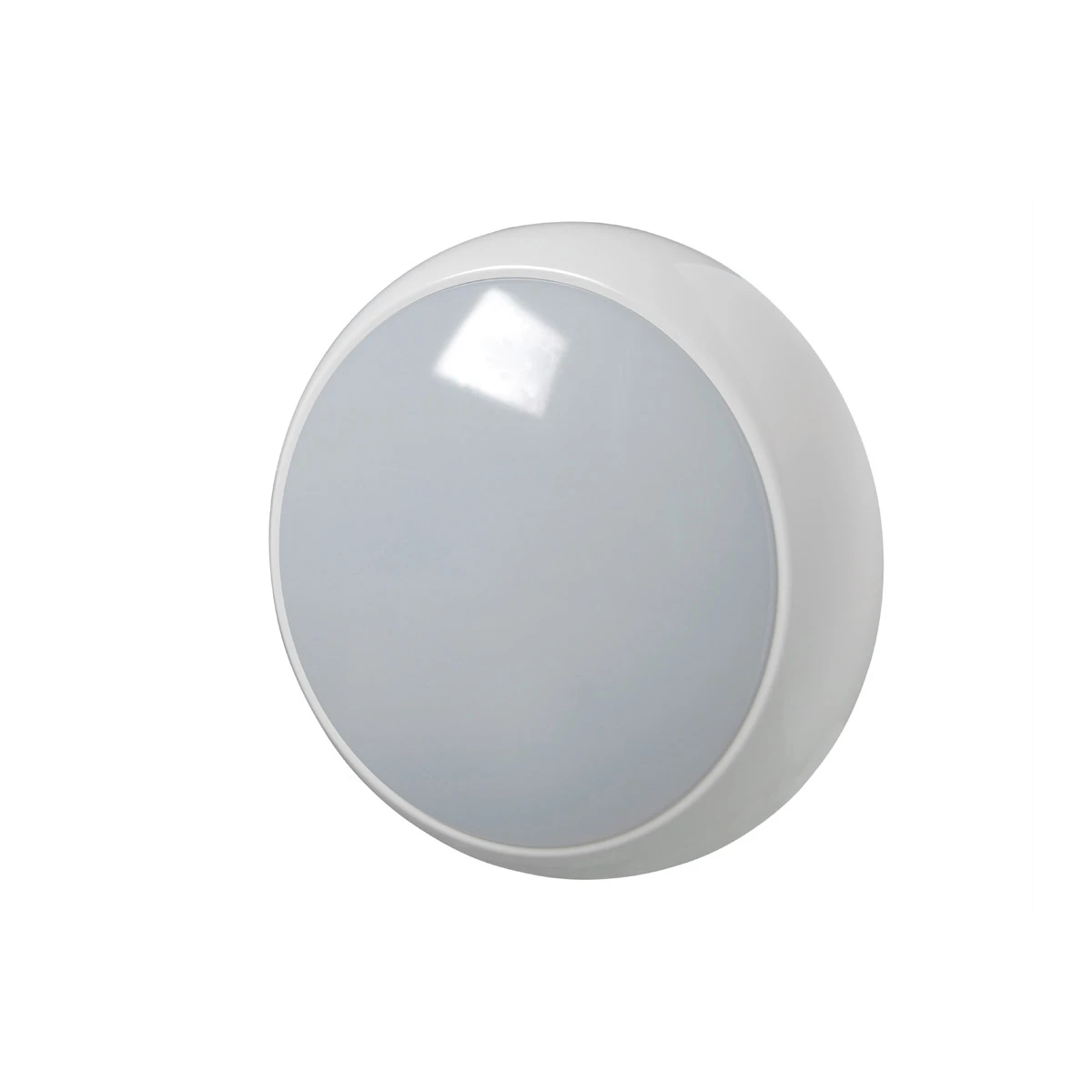

Luminaire LED Golf Standard Pro-Diffuser 15W

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Housing colour White Housing material Plastic Conductor cross section – mm² Recess diameter – mm Number of poles – Height/depth 118 mm Outer diameter 330 mm Recess width – mm Number of lamps – Maximum system power 14.6 W Luminaire efficacy 86 lm/W Rated life time L70/B50 at 25 °C 50000 h Unified Glare Rating (UGR) 23.3 Total harmonic distortion 51.6 Recess length – mm Power factor 0.9 Recess height/depth – mm Rated luminous flux acc. IEC 62722-2-1 – lm Lamp power – – – W Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Nominal current 69 – 69 mA Rated ambient temperature acc. IEC62722-2-1 -20 – 35 °C Light source included Yes Suitable for wall mounting Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With air slots No With movement sensor No With light sensor No Suitable for light line configuration No Suitable for recessed mounting No Suitable for suspended mounting No Suitable for emergency lighting No Control gear included Yes Suitable for surface mounting No Suitable for ceiling mounting No Dimming touch and dim No No dimming function Yes Dimming programmable No Fit for workplace acc. EN 12464-1 No Dimming Zigbee No Dimming LineSwitch No Dimming trailing edge No Dimming DALI No Bluetooth operated No Dimming RF No Dimming DMX No Dimming manufacturer’s proprietary system No Luminaire may be covered with thermally insulating material No Dimming DSI No Dimming 0-10 V No Dimming leading edge No Dimming depending on control gear No Dimming potentiometer (integrated) No Dimming with push-button No Dimming mains voltage modulation No Dimming 1-10 V No Dimming sine wave reduction No · Technical Data Sheet – Click to Download
