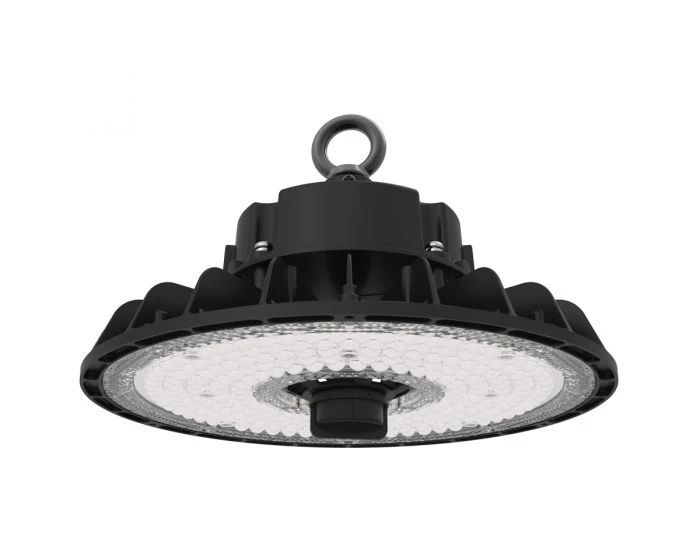

Collingwood Lighting Matt Black 150W IP65 24000Lm 4000K High Bay Luminaire (Replaces 250W Or 4X49W T5)
£167.84 Incl. VAT
A high-performance, IK10 and IP65 rated circular LED luminaire designed for high and low bay applications. Available in four lumen outputs, ranging from 16,000lm up to 38,000lm and 0-10V dimmable, the Area Bay offers energy efficient 4000K lighting, to cover a height range from 8-16 metres. The light emitted by each LED chip is perfectly refracted through a dedicated lens, ensuring optimal, controlled lighting at 110 degree beam angle, across a broad area. This effectively lights large spaces with fewer luminaires required. At 4000k and >80Ra, each unit radiates a bright and colour enriching light that helps productivity when picking stock within warehouses, quality control after manufacturing and despatch of production facilities. Efficiency is no good without good quality optical control and when used as part of a designed lighting scheme, our 160 lm/W Area High Bay offers low running costs for large area lighting projects.Engineered from corrosion resistant aluminium alloy, the low profile, perfectly balanced luminaire is incredibly lightweight and takes just minutes to instal by a single person.At a maximum weight of 2.28kg (standard) and 3.9kg (Emergency), the unit can be held in one hand, whilst attaching the unit to the single source hanging fixture, with the other.For light only when required, there are a range of easy fit, control options. Choose from PIR, microwave, daylight, DALI-2 and wireless options. Simply plug the unit in the centre of the light fixture and you are good to go in seconds, with no complex rewiring, or counterbalances required. For large installations, with multiple luminaires, the remote control features a bulk upload feature. This allows multiple lights to be programmed in one go. And, if for any reason your floor layout changes, our sensors are interchangeable, making it easy to re-apply your lighting control.A High Bay is a long term 10-to-20-year investment so the Area Bay has not only been engineered to last but also designed to quickly accommodate upgrades and replacement parts when required. The driver is repairable/upgradeable and for Emergency models, the 2yr life Emergency battery, is quickly accessible making it simple to replace when the time comes.With a 50,000 LED lifetime, and a 5 years warranty and 2 years on site, and low running costs, you can rest assured that the Area Bay is a smart lighting investment. · · · High efficacy of 160lm/W · · Very light weight for easy installation · · High performance dedicated lens for each LED provides efficient optical control · · Choice of PIR, microwave, daylight, DALI-2 and wireless control options saves energy and takes just seconds to fit, just plug-in to the centre of the high bay · · Choice of PIR, microwave, daylight, DALI-2 and wireless control options saves energy and takes just seconds to fit, just plug-in to the centre of the high bay · · Compact and lightweight, our product can be held in one hand and installed by a single person · · Quick access to LiFePO4 battery compartment for simple replacement · · Removeable driver for easy maintenance · · Impact and corrosion resistant aluminium housing which is 100% recyclable
Description
Technical Specifications Technical Specifications High / low bay luminaire Housing colour Black Impact resistance (IK rating) IK10 Housing material Aluminium Degree of protection (IP rating) IP65 Number of lamps 1 Rated life time L70/B50 at 25 °C 54000 h Power factor 9 Height/depth 176 mm Outer diameter 254 mm Maximum system power 150 W Colour temperature 4000 – 4000 K Rated ambient temperature acc. IEC62722-2-1 40 °C Nominal voltage 220 – 240 V Replaceable control gear No Dimming RF No Dimming DMX No Dimming 0-10 V Yes Control gear included Yes Suitable for emergency lighting Yes Light source included Yes Dimming programmable No Dimming mains voltage modulation No Dimming 1-10 V No Dimming touch and dim No Dimming leading edge No Dimming manufacturer’s proprietary system No Dimming sine wave reduction No Dimming with push-button No Dimming trailing edge No Dimming potentiometer (integrated) No Dimming DALI No Dimming DSI No Dimming LineSwitch No · Technical Data Sheet – Click to Download
