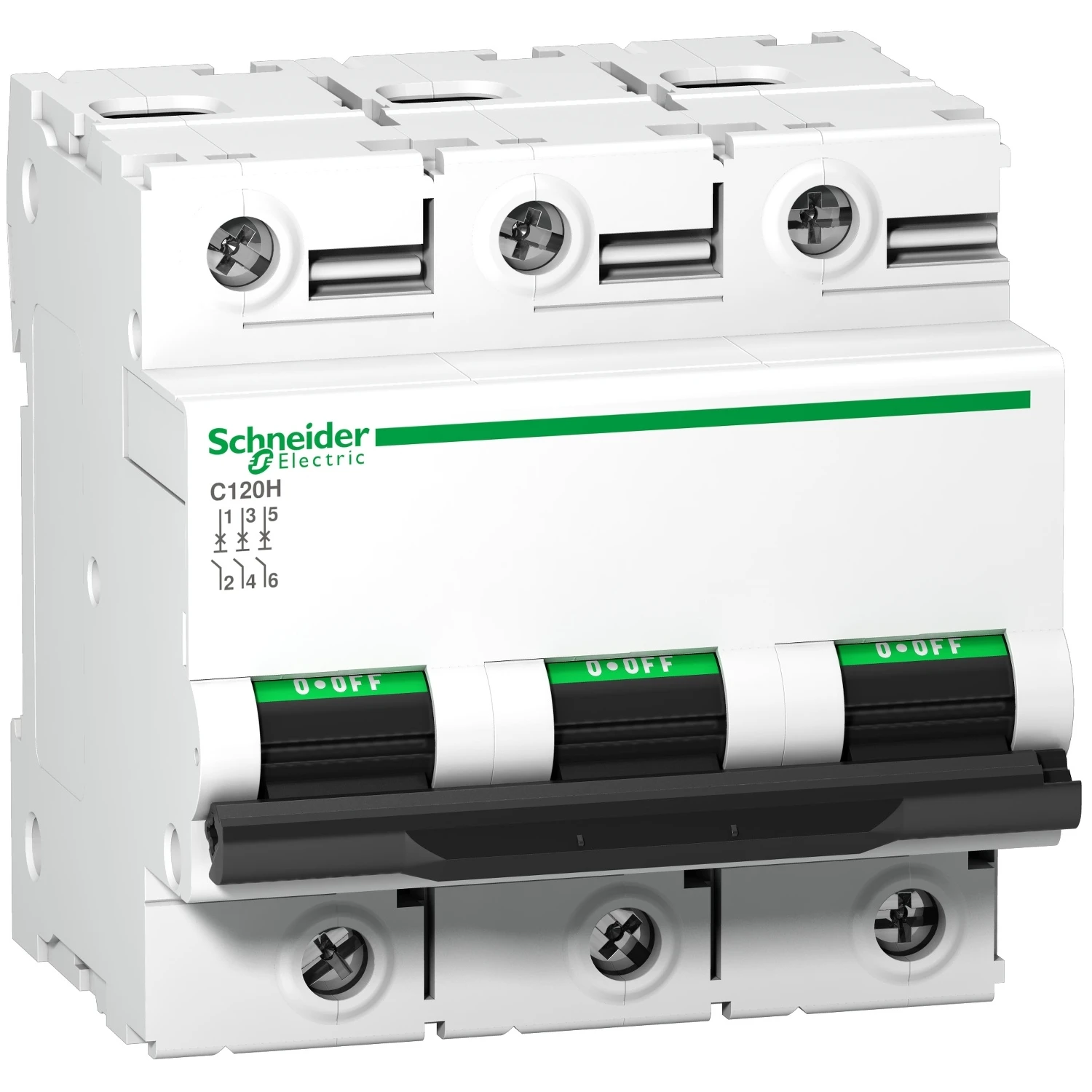

MCB C120H Triple Pole Type C 100A 15kA
£267.72 Incl. VAT
This Acti9 C120H is a low voltage multistandard miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 100A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 15000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees that contacts open physically and allows work to be carried out safely on the downstream circuit. Its fast closing mechanism improves its service life. Acti9 C120 offer is dedicated to industrial and tertiary buildings. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is equal or below 375VDC, 220VAC to 240VAC, 230VAC to 400VAC, 380VAC to 415VAC or 440VAC. The Ui rated insulation voltage is 500VAC The frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 9 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 81mm x (H) 81mm x (D) 73mm. The weight is 0.615kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 60°C. The storage temperature is -40°C to 70°C. · · · Green Premium Product · · C Curve · · 100 A at 30 °C · · IP20 conforming to IEC 60529 · · ambient air temperature for operation between -30…60 °C · · 20000 cycle mechanical durability · · 5000 cycles conforming to IEC 60947-2 electrical durability · · 3 Pole · · It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is equal or below 375VDC, 220VAC to 240VAC, 230VAC to 400VAC, 380VAC to 415VAC or 440VAC.
4 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 100 A Over voltage category 4 Tripping characteristic (type/curve) C Pollution degree 3 Rated impulse-withstand voltage (Uimp) 6 kV Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 30 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated insulation voltage Ui 500 V Number of protected poles 3 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 15 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 15 kA Connectable conductor cross section multi-wired 1 – 35 mm² Connectable conductor cross section solid-core 1.5 – 50 mm² Frequency 50 – 60 Hz Recess depth 44 mm Rated voltage 400 V Width in number of modular spacings 4.5 Number of poles (total) 3 Ambient temperature during operating 30 – 60 °C Additional equipment possible Yes Concurrently switching N-neutral No Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
