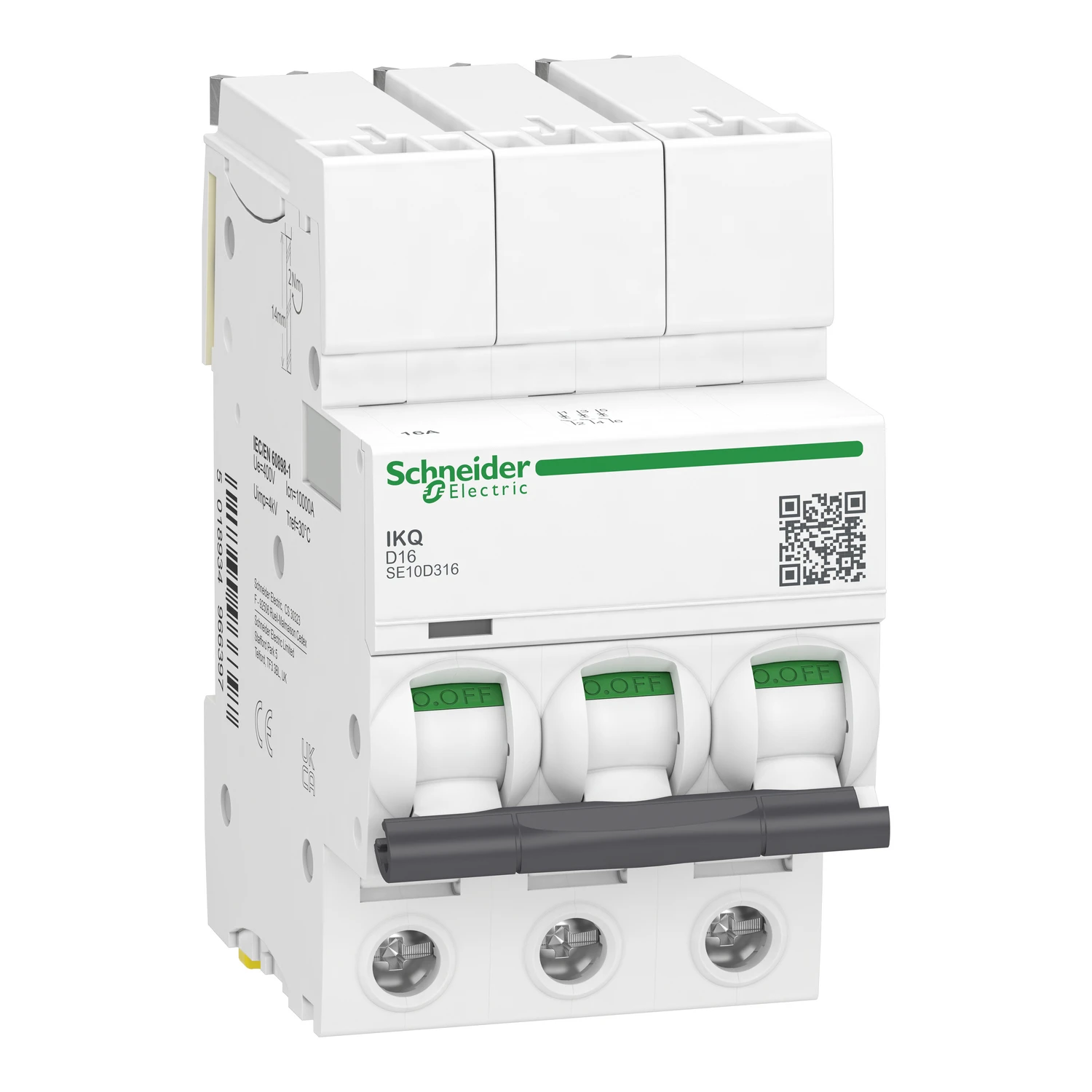

MCB iKQ Triple Pole Type D 16A 10kA
£79.28 Incl. VAT
This Schneider LoadCentre KQ SE10D316 is a D curve 16A 3P 10kA MCB which is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · Click-in busbar for speed of installation and guaranteed connection · · Trip free mechanism that operates even when the toggle is locked on · · Lockable in the on or off position · · 3 Pole · · D Curve · · The trip free mechanism operates even when the toggle is locked on. · · There is a positive contact indication to be guaranteed with on/off indication. · · Trip free mechanism operates even when the toggle is locked on · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 440VAC.
8 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Tripping characteristic (type/curve) D Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 3 Rated insulation voltage Ui 440 V Number of protected poles 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 3 Current limiting class 3 Pollution degree 2 Recess depth 78.5 mm Rated current 16 A Rated voltage 415 V Over voltage category 3 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 60 °C Concurrently switching N-neutral No Suitable for flush-mounted installation No Additional equipment possible Yes · Technical Data Sheet – Click to Download
