MCB Single Pole Type C 32A 10kA 18.7 x 81 x 86.3mm
MCB Single Pole Type C 32A 10kA 18.7 x 81 x 86.3mm
MCB Single Pole Type C 32A 10kA 18.7 x 81 x 86.3mm - Image 2

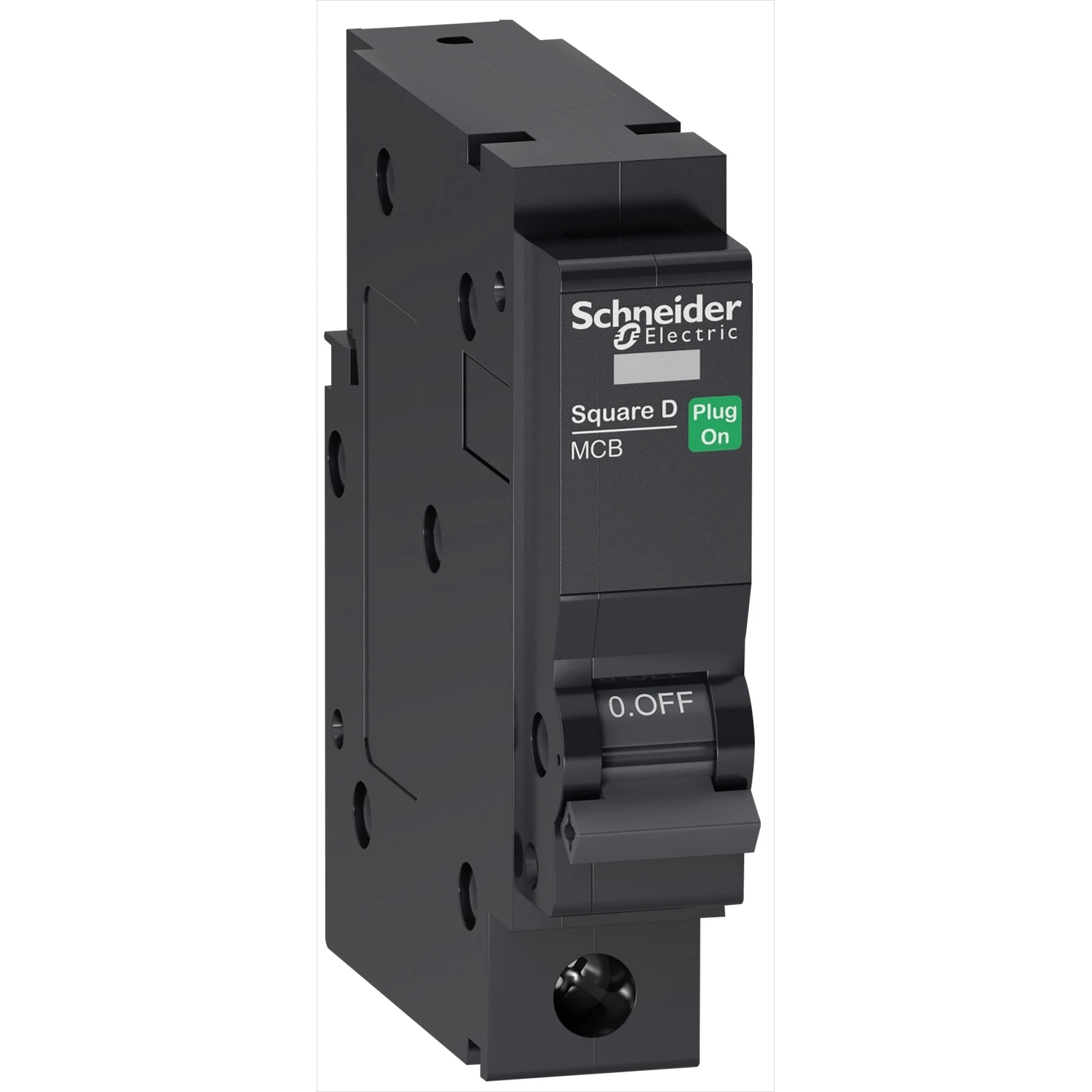

MCB Single Pole Type C 32A 10kA 18.7 x 81 x 86.3mm - Image 3

MCB Single Pole Type C 32A 10kA 18.7 x 81 x 86.3mm

£52.80 Incl. VAT

QO132VSC10 MCB SP Type C 32A 10kA. For use in LoadCentre QO boards. · · · This Square D product is a low voltage miniature circuit breaker (MCB). · · It is a 1P circuit breaker with 1 protected pole and 32A In rated current and C tripping curve. · · The Icn rated short circuit breaking capacity is up to 10000A at 240VAC conforming to EN/IEC 60898-1 standard. · · This product is compliant with EN/IEC 60898-1 standard. · · This miniature circuit breaker protects circuits against short circuit and overload current. · · The tripping upon fault is indicated by a red mechanical state indicator light on the front face of the circuit breaker. · · Operating Temperature -5C to +60C · · Plug-On Mounting · · It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC or 415VAC. The Ui rated insulation voltage is 500VAC.

5 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: QO132VSC10 Categories: , , Brand: Part Number: 2500526471

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 32 A Recess depth 58.8 mm Rated voltage 240 V Rated insulation voltage Ui 500 V Tripping characteristic (type/curve) C Number of protected poles 1 Pollution degree 3 Current limiting class 3 Over voltage category 4 Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Frequency 50 – 60 Hz Connectable conductor cross section solid-core 2.5 – 35 mm² Connectable conductor cross section multi-wired 2.5 – 35 mm² Ambient temperature during operating 5 – 60 °C Suitable for flush-mounted installation No Concurrently switching N-neutral Yes Additional equipment possible Yes · Technical Data Sheet – Click to Download
