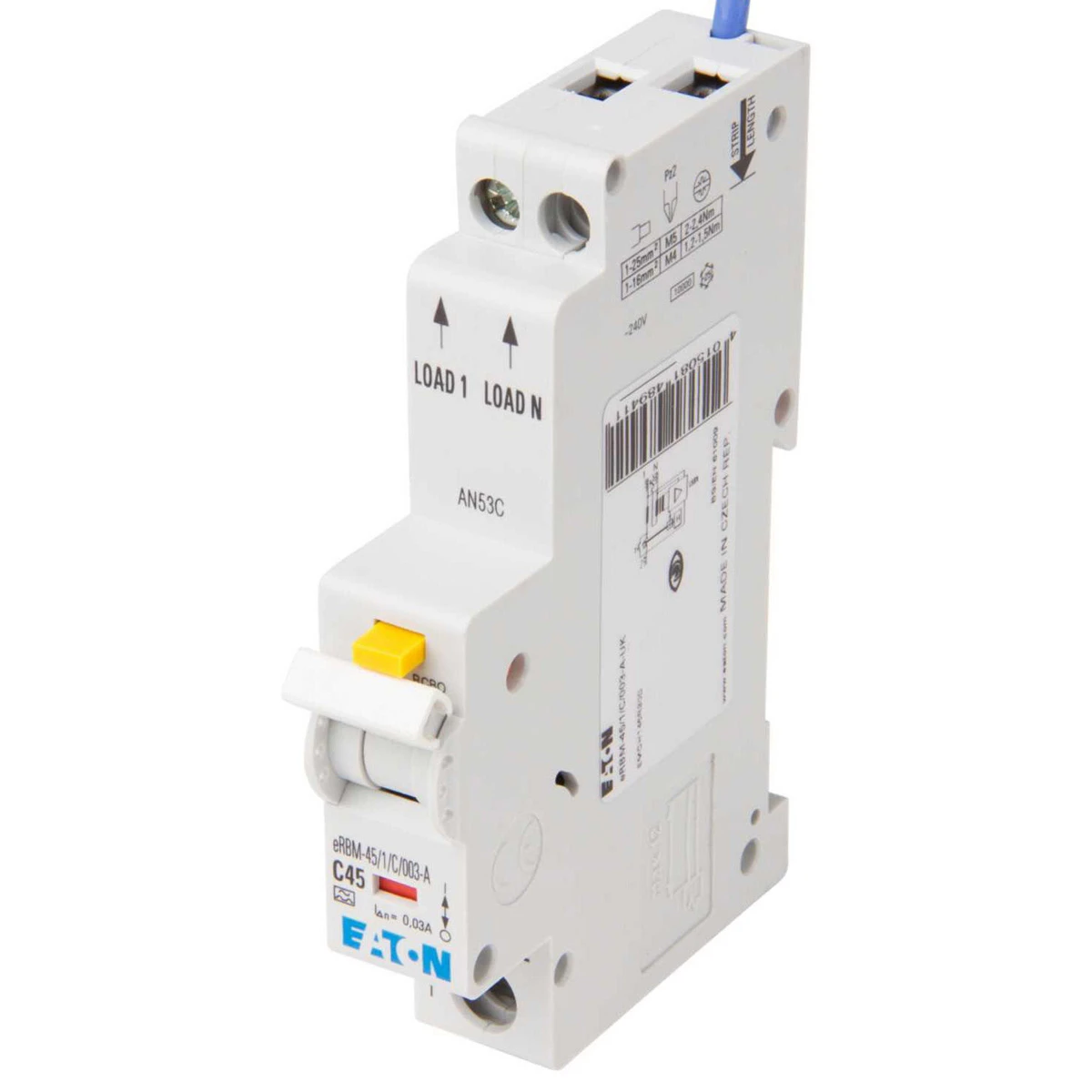

Memshield-3 1P+N 45A Type C RCBO 10kA 17.7 x 120 x 76mm
£55.19 Incl. VAT
The Eaton Memshield-3 EMCH110R30C RCBO provides a comprehensive protection solution to a wide range of applications. Eaton RCBOs suite with the complete range of modular devices and are for use within Eaton’s MEM Memera consumer units and other applications. It provides a high degree of protection against electric shock due to direct and indirect contact. This type of RCD is required to satisfy the requirements for “additional protection” in accordance with BS7671. · · · C release characteristic · · Manufactured to IEC/EN 61009 · · DIN rail mountable in a single module width · · Accommodate cables up to 16mm² · · A 30mA RCD will trip within 40ms when a fault current of 150mA is detected
32 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Degree of protection (IP rating) IP20 Disconnection characteristic Undelayed Frequency 50/60 Hz Leakage current type A Tripping characteristic (type/curve) C Power loss 14.1 W Rated current 45 A Recess depth 69.5 mm Voltage type AC Rated short-circuit breaking capacity according to EN 61009 10 kA Rated voltage 240 V Rated insulation voltage Ui 500 V Rated fault current 0.03 A Number of protected poles 1 Number of poles (total) 1 Rated short-circuit breaking capacity IEC 60947-2 0 kA Over voltage category 3 Surge current capacity 0.25 kA Pollution degree 2 Current limiting class 3 Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Anti-nuisance tripping version No Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download
