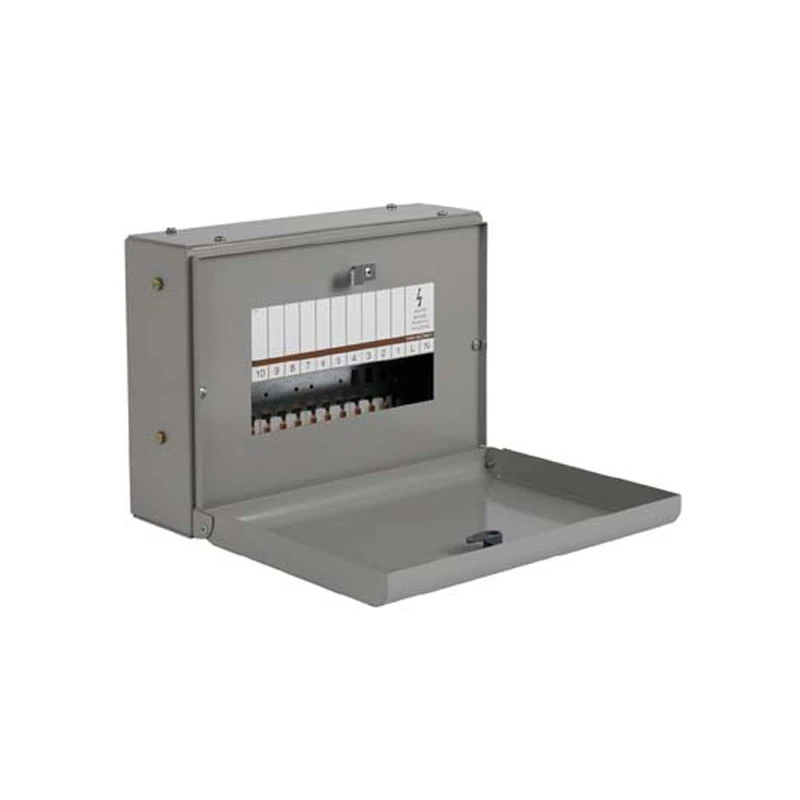

Memshield 3 Distribution Board 16 Way SPN 125A

Description

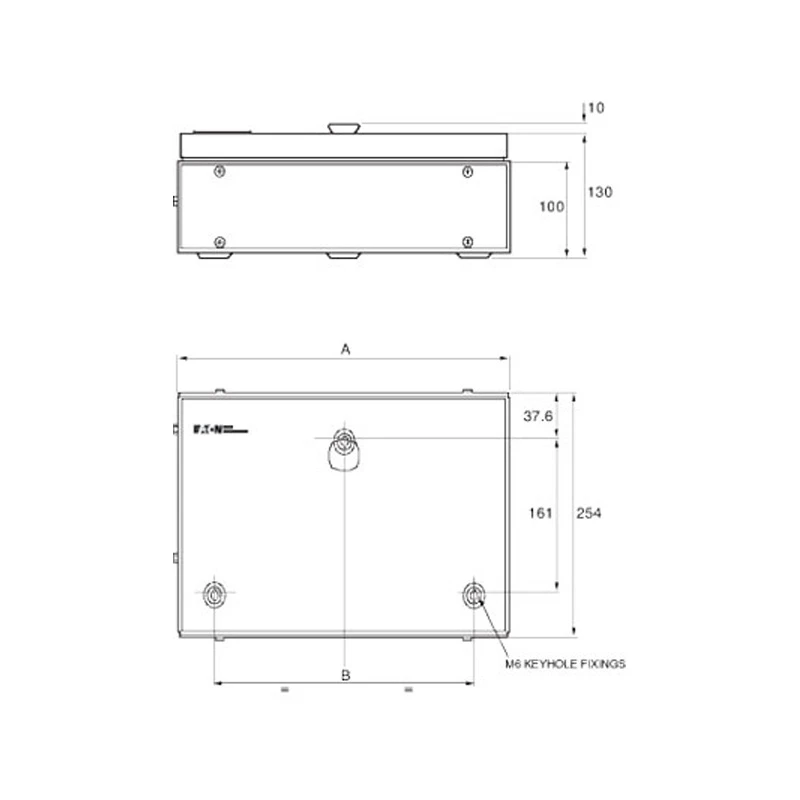

Technical Specifications  Technical Specifications Small distribution board Colour Grey Type of covering Door Housing material Steel Cover model Closed Mounting method Surface mounted Degree of protection (IP rating) IP3X Width 454 mm Recess height 254 mm Number of rows 1 Recess width 454 mm Internal depth 95 mm Height 254 mm Neutral terminal block Yes Earthing terminal block Yes With DIN-rail Yes RAL number 7004 Depth 130 mm Width in number of modular spacings 18 Recess depth 130 mm Signal passing door No Transparent cover/door No EMC-version Yes With lock No Extension possible Yes With mounting plate No UV resistant No · Technical Data Sheet – Click to Download
