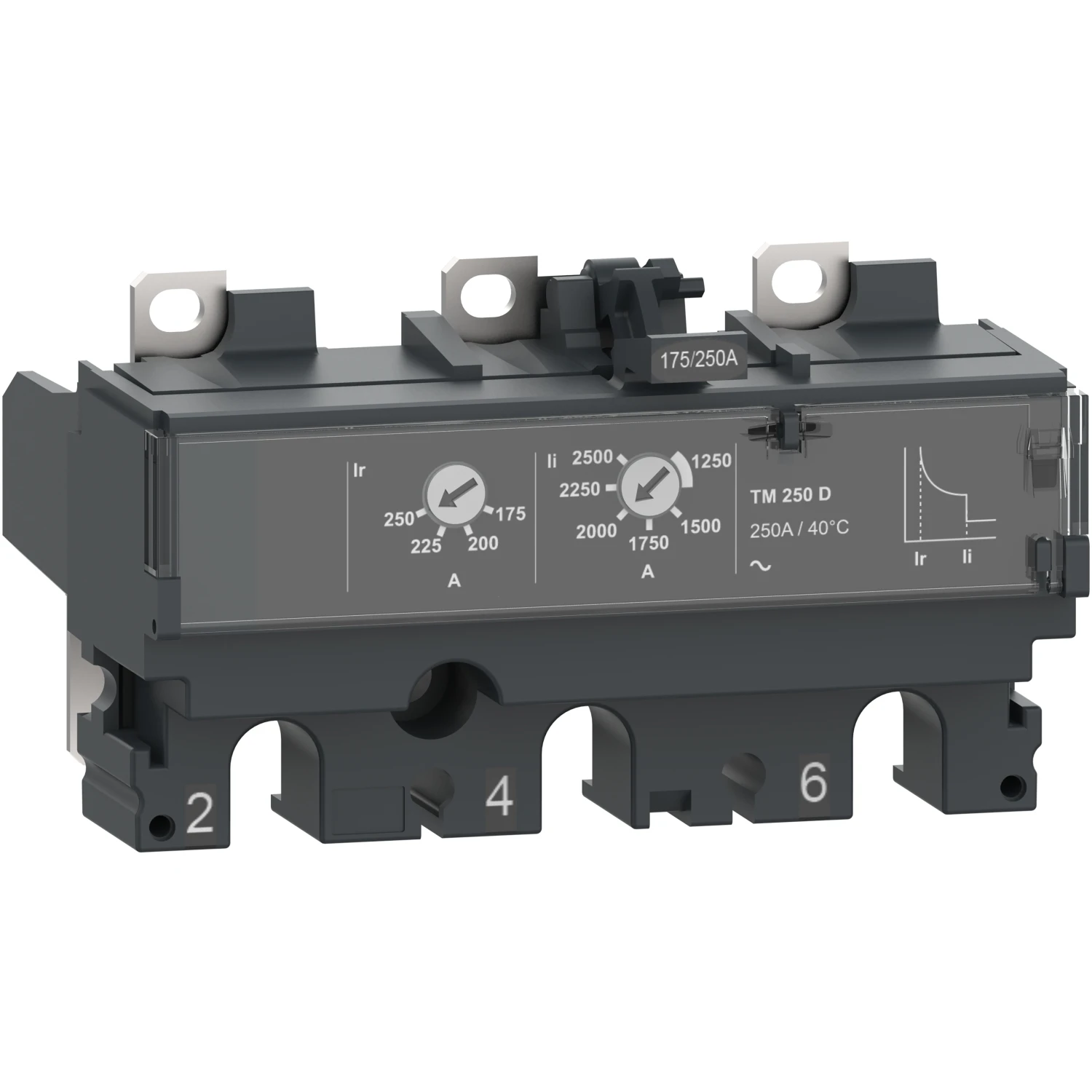

Schneider Electric Merlin Trip Unit 3P 250A

Technical Specifications  Technical Specifications Trip block for power circuit-breaker Type of motor protection Thermal/magnetic release Short-circuit release function Undelayed Voltage type (operating voltage) AC Rated permanent current Iu 250 A Width 104.7 mm Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Rated switch current 250 A Number of poles 3 Number of auxiliary contacts as change-over contact 0 Height 60.6 mm Depth 88.2 mm Overload release current setting 175 – 250 A Supply voltage AC 60 Hz – – – V Supply voltage DC – – – V Operating voltage at AC 50 Hz 690 – 690 V Operating voltage at AC 60 Hz 690 – 690 V Operating voltage at DC – – – V Current setting undelayed short-circuit release 1250 – 2500 A External power supply required No With ground fault protection function No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205407
