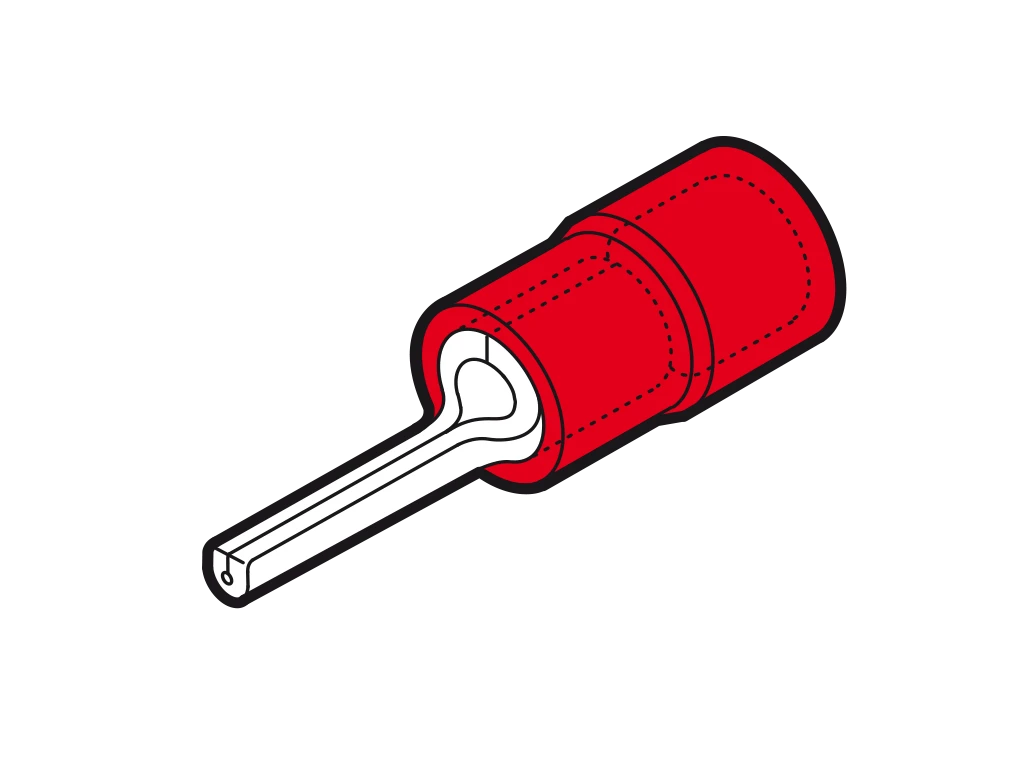

Pin Terminal Red
Pin Terminal Red
Pin Terminal Red - Image 2
Pin Terminal Red - Image 3

Pin Terminal Red

£0.07 Incl. VAT

0.25mm²-1.5mm² PVC insulated pin terminal 12mm pin length red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Length Min Max: 22.1 mm · · CE Approved: Y · · Standards: UL (Canada and US) UL 498A EN 1652

900 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RF-P12 Categories: , , Brand: Part Number: 2500162921

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Flange shape Pin shape Sleeve form Short Material Copper Insulation Polyvinyl chloride (PVC) Surface protection Tinned Colour insulation Red For pull protected connections No Suitable for fine strand conductors Yes Suitable for flat conductors No Nominal cross section 0.25 – 1.5 mm² AWG-range 22 – 16 Max. current (Imax) – A Bolt dimension (metric) – Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for solid cores No Reel packaging No According to DIN No
