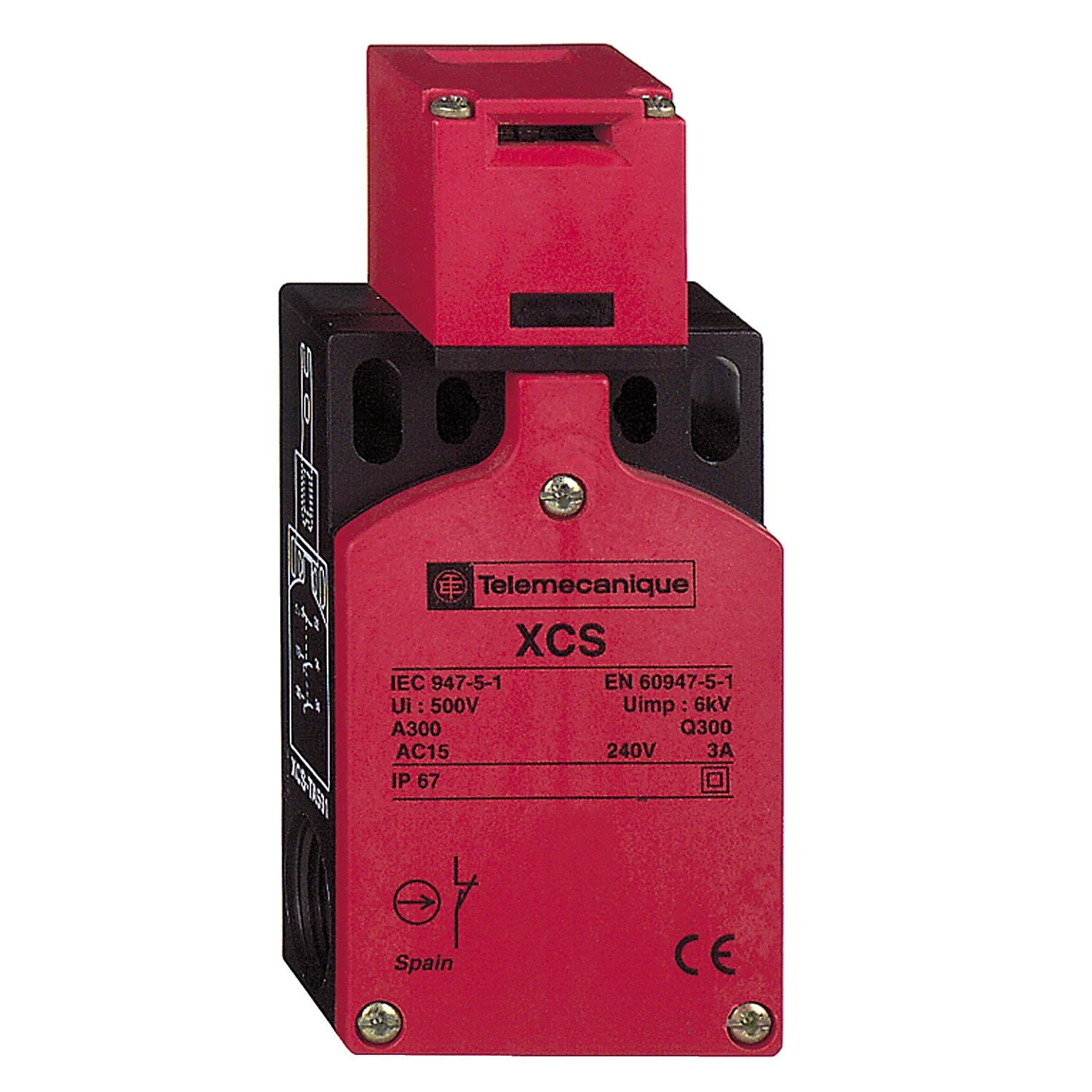

Plastic Safety Switch XCSTA, 2 NC+1 NO, slow break, 2 entries tappedM1
£55.01 Incl. VAT
This XCSTA Key Operated Safety Switch for guard doors has an adjustable turret head and a robust red coated polyamide body with 2 x M16 cable gland entries, allowing for flexible installation. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSTA Key Operated Safety Switch for guard doors has an adjustable turret head and a robust red coated polyamide body with 2 x M16 cable gland entries, allowing for flexible installation. · · It has 1 normally open and 2 normally closed break-before-make (slow break) contacts.
1 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Position switch with separate actuator Explosion safety category for gas None Interface type None Housing material Plastic Type of interface for safety communication None Explosion safety category for dust None Type of switching contact Slow-action switch Type of electric connection Cable entry metrical Degree of protection (IP rating) IP67K Number of safety auxiliary contacts 0 Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at DC-13, 230 V 0.27 A Number of contacts as normally open contact 1 Height of sensor 115 mm Length of sensor 30 mm Width sensor 52 mm Rated operation current Ie at DC-13, 125 V 0.55 A Number of contacts as change-over contact 0 Rated operation current Ie at AC-15, 125 V 6 A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at AC-15, 24 V – A Number of contacts as normally closed contact 2 Ambient temperature during operating -25 – 70 °C Suitable for safety functions Yes With status indication No Forced opening Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188083
