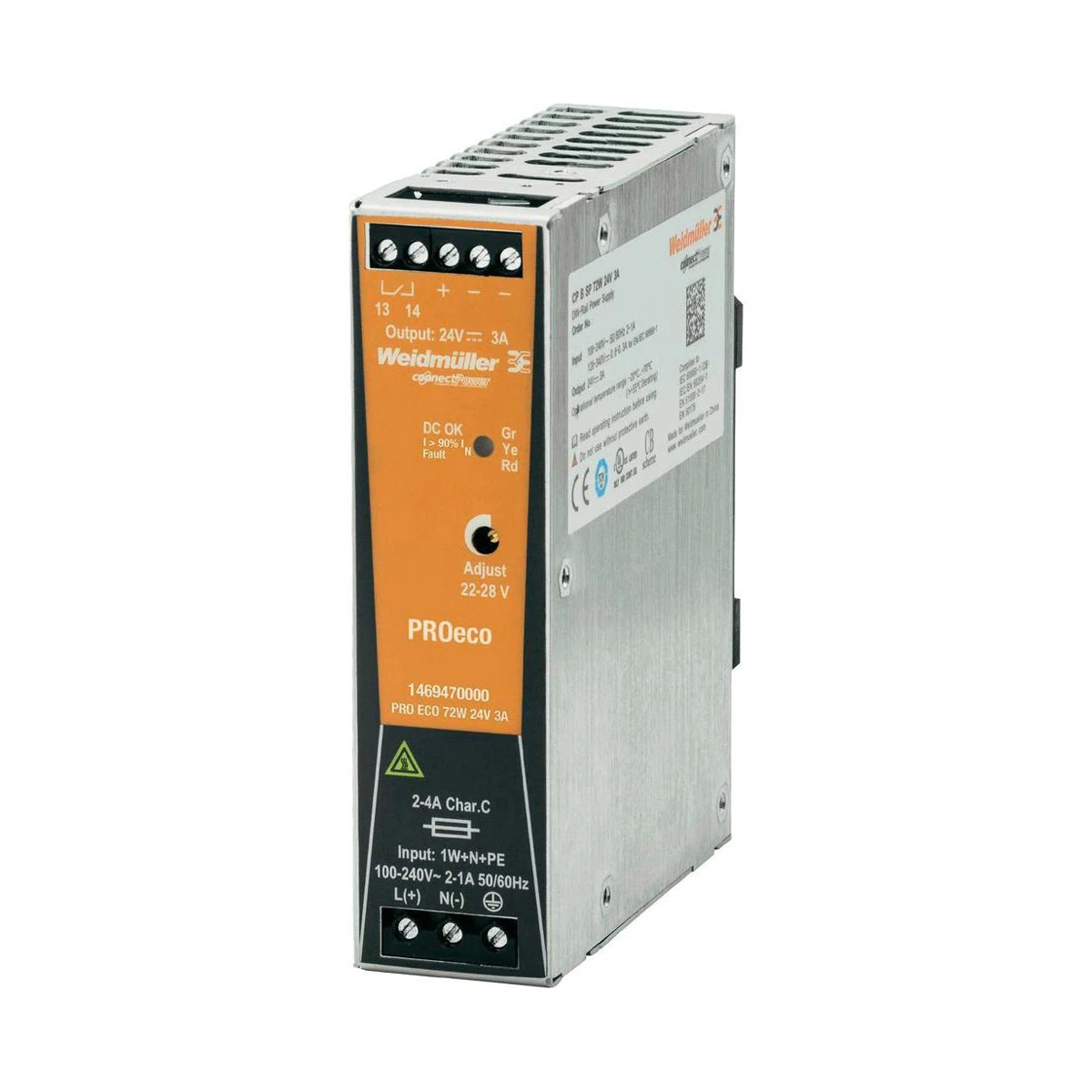

Weidmuller Power Supply Unit Pro Eco Switch-Mode 72W 24V 3A
Weidmuller Power Supply Unit Pro Eco Switch-Mode 72W 24V 3A
Weidmuller Power Supply Unit Pro Eco Switch-Mode 72W 24V 3A - Image 2

Weidmuller Power Supply Unit Pro Eco Switch-Mode 72W 24V 3A

£78.55 Incl. VAT

This model offers all the basic functions and delivers impressively high performance and flexibility. The PROeco switch mode power supply unit features a compact design, high efficiency and is extremely easy to maintain. Short-circuit and overload resistance, it can be universally used in all applications, wide-ranging safety functions and compatibility with our diode and capacitance modules, together with UPS components for setting up a redundant power supply, characterise solutions with PROeco. · · · Operating temperature: -25°C to 70°C · · Storage temperature: -40°C to 85°C · · Unrestricted capacitive load · · Overload protection · · Protection against inverse voltage · · Protection against over heating · · Short-circuit protection · · Floating contact

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1469470000 Categories: , , , , , Brand: Product Code: 2500703411

Description

Technical Specifications  Technical Specifications DC-power supply Degree of protection (IP rating) IP20 SIL according to IEC 61508 None Type of electric connection Screw connection Voltage type of supply voltage AC/DC Depth 100 mm Width 34 mm Nominal value output current 2 0 A Nominal value output current 3 0 A Max. output current 1 3 A Nominal value output current 1 3 A Power output 494 W Nominal value output voltage 2 0 V Nominal value output voltage 1 24 V Nominal value output voltage 3 0 V Recess width 34 mm Recess height 225 mm Height 125 mm 1st secondary output voltage 22 – 28 V Rated supply voltage at DC 120 – 370 V Rated supply voltage at AC 50 Hz 264 – 264 V Rated supply voltage at AC 60 Hz 264 – 264 V Modular version No Stabilized Yes Secondary voltage adjustable Yes Output voltage stabilized Yes Short-circuit-proof Yes Rail mounting possible Yes Suitable for safety functions No Direct mounting possible Yes · Technical Data Sheet – Click to Download
