Preventa 2 Pole Safety Switch Plastic 1 NC + 1 NC 1 Entry Tapped M16
Preventa 2 Pole Safety Switch Plastic 1 NC + 1 NC 1 Entry Tapped M16
Preventa 2 Pole Safety Switch Plastic 1 NC + 1 NC 1 Entry Tapped M16 - Image 2
Preventa 2 Pole Safety Switch Plastic 1 NC + 1 NC 1 Entry Tapped M16 - Image 3
Preventa 2 Pole Safety Switch Plastic 1 NC + 1 NC 1 Entry Tapped M16 - Image 4

Preventa 2 Pole Safety Switch Plastic 1 NC + 1 NC 1 Entry Tapped M16

£47.21 Incl. VAT

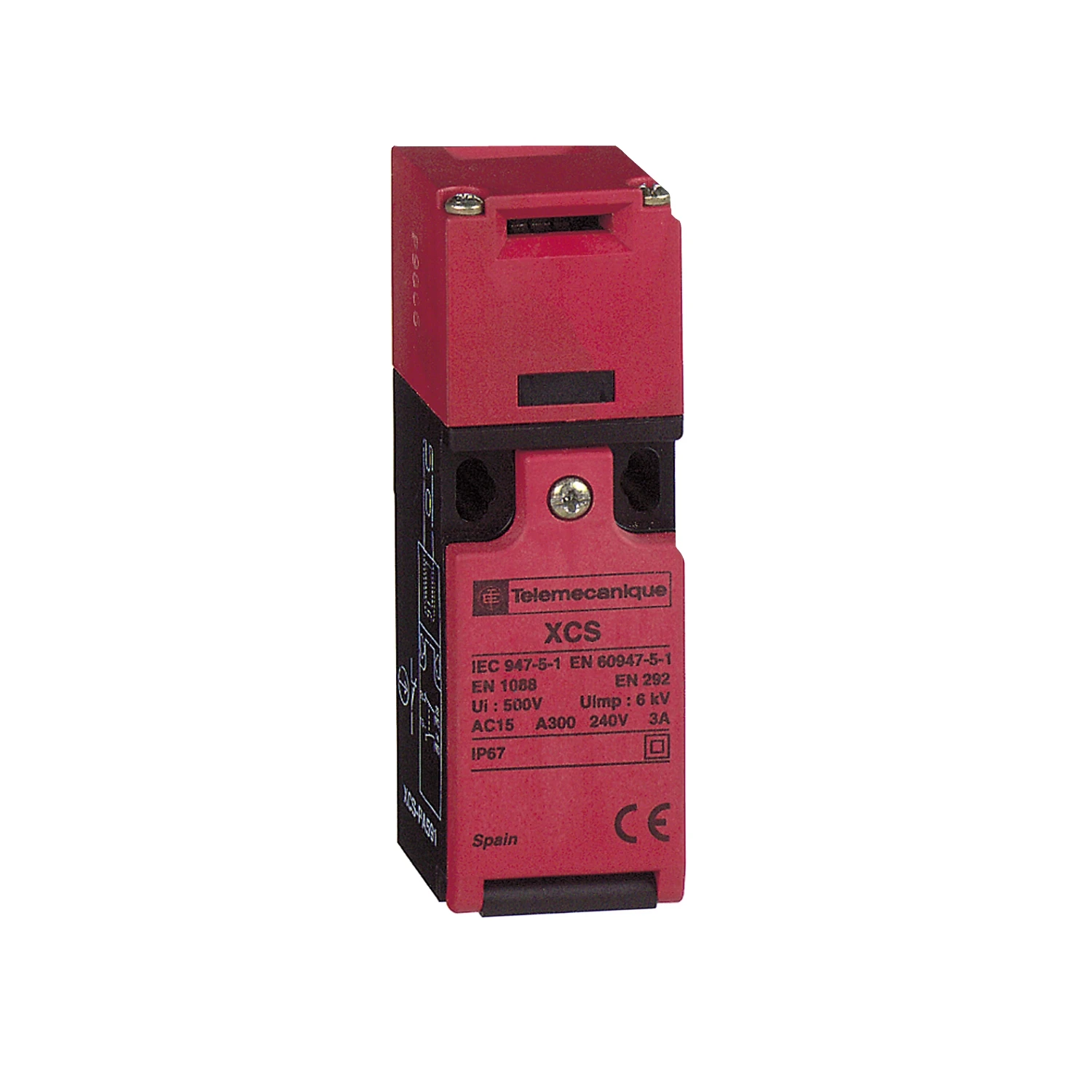

This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a plastic body. This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated thermoplastic body. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. It simply ensures a -door-open machine stop- control on your machine, with maximal reliability. It secures the machine and system operation with a key, only available to authorized operators. · · · This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a plastic body. · · This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated thermoplastic body. · · Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. · · When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. · · It simply ensures a “door-open machine stop” control on your machine, with maximal reliability. · · It secures the machine and system operation with a key, only available to authorized operators. · · 5gn Vibration Resistance · · 10gn Shock Resistance / Class I Electrical Shock protection · · Without locking of actuator · · IP67 Degree of protection

5 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCSPA792 Categories: , , Brand: Part Number: 2500079529

Description

Technical Specifications  Technical Specifications Position switch with separate actuator Interface type None Housing material Plastic Explosion safety category for dust None Explosion safety category for gas None Type of interface for safety communication None Type of switching contact Slow-action switch Type of electric connection Cable entry metrical Degree of protection (IP rating) IP67K Rated operation current Ie at AC-15, 125 V 6 A Rated operation current Ie at AC-15, 230 V 3 A Width sensor 30 mm Length of sensor 30 mm Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V 0.55 A Number of contacts as normally open contact 0 Number of contacts as change-over contact 0 Rated operation current Ie at DC-13, 230 V 0.27 A Number of safety auxiliary contacts 0 Height of sensor 94 mm Rated operation current Ie at AC-15, 24 V – A Number of contacts as normally closed contact 2 Ambient temperature during operating -25 – 70 °C Suitable for safety functions Yes With status indication No Forced opening Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188083
