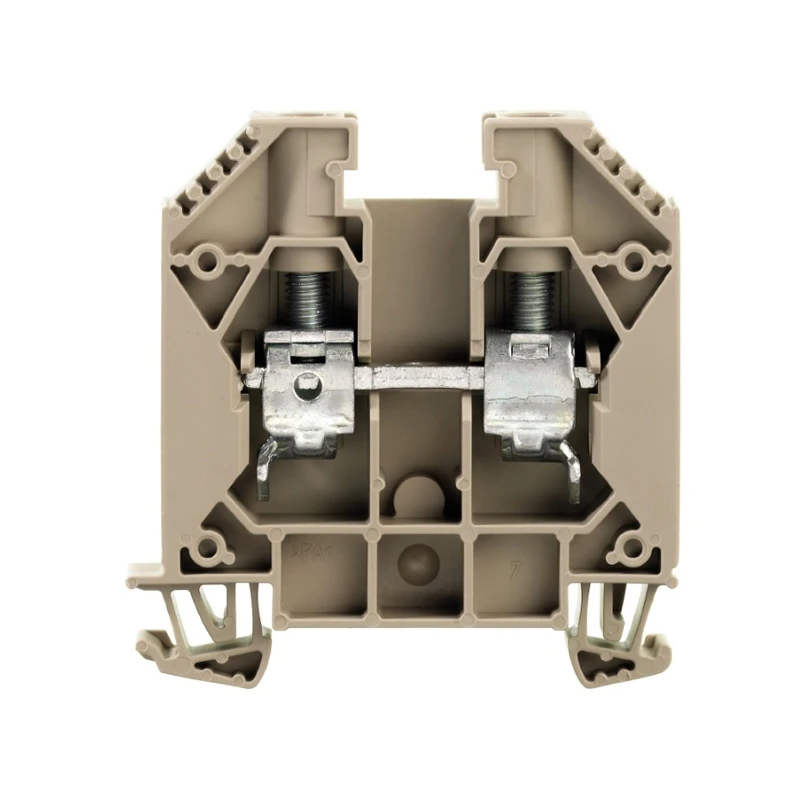

Weidmuller Terminal Feed Through WDU 16 16mm 76A 1000V Beige Screw Connector
Brand: WeidmullerProduct code: 1020400000Go Magpie Ref: 5060062301837
This is a Feed Through Terminal Block made of Wemid with Snap-On mounting. The WDU 16 offers high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. The Klippon connect provides a proven response to a range of different requirements. · · · Identical contours for easier planning · · The maintenance-free connection means the clamping screw does not need to be re-tightened · · Vibration-resistant connectors – ideal for applications in harsh conditions · · Quick installation as the products are delivered with clamping yoke open · · Small “W-Compact” size saves space in the panel
£2.23inc VAT£1.86 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Feed-through terminal block Mounting method DIN rail (top hat rail) 35 mm Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Screw connection Width 11.9 mm Type of electrical connection 2 Screw connection Rated current In 76 A Rated voltage 1000 V Number of clamp positions per level 2 Number of levels 1 Operating temperature -50 – 120 °C Height 60 mm Connectable conductor cross section fine-strand with cable end sleeve 1.5 – 16 mm² Connectable conductor cross section solid-core 1.5 – 16 mm² Connectable conductor cross section fine-strand without cable end sleeve 1.5 – 25 mm² Connectable conductor cross section multi-wired 1.5 – 25 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
