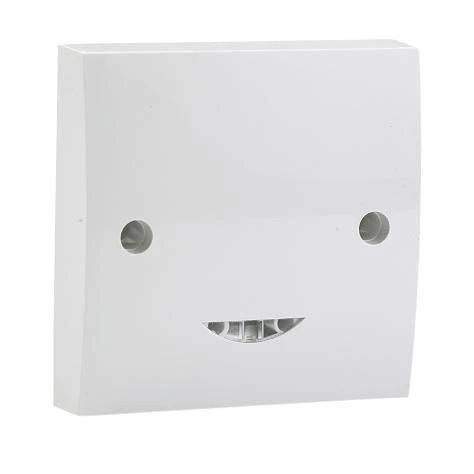

PRM Switching Low Profile IP40 Ceiling Back Box Mounted Microwave Presence Detector
£286.07 Incl. VAT
CP Microwave Presence Detector is low profile, contemporary styled microwave provides automatic control of lighting, heating or ventilation loads, via highly sensitive microwave technology. Low power microwave signals are emitted and then measure the reflections as the signals bounce of moving objects. It is optimised for ceiling mounting applications where long-distance detection is required. Low voltage and volt free options, suitable for BMS and other control applications. Easily setup using the UHS5 infrared handset, no need to remove unit to re-program. Suitable for heating and ventilation applications. · · · Robust design, vandal resistant · · Built in lux level sensing, enhanced energy saving · · Absence detection functionality · · Ultra low ‘stand-by’ power consumption · · PRM Switching
4 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Motion detector Material qualifier Thermoplastic Degree of protection (IP rating) IP40 Mounting method Surface mounted Material Plastic Width 86 mm Max. starting current 10 A Switching-on delay 10 s Depth 45.5 mm Nominal voltage 230 V Voltage type AC Colour White Model Presence detector Optimum mounting height 2.8 m Diameter reach on floor 10 m Max. duty cycle 99 min Height 98 mm Frequency 50 – 50 Hz Suitable for ceiling mounting Yes With DALI interface No · Technical Data Sheet – Click to Download
