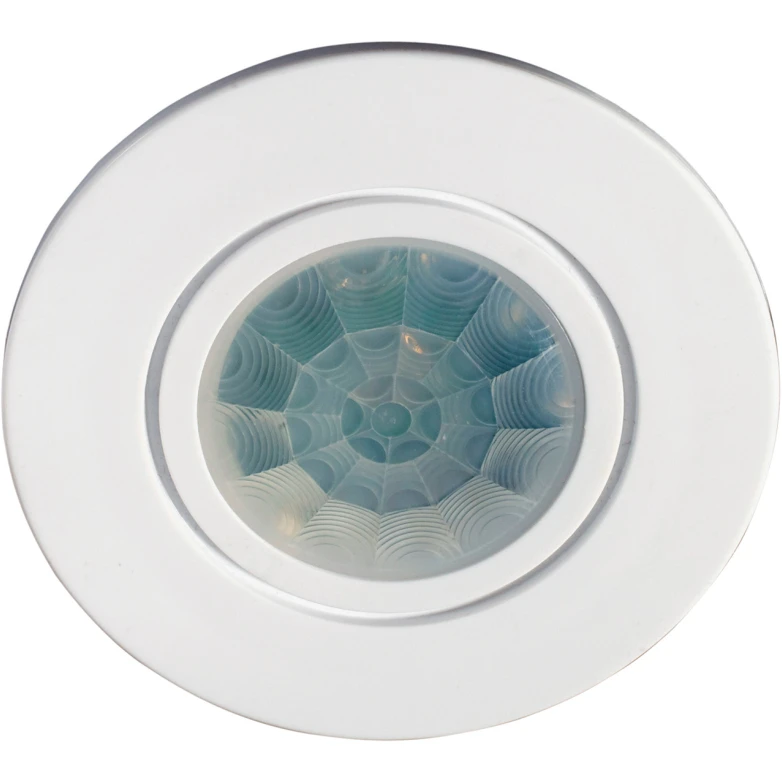

PROTON 360 DEGREE PIR WITH FLUSH FRONT Complete with accessor
PROTON 360 DEGREE PIR WITH FLUSH FRONT Complete with accessor
PROTON 360 DEGREE PIR WITH FLUSH FRONT Complete with accessor - Image 2
PROTON 360 DEGREE PIR WITH FLUSH FRONT Complete with accessor - Image 3

PROTON 360 DEGREE PIR WITH FLUSH FRONT Complete with accessor

£29.00 Incl. VAT

PROTON 360 DEGREE PIR WITH FLUSH FRONTComplete with accessor · · · Passive infra red ensures light is switched on when sensor detects movement of heat, switched off when area is vacated. Minimises false / unwanted triggering · · Complete with accessory shield to narrow beam angle · · Manual over ride with automatic reset after 8 hours · · Large terminals accept 2 x 1.5mm2 conductors in each terminal. Facility for loop in loop out · · Earth terminal included · · 3 wire – multiple sensors can be wired in parallel · · Unobtrusive flush face design · · High load contact rating, allows numerous fittings to be switched · · No minimum load requirements

17 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RPR360PIRF-01 Categories: , , Brand: Part Number: 2501117829

Description

Technical Specifications  Technical Specifications Motion detector Colour White Degree of protection (IP rating) IP20 Material Plastic Nominal voltage – V Height 66 mm Recess diameter 62 mm Temperature – – – °C Diameter 76 mm Antibacterial treatment No Detection angle horizontal 360 – 360 ° Halogen free No Animal zone No Teach-function for response value luminosity No Response value sensitivity adjustable No Forced switch on No Constant light control No With signal unit No Auxiliary input No Suitable for C-load No With DALI interface No Response value luminosity adjustable No Remote operation No Forced switch off No Networkable No Suitable for ceiling mounting No Alarm function No HVAC-control No Dim function with dimmer basic element No Transparent No With remote control No Creep-under protection No Bridging switch No Suitable for wireless transmission No Staircase monitoring No · Technical Data Sheet – Click to Download
