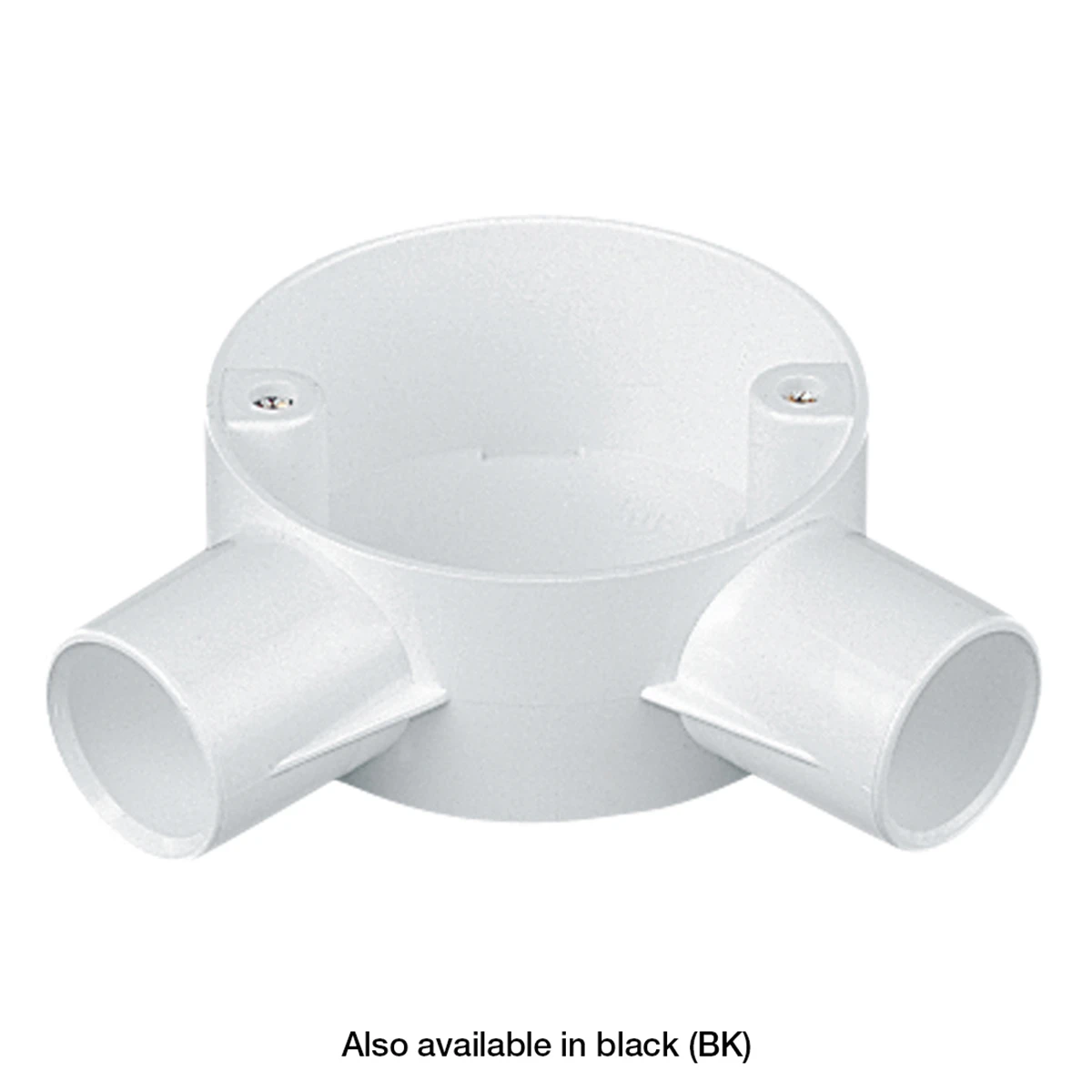

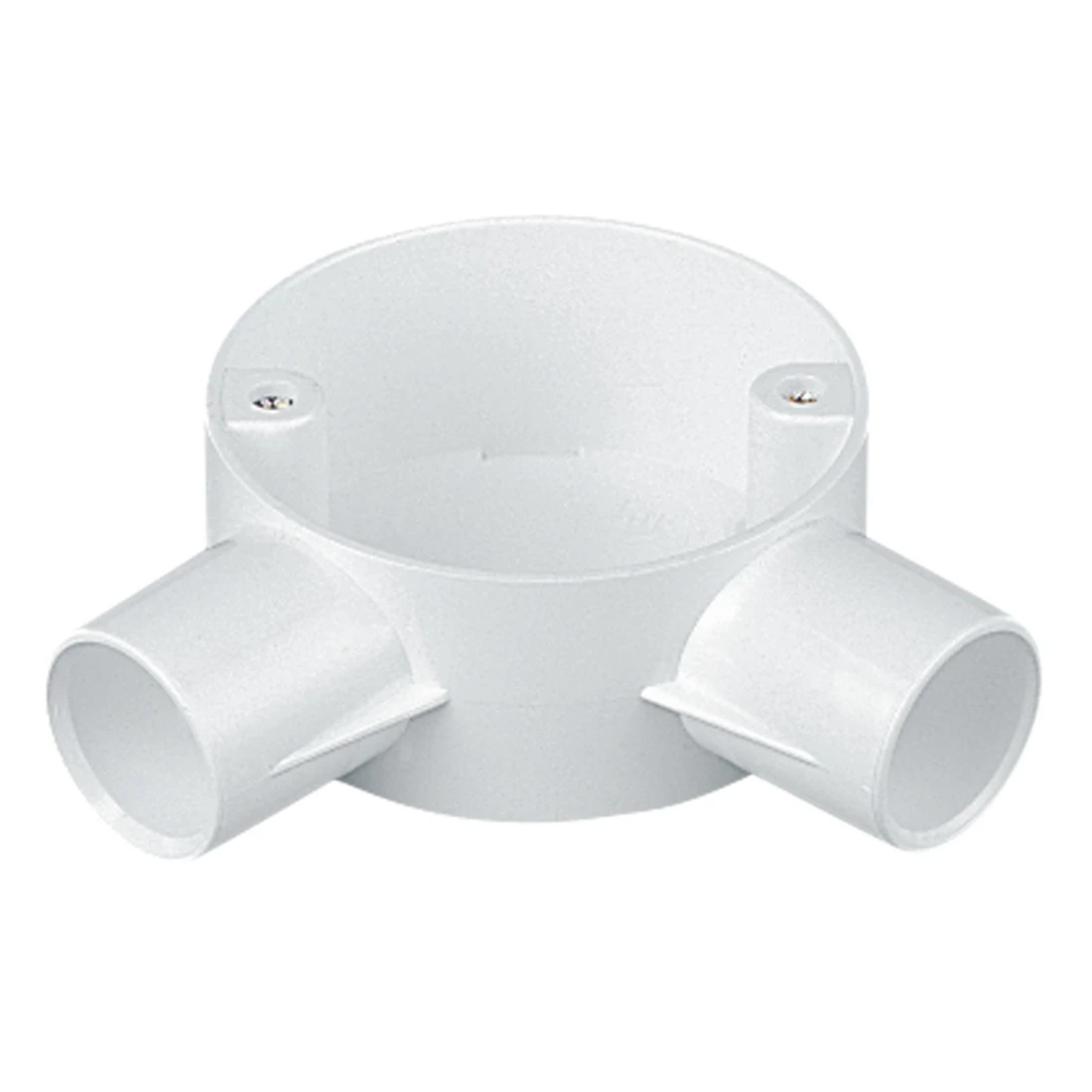

PVC-U 2-Way Angle Box 20mm White

£2.77 Incl. VAT

Circular angle box made up of a white polyvinyl chloride (PVC) housing body, designed for use as an accessory for electrical conduits. Suitable for use in industrial and commercial environments and is capable of suspending load of up to 3kg centrally at 6 · · · Durable and impact resistant · · Easy to assemble and install · · Fixing centre is 50.8mm and fitted with M4 brass insert. · · Provision for MET1 brass earth terminal · · All boxes have threaded brass inserts · · Manufactured using 100% recycled material

123 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2MRB4WH Categories: , , Brand: Part Number: 2500020978

Description

Technical Specifications  Technical Specifications Surface mounted box/housing Colour White Number of entry points 2 Material Plastic Transparent cover No Entry point on rear No Halogen free No Working temperature -5 – 60 °C Diameter 65 mm Depth 29 mm Max. conductor cross section – mm² Casting compound included No Mounting in the soil No Castable No Mounting under water No Tackable No Explosion-tested version No Weatherproof No With screening No Sealable No · Technical Data Sheet – Click to Download
