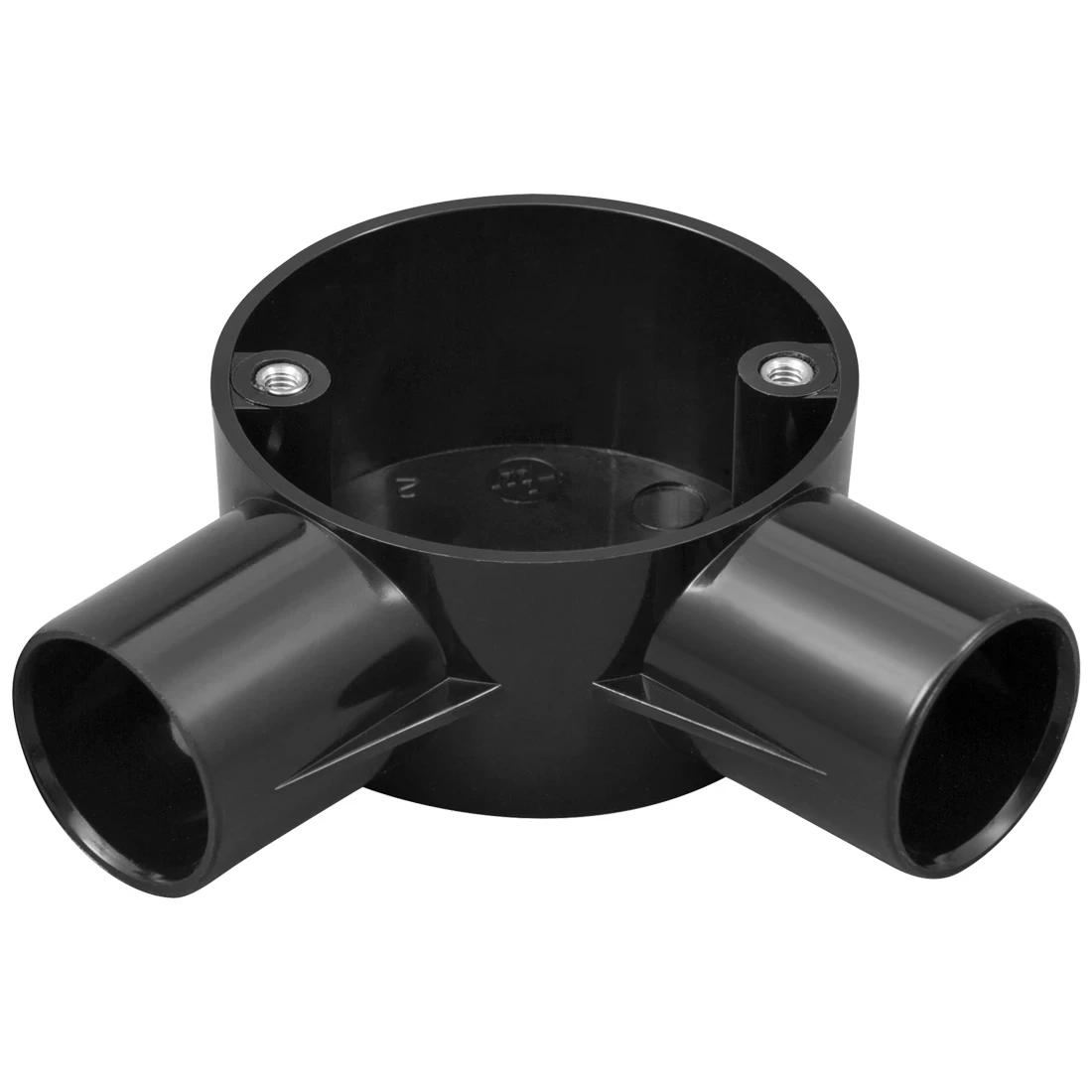

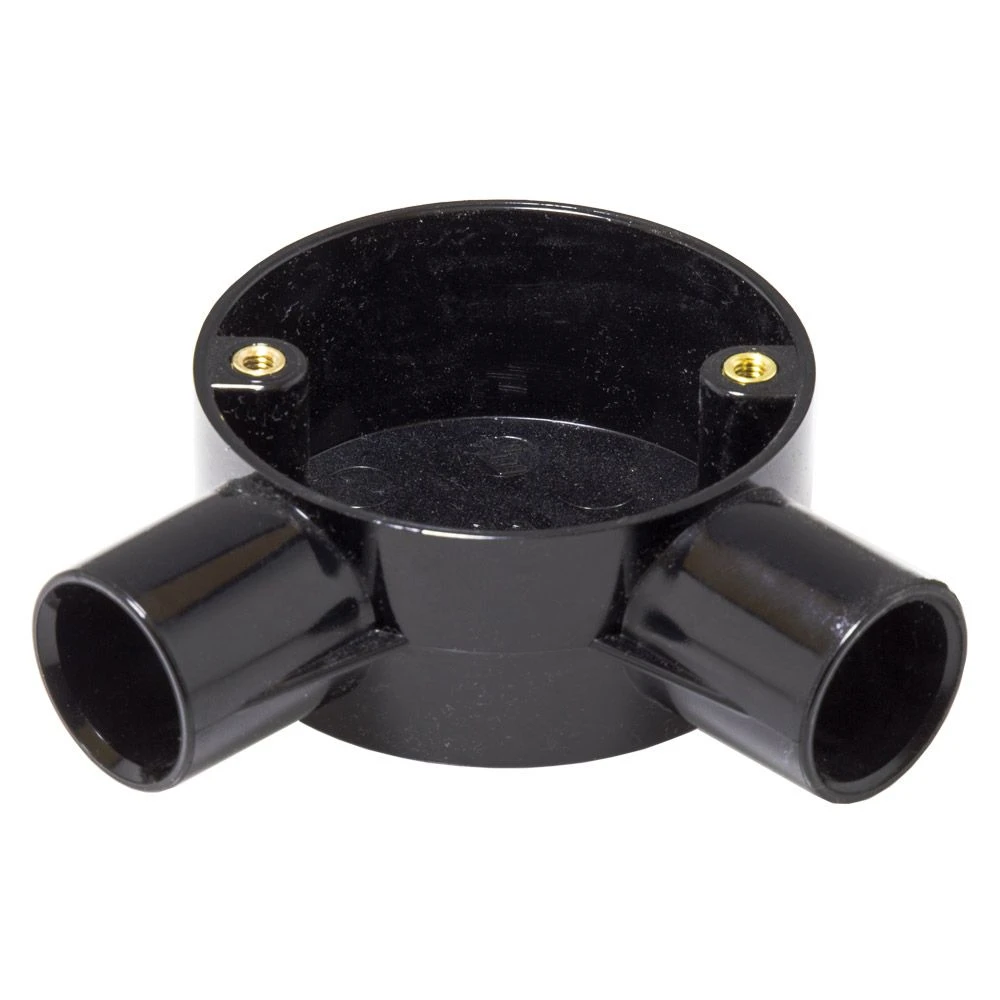

PVC-U 2-Way Angle Box 25mm Black
PVC-U 2-Way Angle Box 25mm Black
PVC-U 2-Way Angle Box 25mm Black - Image 2
PVC-U 2-Way Angle Box 25mm Black - Image 3

PVC-U 2-Way Angle Box 25mm Black

£3.88 Incl. VAT

Circular angle box made up of a black polyvinyl chloride (PVC) housing body, designed for use as an accessory for electrical conduits. Suitable for use in industrial and commercial environments and is capable of suspending load of up to 3kg centrally at 6 · · · Durable and impact resistant · · Easy to assemble and install · · Fixing centre is 50.8mm and fitted with M4 brass insert. · · Provision for MET1 brass earth terminal · · All boxes have threaded brass inserts · · Manufactured using 100% recycled material

47 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3MRB4BK Categories: , , Brand: Part Number: 2500019236

Description

Technical Specifications  Technical Specifications Surface mounted box/housing Colour Black Material Plastic Depth 32 mm Diameter 65 mm Max. conductor cross section – mm² Number of entry points 2 RAL-number (similar) 9005 Entry point on rear No Casting compound included No Mounting in the soil No Weatherproof No With screening No Tackable No Explosion-tested version No Working temperature -5 – 60 °C Castable No Mounting under water No Sealable No Halogen free No Transparent cover No · Technical Data Sheet – Click to Download
