RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 100mA 10kA
RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 100mA 10kA

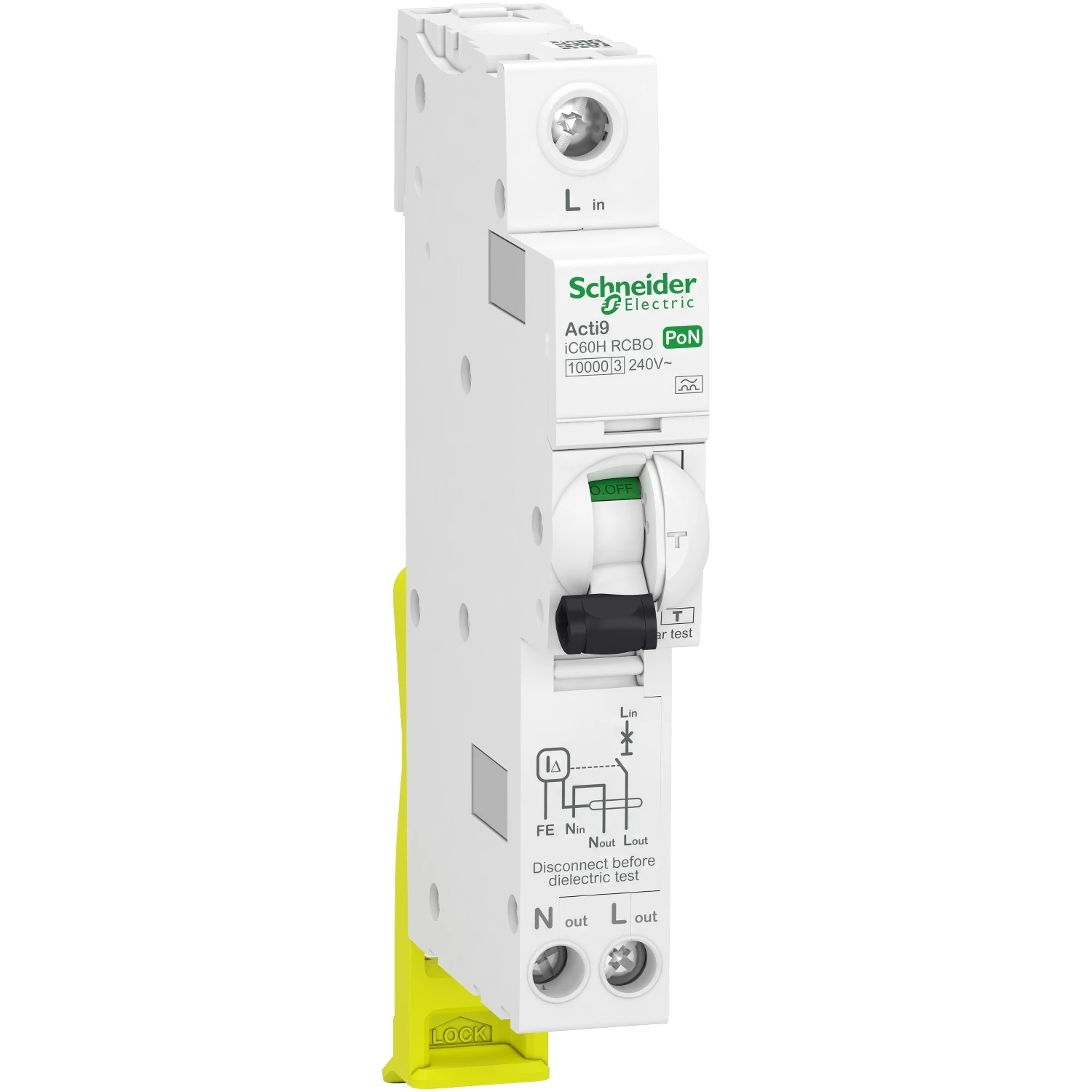

RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 100mA 10kA - Image 2
RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 100mA 10kA - Image 3

RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 16A 100mA 10kA

£227.39 Incl. VAT

The Schneider Electric Acti9 ic60H PoN RCBO is designed to be install to the Schneider Acti9 Isobar P PoN Distribution Boards only. This 16Amp 100mA C Type single pole, 240 volt RCBO has a 10KA rating (In) with a ‘Plug on Neutral’ and earth that reduces installation time and is available in 10 & 100mA. · · · Plug on neutral cuts installation time by 50% and provides enhanced safety and reliability · · Compact design is perfect for space-saving solutions · · Padlockable in ON/OFF positions · · Clip-on DIN rail mounting mode · · 20000 cycle mechanical durability · · 5000 cycle electrical durability · · Green Premium Product

11 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9D06816 Categories: , , Brand: Part Number: 2501108976

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Recess depth 72.00 mm Rated voltage 240.00 V Rated current 16.00 A Rated impulse-withstand voltage (Uimp) 4.00 kV Current limiting class 3.00 Width in number of modular spacings 1.00 Number of protected poles 1.00 Surge current capacity 0.25 kA Over voltage category 2.00 Connectable conductor cross section solid-core 1.00 – 25.00 mm² Rated short-circuit breaking capacity Icn according to EN 61009-1 10.00 kA Rated fault current 0.10 A Rated insulation voltage Ui 400.00 V Pollution degree 3.00 Number of poles (total) 2.00 Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Ambient temperature during operating -15.00 – 60.00 °C Concurrently switching N-neutral No With interlocking device No Suitable for flush-mounted installation No Anti-nuisance tripping version No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205383
