RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 20A 10mA 10kA
RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 20A 10mA 10kA
RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 20A 10mA 10kA - Image 2

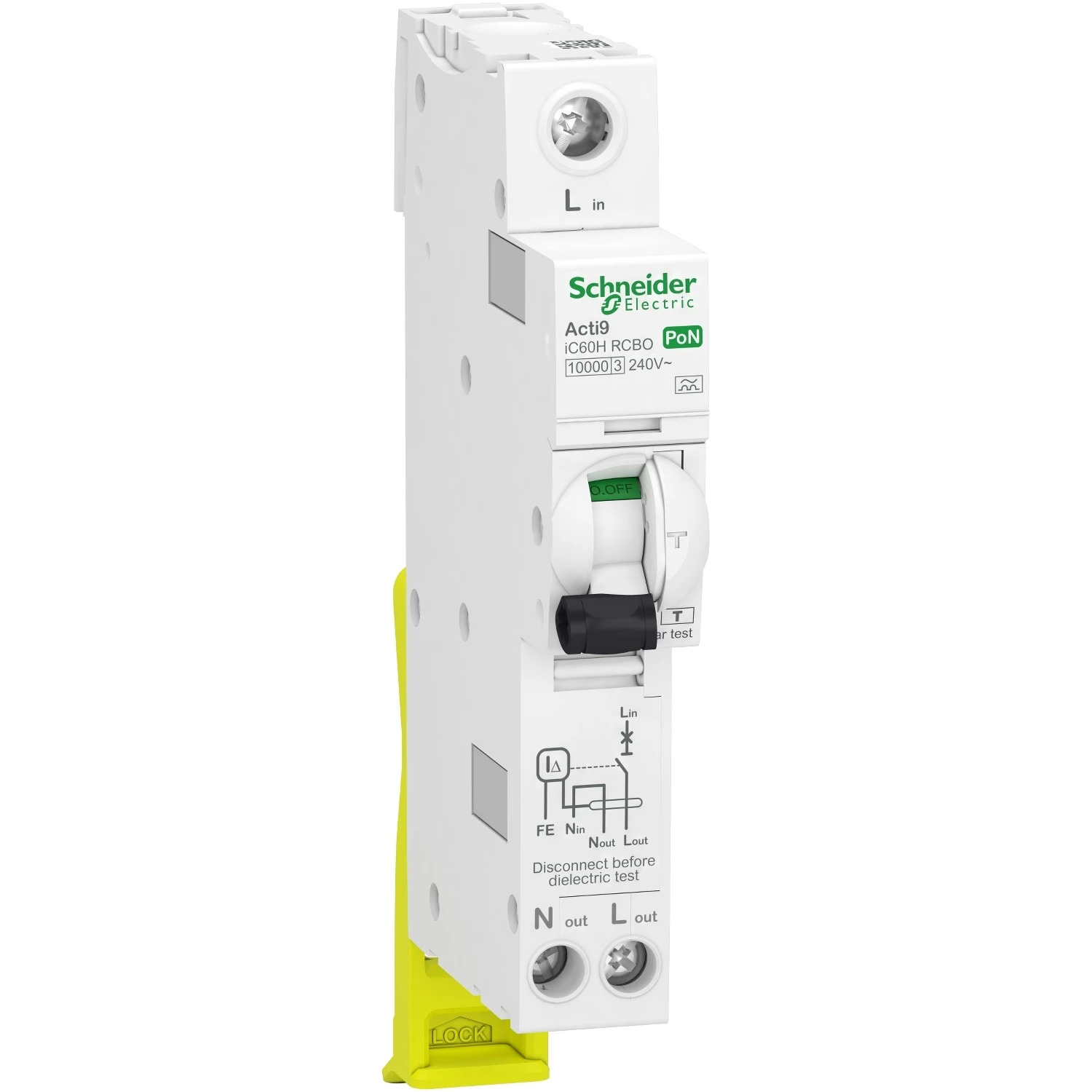

RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 20A 10mA 10kA - Image 3

RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 20A 10mA 10kA

£97.50 Incl. VAT

The Schneider Electric Acti9 ic60H PoN RCBO is designed to be install to the Schneider Acti9 Isobar P PoN Distribution Boards only. This 20Amp 10mA C Type single pole, 240 volt RCBO has a 10KA rating (In) with a ‘Plug on Neutral’ and earth that reduces installation time and is available in 10 & 100mA. · · · Plug on neutral cuts installation time by 50% and provides enhanced safety and reliability · · Compact design is perfect for space-saving solutions · · Padlockable in ON/OFF positions · · Clip-on DIN rail mounting mode · · 20000 cycle mechanical durability · · 5000 cycle electrical durability · · Green Premium Product

17 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9D01820 Categories: , , Brand: Part Number: 2501108999

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 20.00 A Tripping characteristic (type/curve) C Rated voltage 240.00 V Rated insulation voltage Ui 400.00 V Pollution degree 3.00 Rated impulse-withstand voltage (Uimp) 4.00 kV Rated fault current 0.01 A Recess depth 72.00 mm Width in number of modular spacings 1.00 Number of protected poles 1.00 Surge current capacity 0.25 kA Number of poles (total) 2.00 Current limiting class 3.00 Over voltage category 2.00 Rated short-circuit breaking capacity Icn according to EN 61009-1 10.00 kA Connectable conductor cross section solid-core 1.00 – 25.00 mm² Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Ambient temperature during operating -15.00 – 60.00 °C Concurrently switching N-neutral No Suitable for flush-mounted installation No Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205383
