RCBO SP Class A Type B 45A 30mA 10kA Plug-On
RCBO SP Class A Type B 45A 30mA 10kA Plug-On
RCBO SP Class A Type B 45A 30mA 10kA Plug-On - Image 2
RCBO SP Class A Type B 45A 30mA 10kA Plug-On - Image 3

RCBO SP Class A Type B 45A 30mA 10kA Plug-On

£88.07 Incl. VAT

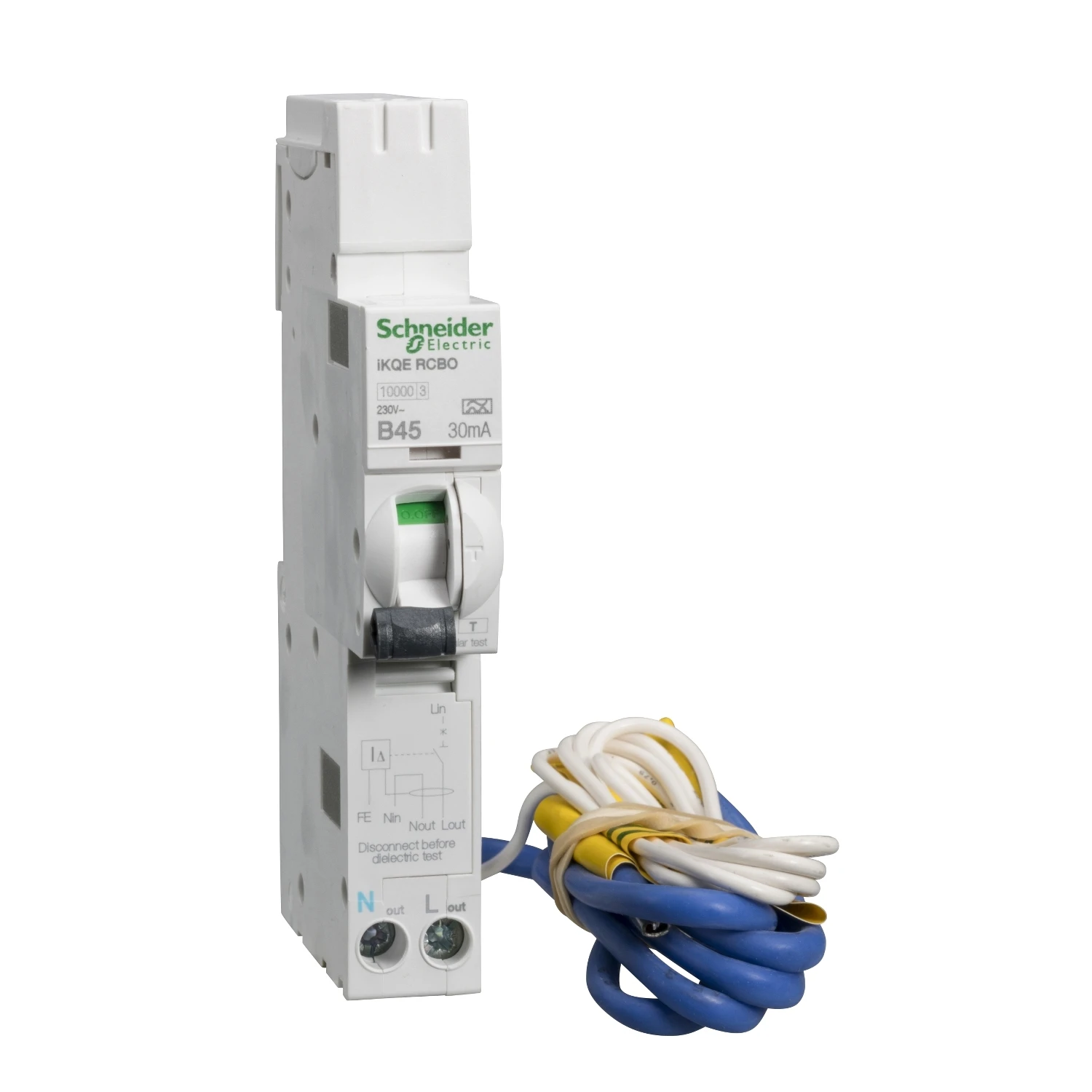

The Schneider LoadCentre KQ SEE145B03 is a 45 amp 30 milliamp single pole RCBO. This Schneider LoadCentre KQ RCBO has a click-in busbar for speed of installation and guaranteed connection, has a 10kA breaking capacity and has a trip free mechanism that operates even when the toggle is locked on. The LoadCentre KQ MCB’s are lockable in the on or off position and is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · Compatible with Loadcentre KQ B Type boards · · Other RCBO options available · · Fast installation with click-in busbar · · The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. · · Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. · · Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. · · Its fast closing mechanism independent of manual operation improves its service life. · · This product is compliant with IEC 61009-1 and IEC 61009-2-2 standard. · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 150VAC to 230VAC.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEE145B03 Categories: , , Brand: Part Number: 2500577524

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) B Pollution degree 3 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 2 Current limiting class 3 Rated insulation voltage Ui 400 V Rated voltage 230 V Rated current 45 A Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated fault current 0.03 A Number of protected poles 1 Surge current capacity 0.25 kA Number of poles (total) 2 Recess depth 70 mm Connectable conductor cross section solid-core 1 – 16 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral Yes Suitable for flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
