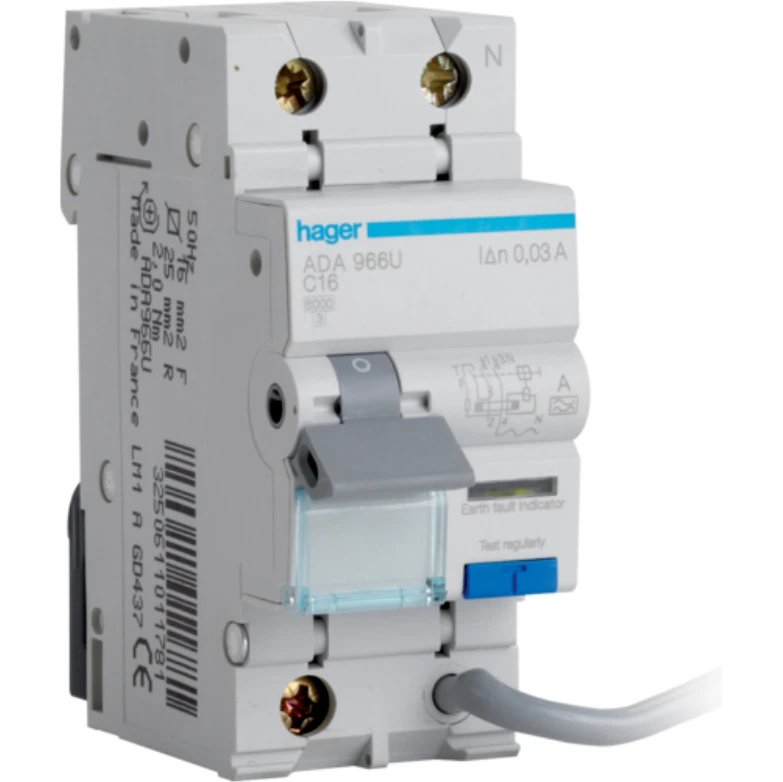

Hager RCBO SPSN Type C 16A 30mA 6kA 2 Module

The Hager 1 Pole + Neutral 6kA Type C 16A 30mA A Class RCBO is a high-quality, reliable residual current circuit breaker with overload protection. It is designed to protect your electrical circuits from overload, short circuit, and earth leakage.The RCBO is Type C, which means that it is suitable for applications where loads with high inrush currents are present, such as motors and fluorescent lights. It is also A Class, which means that it trips within 20ms in the event of an earth leakage current. This provides fast and effective protection for your electrical circuits and appliances. · · · Neutral position right · · Type of pole 1P+N · · Rated operational voltage Ue 240 V · · Rated insulation voltage 500 V · · Rated residual operating current 30 Ma · · Rated short circuit breaking capacity Icn under 230V AC according IEC60898-1 6 kA · · 5.2 W Total power loss under IN · · Operating temperature -25…40 °C
