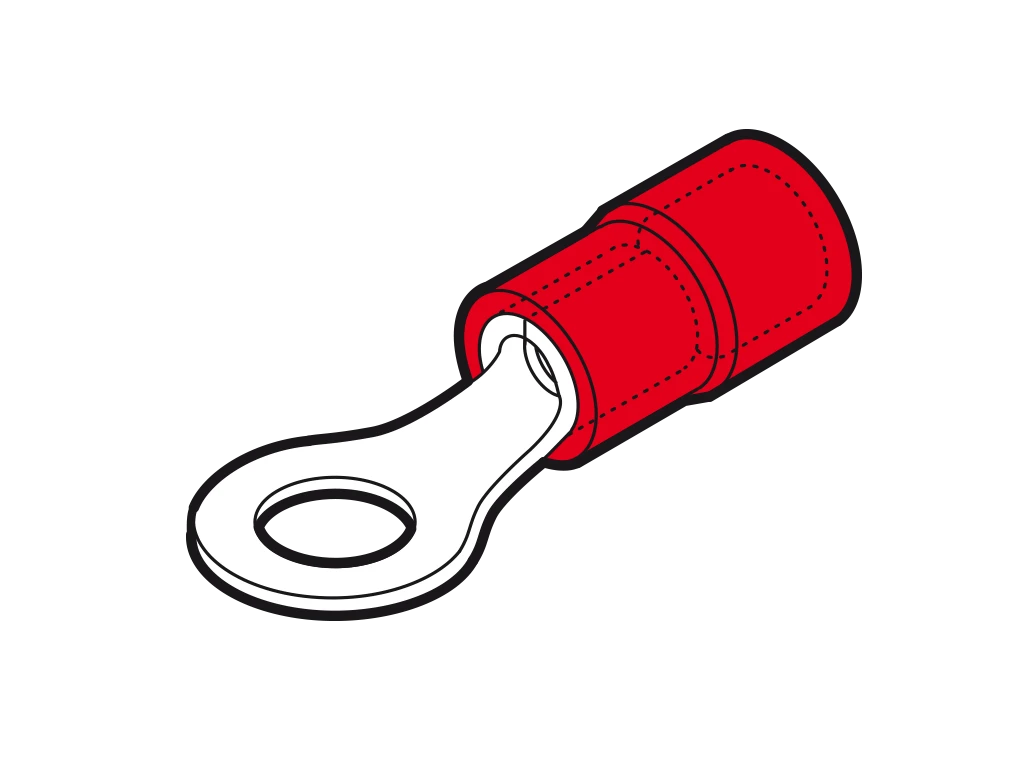

Ring Terminal Red
Ring Terminal Red

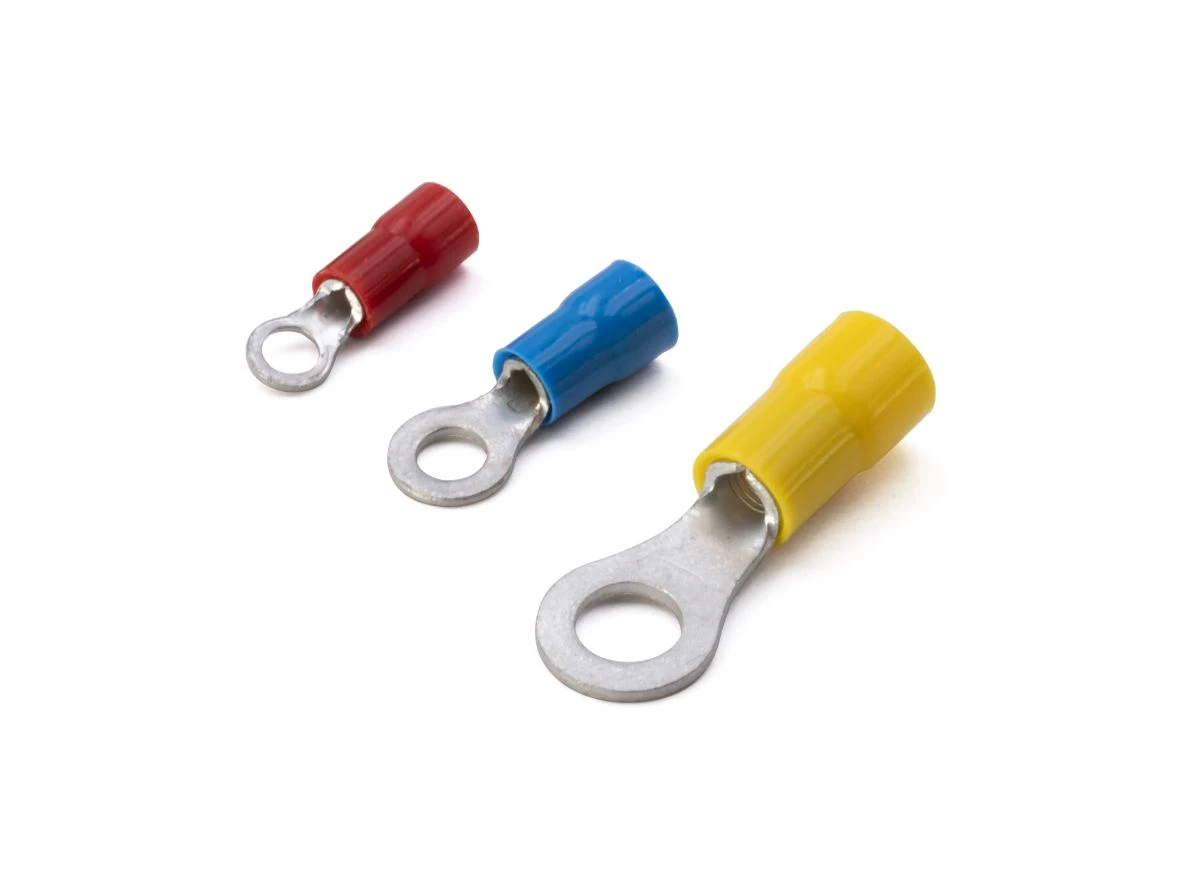

Ring Terminal Red - Image 2
Ring Terminal Red - Image 3
Ring Terminal Red - Image 4

Ring Terminal Red

£0.29 Incl. VAT

0.25mm²-1.5mm² PVC insulated ring terminal M10 stud red · · · PVC insulation · · -20°C to +80°C Temperature Range · · Manufactured from Electrolytic Copper Wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Annealed to guarantee optimum ductility · · Facilited Introduction of the conductor · · Hole/Stud Size: 10 mm · · Tab/Pin Size: 20.7 mm · · Insulation Material: PVC · · Diameter: 3.9 mm

300 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RF-M10 Categories: , , Brand: Part Number: 2500162464

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Material Copper Insulation Polyvinyl chloride (PVC) Sleeve form Short Nominal cross section 0.25 – 1.5 mm² Reel packaging No AWG-range 22 – 16 Bolt dimension (metric) 10 Max. current (Imax) – A Flange shape Ring shape Surface protection Tinned Colour insulation Red For pull protected connections No According to DIN No Suitable for solid cores No Suitable for round conductors Yes Useful for stranded conductors Yes Suitable for flat conductors No Suitable for fine strand conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No
