Schneider Electric Contactor 20A Single Pole 1 Normally Open 230Vac Ict Plus
Schneider Electric Contactor 20A Single Pole 1 Normally Open 230Vac Ict Plus

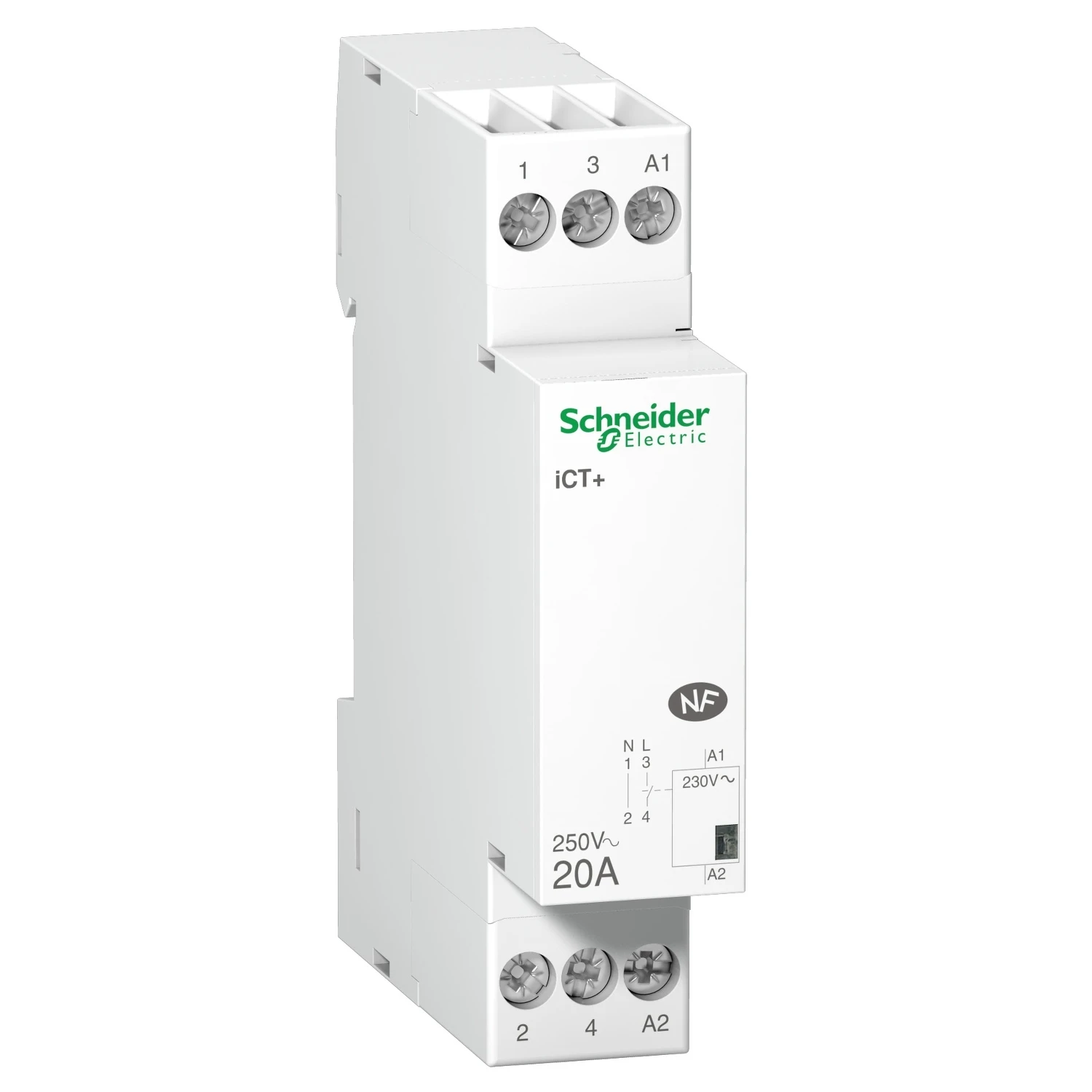

Schneider Electric Contactor 20A Single Pole 1 Normally Open 230Vac Ict Plus - Image 2

Schneider Electric Contactor 20A Single Pole 1 Normally Open 230Vac Ict Plus

£135.30 Incl. VAT

A9C15030 Schneider iCT plus 20A 1P Uc 230VAC · · · This Acti9 iCT+ is a low votage silent modular contactor. · · It is a 1P remote control device with 1 normally open contact. · · The rated current is 20A for AC-7a and 20A for AC-7b. The Ue rated operational voltage is 250VAC. The Uc control voltage is 230VAC. · · It is especially accurate for LED lighting control thanks to its crossing technology. · · This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9C15030 Category: Brand: Product Code: 2501225962

Description

Technical Specifications  Technical Specifications Contactor for distribution board installation Number of contacts as normally open contact 1.00 Number of contacts as normally closed contact 0.00 Max. load fluorescent lamp (Duo circuit) – VA Max. load fluorescent lamp (parallel compensated) 3700.00 VA Max. load fluorescent lamp 3700.00 VA Max. incandescent lamp load 3700.00 W Rated operation current 20.00 A Recess depth 43.50 mm Rated excitation voltage 230.00 – 230.00 V Rated operating voltage 250.00 – 250.00 V Slider for hand switch No Additional equipment possible No · Technical Data Sheet – Click to Download
