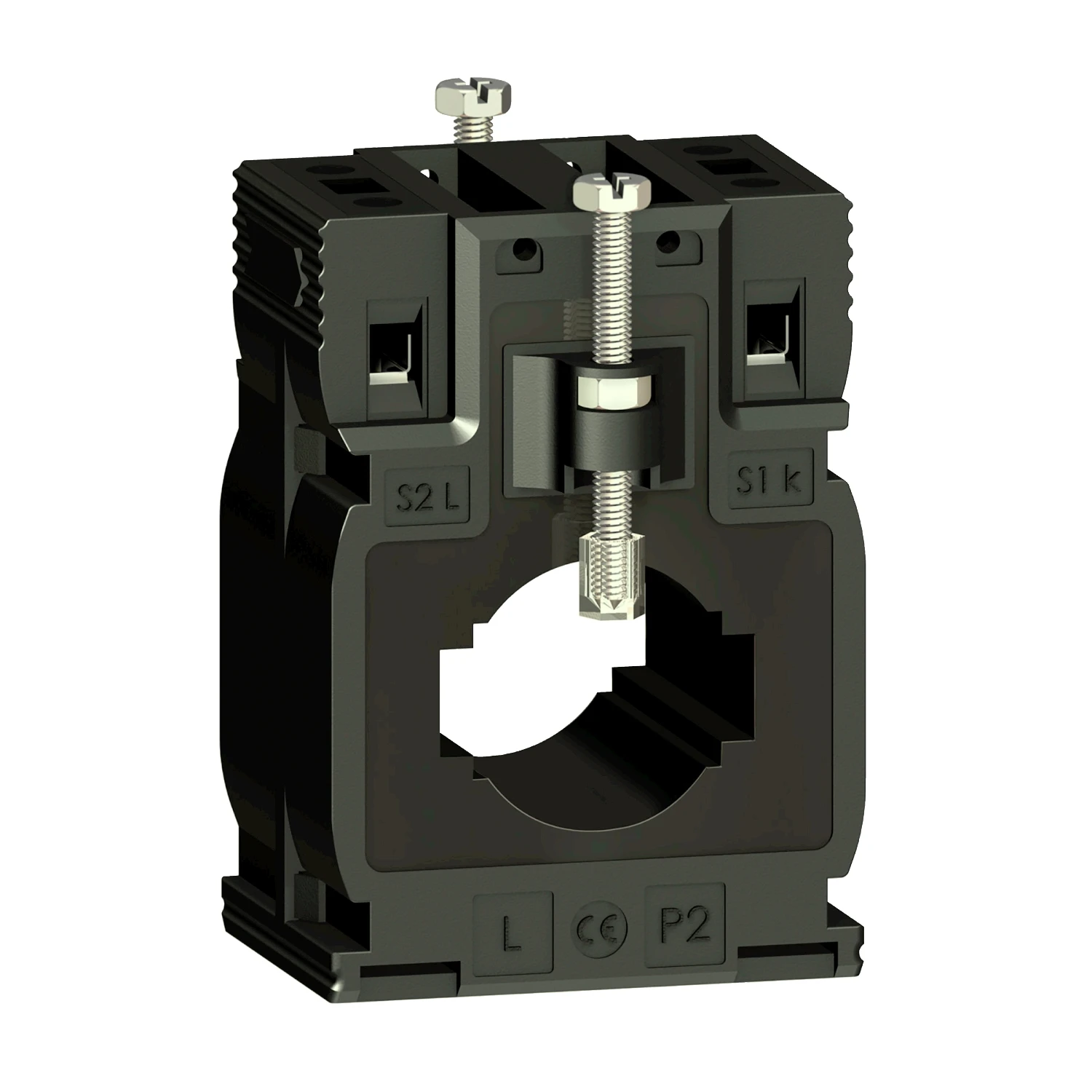

Schneider Electric Current transformer tropicalised DIN mount 400 5 cables d. 27, bars 10

This current transformer, tropicalised for busbar and cable, has a line rated current of 400 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 27 mm. Compatible with a double output for bar: 32.5 mm x 10.5 mm or 25.5 mm x 15.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 10 VA, class 1 maximum power: 12 VA. · · · This current transformer, tropicalised for busbar and cable, has a line rated current of 400 A and a secondary current rating of 5 A. · · This current transformer allow a maximum cable outer diameter of 27 mm. · · Compatible with a double output for bar: 32.5 mm x 10.5 mm or 25.5 mm x 15.5 mm. · · Burden and accuracy class as follows: class 0.5 maximum power: 10 VA, class 1 maximum power: 12 VA.
