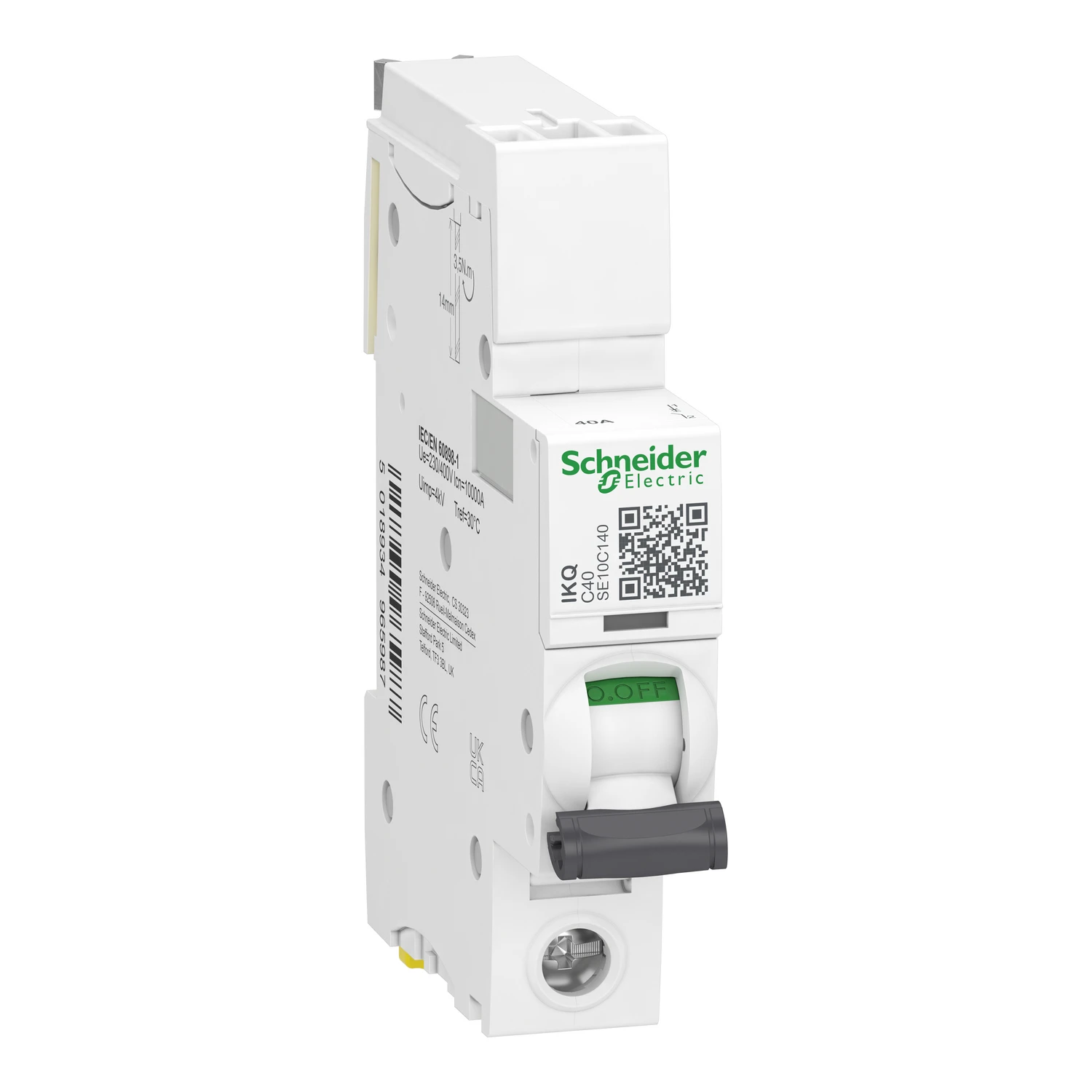

Schneider MCB SP Type C 40A 10kA
£17.22 Incl. VAT
Acti9 iKQ 1P 40A C Miniature Circuit breaker · · · This Acti9 iKQ product is a low voltage miniature circuit breaker (MCB). · · The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. · · The Icn rated short circuit breaking capacity is up to 10000A at 240VAC conforming to EN/IEC 60898-1 standard. · · This product is compliant with EN/IEC 60898-1 standard. · · This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. · · The trip free mechanism operates even when the toggle is locked on. · · There is a positive contact indication to be guaranteed with on/off indication. · · Safety Feature – Throughout Offer · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC.
11 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 40 A Recess depth 78.5 mm Tripping characteristic (type/curve) C Current limiting class 3 Number of poles (total) 1 Pollution degree 2 Number of protected poles 1 Rated insulation voltage Ui 440 V Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Over voltage category 3 Rated voltage 240 V Width in number of modular spacings 1 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 35 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 60 °C Suitable for flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible Yes · Technical Data Sheet – Click to Download
