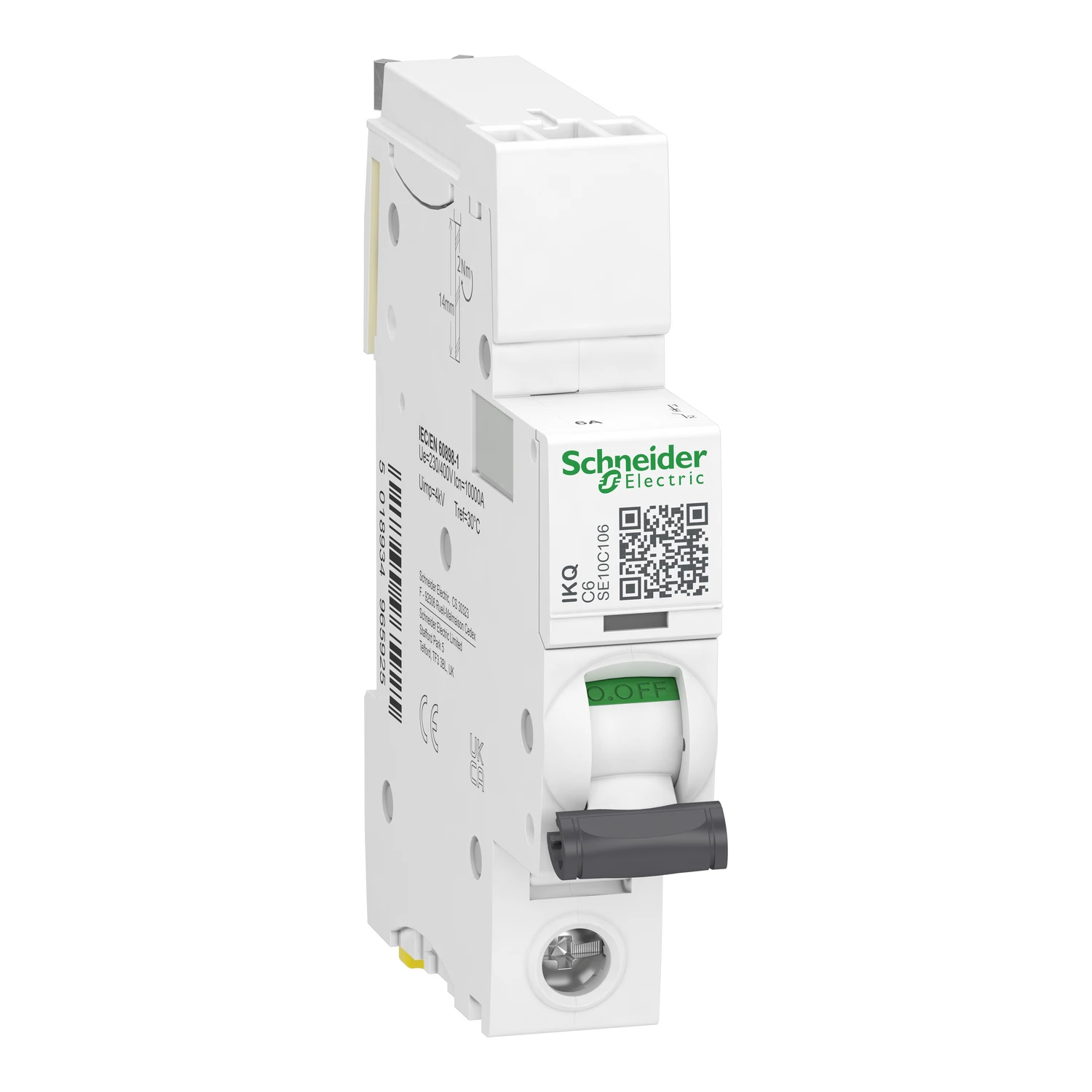

Schneider MCB SP Type C 6A 10kA
£17.39 Incl. VAT
Acti9 iKQ 1P 6A C Miniature Circuit breaker · · · Let through energy classification of 3 (lowest let through energy giving best cable protection classification) · · Positive contact indication (guaranteed on/off indication) · · Trip free mechanism operates even when the toggle is locked on · · Lockable in the ON or OFF position · · Speed of connection of Plug-On devices – guaranteed connection Plug-On devices · · For use in LoadCentre KQ A and B boards · · Thermo-magnetic trip unit technology · · White Colour · · Network type AC
24 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 6 A Rated voltage 240 V Recess depth 78.5 mm Width in number of modular spacings 1 Tripping characteristic (type/curve) C Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 2 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of poles (total) 1 Number of protected poles 1 Rated insulation voltage Ui 440 V Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 60 °C Suitable for flush-mounted installation No Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
