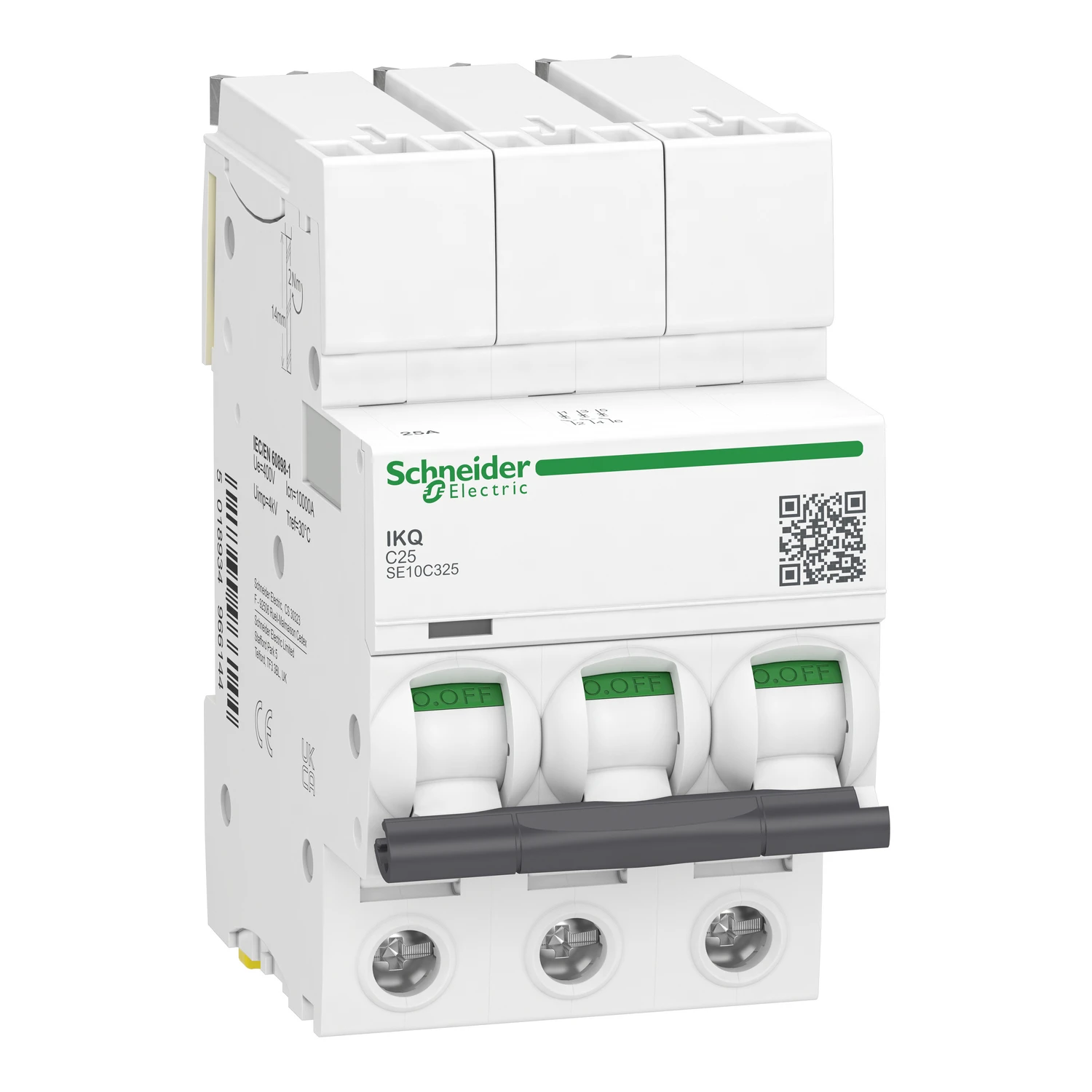

Schneider Electric MCB iKQ Triple Pole Type C 25A 10kA
Schneider Electric MCB iKQ Triple Pole Type C 25A 10kA
Schneider Electric MCB iKQ Triple Pole Type C 25A 10kA - Image 2
Schneider Electric MCB iKQ Triple Pole Type C 25A 10kA - Image 3

Schneider Electric MCB iKQ Triple Pole Type C 25A 10kA

£84.10 Incl. VAT

This Schneider LoadCentre KQ MCB has a click-in busbar for speed of installation and guaranteed connection, has a 10kA breaking capacity and has a trip free mechanism that operates even when the toggle is locked on. The LoadCentre KQ MCB’s are lockable in the on or off position and is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · BSEN60898-1 Compliant · · 10kA Breaking Capacity · · Speed of connection of Plug-On devices – guaranteed connection Plug-On devices · · For use in LoadCentre KQ A and B boards · · Network type AC · · The trip free mechanism operates even when the toggle is locked on. · · There is a positive contact indication to be guaranteed with on/off indication. · · Trip free mechanism operates even when the toggle is locked on · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 440VAC.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SE10C325 Categories: , , Brand: Product Code: 2500577557

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated current 25 A Recess depth 78.5 mm Rated voltage 415 V Number of protected poles 3 Rated insulation voltage Ui 440 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Width in number of modular spacings 3 Number of poles (total) 3 Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Rated impulse-withstand voltage (Uimp) 4 kV Current limiting class 3 Over voltage category 3 Pollution degree 2 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 60 °C Additional equipment possible Yes Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
