Schneider Electric Merlin Trip Unit 3P 100A
Schneider Electric Merlin Trip Unit 3P 100A
Schneider Electric Merlin Trip Unit 3P 100A - Image 2
Schneider Electric Merlin Trip Unit 3P 100A - Image 3
Schneider Electric Merlin Trip Unit 3P 100A - Image 4

Schneider Electric Merlin Trip Unit 3P 100A

£118.14 Incl. VAT

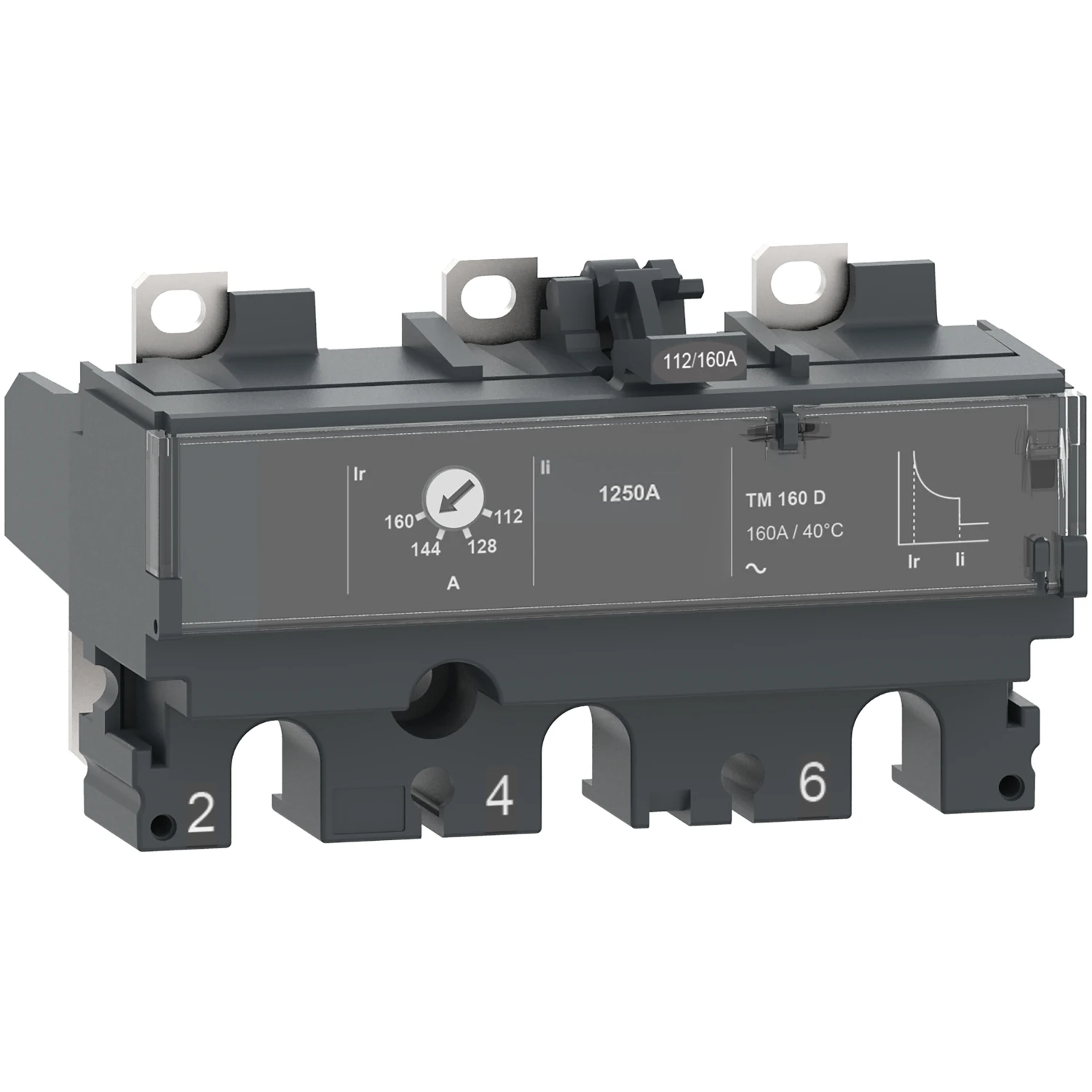

This TM100D is a 3 poles 3d thermal-magnetic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 100A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame. · · · Schneider Electric green signature style for the entire ComPacT range · · Estimated 40% reduction of wiring time for panel builders · · Experience easier installation thanks to a new ergonomic front-plate design · · Gain the confidence that all auxiliaries are on the right spot, and check that you have the right coil rating · · Ergonomic new toggle for easier breaker manual operation

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C103TM100 Categories: , , Brand: Product Code: 2501491459

Description

Technical Specifications  Technical Specifications Trip block for power circuit-breaker Type of motor protection Thermal/magnetic release Short-circuit release function Undelayed Voltage type (operating voltage) AC Rated permanent current Iu 100 A Number of poles 3 Depth 88.2 mm Height 60.6 mm Width 104.7 mm Number of auxiliary contacts as change-over contact 0 Rated switch current 100 A Number of auxiliary contacts as normally open contact 0 Overload release current setting 70 – 100 A Number of auxiliary contacts as normally closed contact 0 Supply voltage AC 60 Hz – – – V Supply voltage DC – – – V Operating voltage at AC 50 Hz 690 – 690 V Operating voltage at AC 60 Hz 690 – 690 V Operating voltage at DC – – – V Current setting undelayed short-circuit release 800 – 800 A With ground fault protection function No External power supply required No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205407
