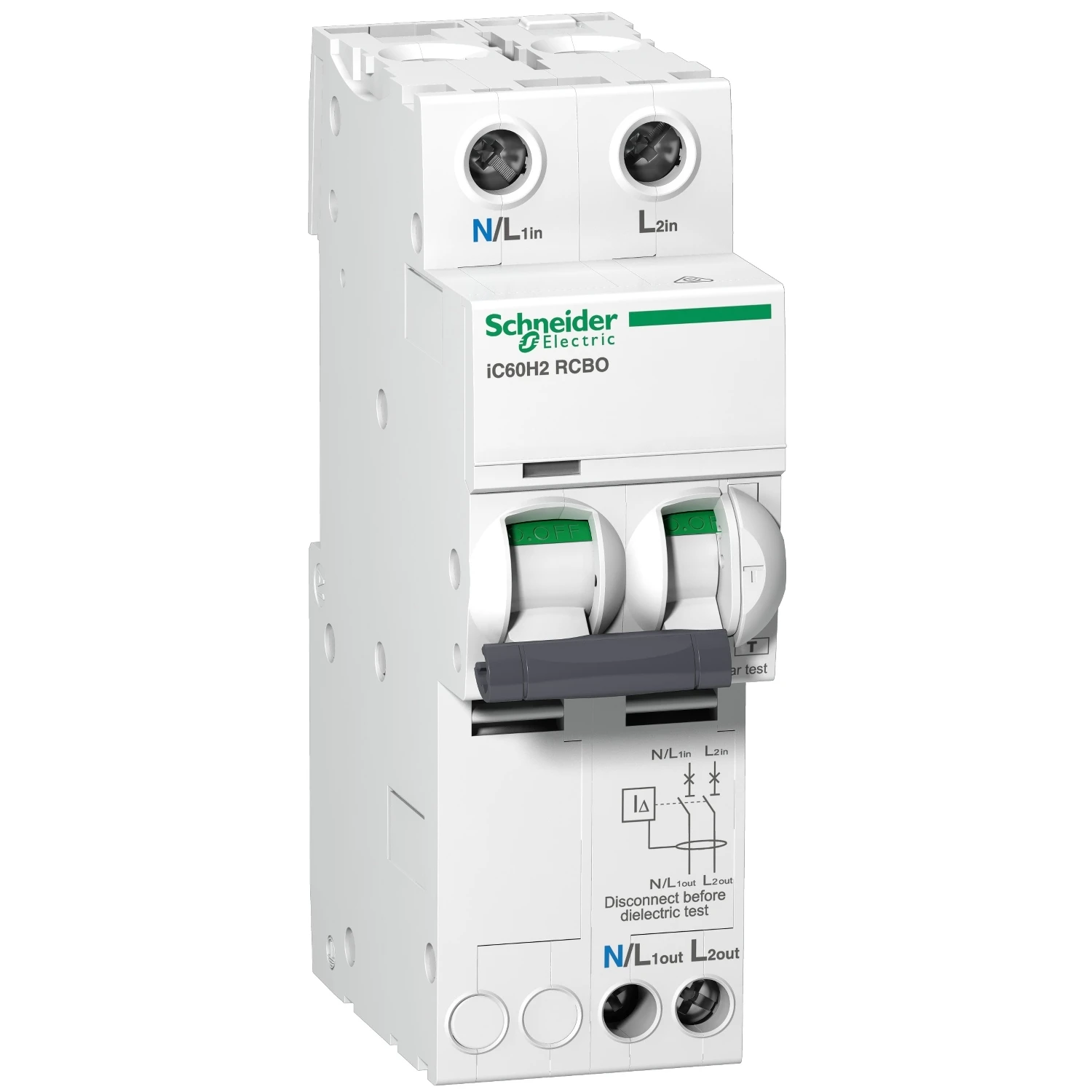

Schneider RCBO iC60H2 Double Pole Curve C Type A 10A 30mA

A9D11210 iC60H2 10A DP RCBO C Curve 30mA Type A 240V. The 2-pole iC60H2 RCBOs self-contained residual current device carries out b complete protection of final circuits: protection against short-circuits and cable overloads, protection of persons against electric shock by direct contact (30 mA sensitivities). iC60H2 RCBO switches neutral, together with phase. It is therefore suitable for all circuits, whatever the earthing system (except for TN-C). · · · This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). · · It is a 2P circuit breaker with 2 protected poles, In rated current of 10A and C tripping curve. · · The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. · · The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. · · Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. · · Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. · · Its fast closing mechanism independent of manual operation improves its service life. · · This product is compliant with AS/NZS 61009.1 and IEC 61009-1 standard. · · It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC.
