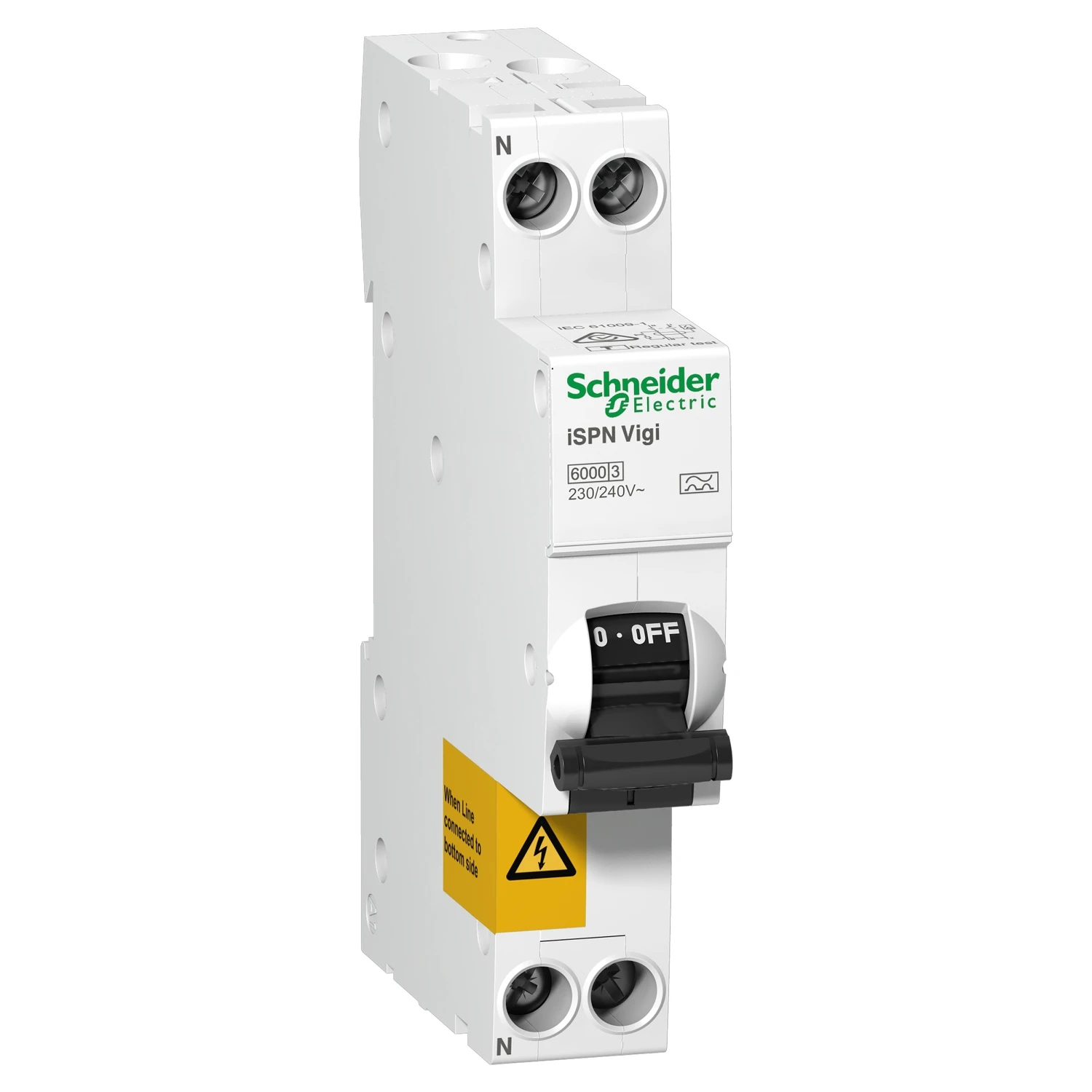

Schneider RCBO Single Pole +Neutral Vigi Curve C Type A 10A 30mA
£204.20 Incl. VAT
ISPN VIGI C 10A 1PN 30MA 6000A A RCBO · · · This iSPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). · · It is a 1P+N circuit breaker with 1 protected pole and 10A In rated current and C tripping curve. · · The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. · · The Icn rated short circuit breaking capacity is up to 6000A according 0 standard. · · This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. · · Its earth fault indicator on front face allows quick identification of the type of default. · · A push-test button T is positioned on the front of the device for testing that product is operational. · · This product is compliant with AS/NZS 61009.1 and IEC 61009-2-2 standard. · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 240VAC.
16 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Recess depth – mm Tripping characteristic (type/curve) C Rated current 10 A Rated insulation voltage Ui 400 V Rated voltage 240 V Number of protected poles 1 Number of poles (total) 2 Rated fault current 0.03 A Width in number of modular spacings 2 Rated impulse-withstand voltage (Uimp) 4 kV With interlocking device Yes Concurrently switching N-neutral No Ambient temperature during operating -25 – 55 °C Connectable conductor cross section multi-wired 1 – 10 mm² Connectable conductor cross section solid-core 1 – 16 mm² Rated short-circuit breaking capacity according to EN 61009 6 kA Current limiting class 3 Suitable for flush-mounted installation No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
